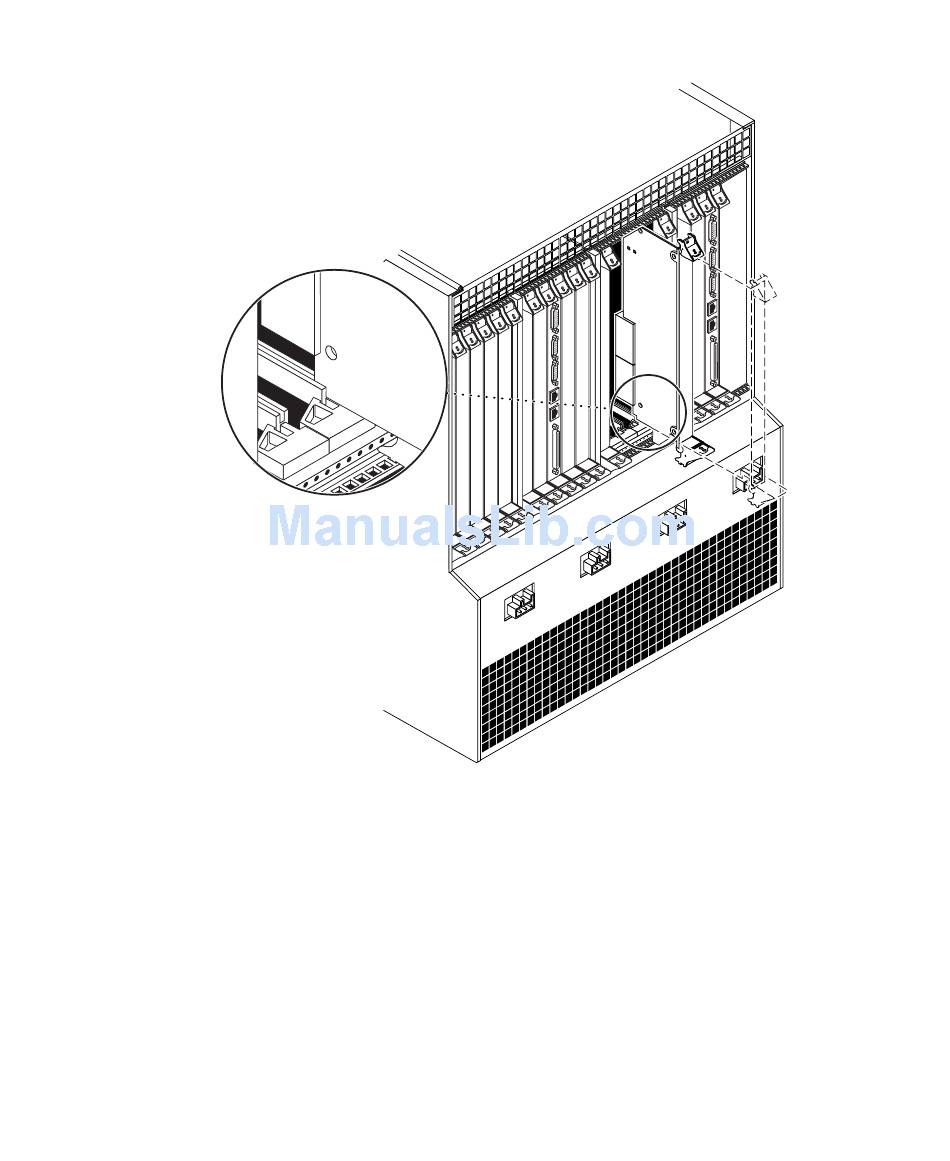

Aligning the Card With the Rear Card Cage Cutouts
FIGURE 5-10
7. Lock the ejection levers.
The method you use to lock the ejection levers varies depending on the model of the
ejection lever used on the card. Refer to the documentation that came with the I/O
card for instructions on locking the ejection levers.
8. Using a No. 2 Phillips screwdriver, tighten the two captive screws inside the card's
ejection levers, one on top and one on the bottom (
Tighten the screws to a torque of 0.28 N.m (2.5 in.-lb).
9. Get the front I/O card from the ship kit.
Chapter 5 Installing Additional Cards into the Netra ct Server
).
FIGURE 5-7
53
