Figure 6-29 Cpu Rear Transition Card (Cpu Rtc) Location In A Netra Ct 800 Server (Top View); Figure 6-30 Cpu Rear Transition Card (Cpu Rtc) Location In A Netra Ct 400 Server (Top View) - Sun Microsystems Netra ct Installation Manual

Front of
chassis
FIGURE 6-29
Front of
chassis
FIGURE 6-30
88 Netra ct Server Installation Guide • September 2002
Hard disk drives
CPU card (slot 1)
Front I/O card (slot 2)
Front I/O card (slot 3)
Front I/O card (slot 4)
Front I/O card (slot 5)
Front I/O card (slot 6)
Front I/O card (slot 7)
Alarm card (slot 8)

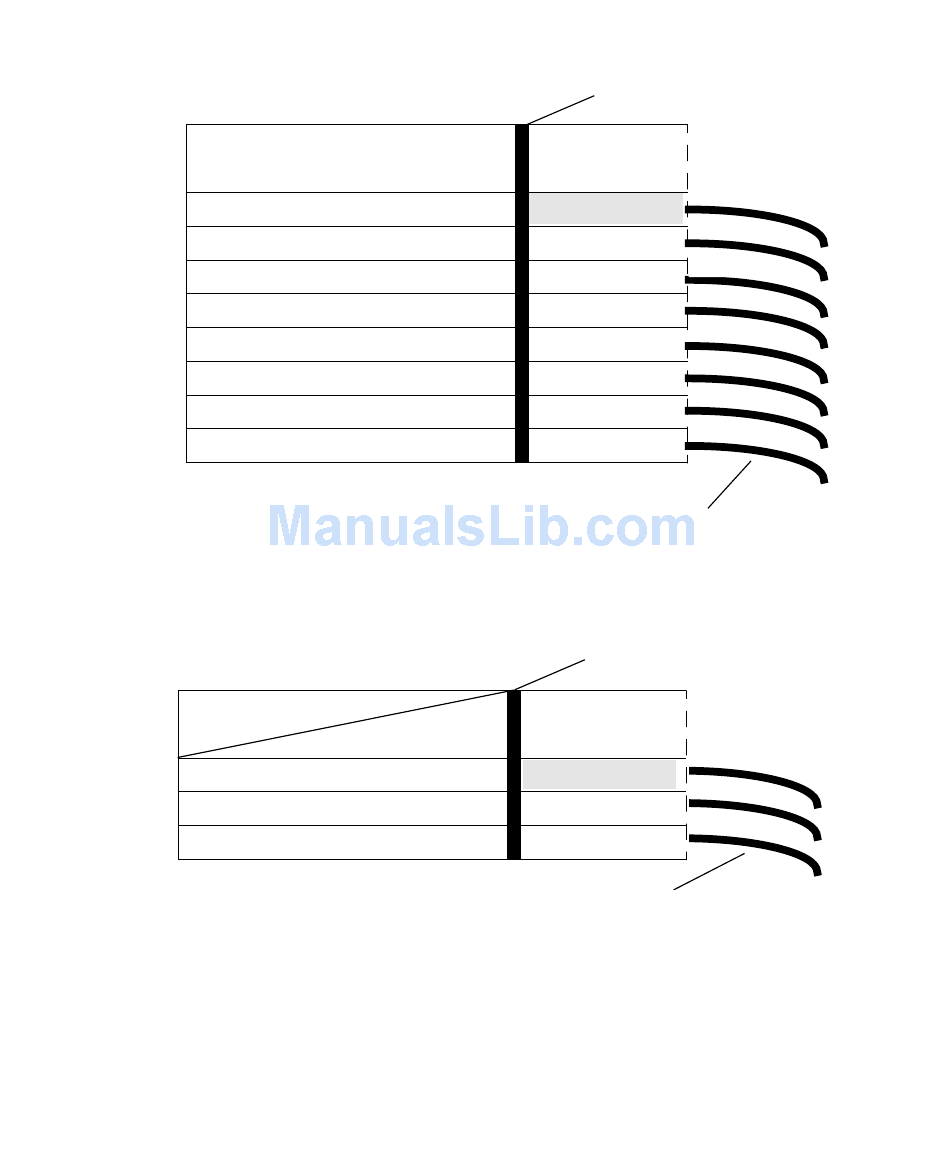

CPU Rear Transition Card (CPU RTC) Location in a Netra ct 800 Server (Top
View)
Double-wide 3U
alarm card
CPU card (slot 3)
I/O card (slot 4)
I/O card (slot 5)
CPU Rear Transition Card (CPU RTC) Location in a Netra ct 400 Server (Top
View)
Hard disk drive
Midplane
Rear of
chassis
CPU RTC
I/O RTC
I/O RTC
I/O RTC
I/O RTC
I/O RTC
I/O RTC
Alarm RTC
Cables
Midplane
Rear of
chassis
CPU RTC
I/O RTC
I/O RTC
Cables
