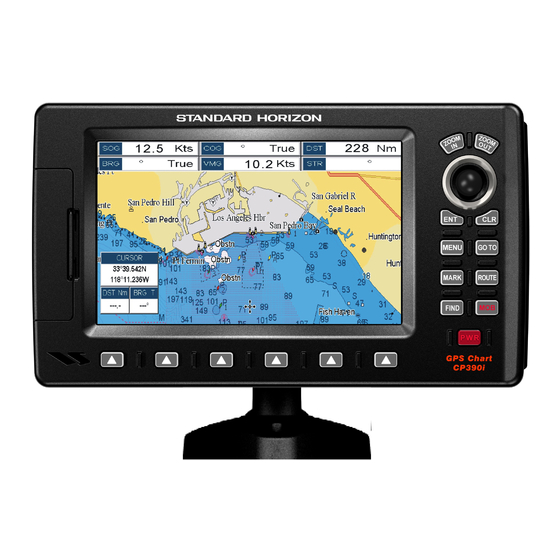

Summary of Contents for Standard Horizon CPF390i
- Page 2 CP390i - GPS Chart Plotters CPF390i - GPS Chart Plotters/Fish Finder Owner's Manual...
- Page 3 Consult an authorized STANDARD HORIZON dealer or other qualified service technician if the problem cannot be corrected. Operation is subject to the following...
- Page 4 · The GPS Chart Plotter contains dangerous high-voltage circuits which only experien- ced technicians can handle. · STANDARD HORIZON will not be liable for errors contained herein, or for incidental or consequential damages in connection with the performance or use of this material.
-
Page 5: Table Of Contents
CONNECTIONS ..................... 17 2.4.0 CP390i Connection Table ................18 2.4.1 CP390i Connections .................. 18 2.4.2 CPF390i Connection Table ................ 20 2.4.3 CPF390i Connections ................20 BATTERY CONNECTIONS ................... 21 NMEA CONNECTIONS ..................21 GPS POSITION ON A VHF RADIO ............... 22 CP390i: OPTIONAL BLACK BOX FISH FINDER .......... - Page 6 CHANGING THE NAME OF A ROUTE ..............69 CREATING AN OLYMPIC ROUTE ................ 69 MAKING ADDITIONAL ROUTES ................70 CREATING A ROUTE USING MARKS ON THE CHART PAGE ......70 INSERTING A WAYPOINT INTO A ROUTE ............71 CP390i and CPF390i Page 7...
- Page 7 NMEA TREND PAGES ................95 12.9 VHF DIGITAL SELECTIVE CALLING ............96 12.9.0 Interfacing ..................96 12.9.1 Distress Call ................. 96 12.9.2 Position Request ................97 13. ADVANCED SETTINGS ....................98 13.0 INPUT/OUTPUT (NMEA, AIS, RADAR) ..............98 Page CP390i and CPF390i...
- Page 8 16.4.0 Delete PTX ....................112 16.4.1 Goto PTX ....................112 16.4.2 The MOBILARM Alarm Status List ............113 17. FISH FINDER for CPF390i .................... 115 17.0 ENABLE/DISABLE ....................115 17.1 UNDERSTANDING THE FISH FINDER PAGE ........... 116 17.1.1 Understanding the Fish Finder display ............ 117 17.2 DISPLAYING THE FISH FINDER PAGE .............
- Page 9 19.0.3 Serial Ports ....................135 20. SPECIFICATIONS ......................136 20.0 CP390i/CPF390i SPECIFICATIONS ..............136 20.1 CPF390i FISH FINDER SPECIFICATIONS ............136 20.2 CP390i/CPF390i DIMENSIONS ................137 20.3 OPTIONAL FF525 FISH FINDER SPECIFICATIONS (use with CP390i) ... 137 20.4 OPTIONAL WAAS GPS RECEIVER SPECIFICATIONS ........138 21.
-
Page 10: Introduction
714-827-7600 or email to marinetech@yaesu.com. GENERAL INFORMATION The CP390i (with internal GPS antenna) and CPF390i (with internal GPS antenna and Fish Finder) are precision-crafted high-performance receivers for the Global Positioning System (WAAS GPS) constellation of satellites that provide precise location data with a host of navigation features and are ideal for nautical use and sealed against water ingress. -
Page 11: Packing List
4kW 36 Mile 23.5” diameter Radome antenna MDS-10-4 4kW 48 Mile 4FT Open Array MDS-10-5 4kW 48 Mile 5FT Open Array NOTE For additional information, refer to the Radar Installation and Radar Operation Manuals located at www.standardhorizon.com. Page 12 CP390i and CPF390i... -
Page 12: Optional Accessories
OPTIONAL ACCESSORIES CP390i and CPF390i Page 13... -
Page 13: Installation
The CP390i and CPF390i are designed to be bracket and flush mounted. However when bracket mounting the CP390i and CPF390i in an area where satellite reception is not possible with the internal antenna or when flush mounted, the optional GPS antenna must be installed. -
Page 14: Flush Mounting
Figure 2.1 - Example of Bracket installation FLUSH MOUNTING The CP390i and CPF390i are supplied with a flush mount template for the cutout hole and screw holes required to install the GPS Chart Plotter. NOTE Before drilling holes make sure there is enough room to mount the GPS Chart Plotter and there are no obstructions. -
Page 15: Mounting The Optional External Gps Antenna
Figure 2.2.0 - Mounting Screws MOUNTING THE OPTIONAL EXTERNAL GPS ANTENNA An external WAAS GPS antenna is available when the CP390i and CPF390i is flush mounted or mounted in an area where satellite reception is not possible with the internal antenna. -
Page 16: Connections
Battery Ground CONNECTIONS The CP390i and CPF390i have connectors that allow them to be connected to a power supply, optional WAAS GPS antenna, optional FF525 50/200kHz Black Box Fish Finder (only for CP390i) and NMEA devices* such as Optional Video Camera, VHFs, AIS Receiver, Digital Instruments and Autopilots. -
Page 17: Cp390I Connection Table
Default is NMEA-0183 White Port5 Output Connect to Input of NMEA devices* Default is NMEA-0183 with GLL, RMB, RMC and XTE sentences Yellow NOTE* RS232 not opto-isolated electrical interface 2.4.1 CP390i Connections 2.4.1.0 DC Power Connection Page 18 CP390i and CPF390i... - Page 18 The Input and Output baud rate for each Port is set using the Advanced Setup>In/Out Connections menu. For example if Port1 is set for AIS 38400, the Input Port operates at 38400 baud and the Output Port is disabled. NOTE* RS232 not opto-isolated electrical interface. CP390i and CPF390i Page 19...
-
Page 19: Cpf390I Connection Table
[ENT] or move the ShuttlePoint knob to the right. 5. Move the ShuttlePoint knob up/down to select AIS 38400 and press [ENT] or move the ShuttlePoint knob to the right. 2.4.2 CPF390i Connection Table 12VDC Power Pin Wire Color Description Connection Example... -
Page 20: Battery Connections
Input and Output both operate at 38400 baud. 2.4.3.2 AIS Setup The CPF390i has to be set up to be able to receive NMEA information from the AIS receiver. The GPS Chart Plotter reads the AIS NMEA message VMD, type 1, 2, 3 and 5. Select the used port and transmission speed by following the procedure: 1. -
Page 21: Gps Position On A Vhf Radio
*Connect to NMEA Output (if available) * Some manufacturers of DSC VHF’s are not capable of outputting NMEA DSC and DSE sentences to the CP390i or CPF390i. Refer to the Owner’s Manual and confirm the VHF can output NMEA DSC and DSE sentences. -
Page 22: Personal Computer Connections
GPS Chart Plotter is connected to. Example: A VHF radio is connected but the radio is not receiving a GPS Position. Usually the VHF radio will be connected to the Green and Brown wires. To check to see if the GPS Chart Plotter is transmitting the sentences: CP390i and CPF390i Page 23... -
Page 23: Video Input
2.12 VIDEO INPUT By accessing this menu it is possible to see images on the CP390i or CPF390i display from an external video signal source, if connected to the CP390i or CPF390i. It allows the "picture-in-picture" functionality, so a Video Input image can be shown on a window and placed over the Chart, Navigation, Highway, Celestial and NMEA pages image at full screen. - Page 24 See next section for details of setting up the switching times. If the user agrees to proceed, the image from the Video Input and the CP390i or CPF390i page will be shown intermittently. The intermittence time is selected by Switching Timeout item.
-
Page 25: Demo Mode (For Dealer Use)
Navigation page, Highway page, Celestial page, NMEA Display page. NOTE This mode is used by dealers to promote the features of the CP390i or CPF390i when on a retail shelf. The Demo Mode can be selected from the Simulation Menu following the procedure: 1. -
Page 26: Controls And Indicators
CONTROLS AND CONNECTIONS The CP390i or CPF390i is controlled by using the keys located on the front panel. These labeled keys are dedicated to specific functions. As you press a key, a single audio beep confirms the key action; every time a key press is not valid, three rapid beeps sound to indicate that the key action is not valid. -
Page 27: The Soft Keys
Power On, Off and ShuttlePoint Knob operation 1. Press and hold [PWR] until the display shows the Start-Up page (see the following picture). To turn Off, press and hold [PWR] until the display turns Off. Page 28 CP390i and CPF390i... - Page 28 Figure 3.1.0 - Example of Start-Up page on CPF390i 2. When the power is first turned on two pages the Start-Up page and the Caution pages are briefly shown before the GPS Status page. Figure 3.1.0a - Caution pages NOTE The Caution page on the left is shown only if the data C-CARD is over one year old.
-
Page 29: Cursor Vs. Home Mode
To change from Cursor Mode to Home Mode press [CLR]. 3.1.2 Cursor and Menu selection speed The CP390i and CPF390i allow you to control the speed the cursor moves when the ShuttlePoint knob is pressed. To change the speed: Figure 3.1.2 - Cursor Speed Menu... -
Page 30: Changing The Ship Icons
3.1.4 Changing the Backlight and Contrast With the CP390i and CPF390i turned on, briefly press [PWR] to show the backlight and contrast popup window. Move the ShuttlePoint knob to the left or right to adjust the LCD backlight intensity or up or down to change the LCD contrast. Press [ENT] to set. -
Page 31: Selecting North Up Or Course Up
5. Press [CLR] or move the ShuttlePoint knob to the left to exit the menu and show the Chart page. NOTE When the CP390i and CPF390i are in Course Up mode a small arrow icon will be shown on the Chart page indicating North. - Page 32 6. Next move the ShuttlePoint knob to highlight DAYLIGHT SAVING and press [ENT] or move the ShuttlePoint knob to the right. 7. Daylight Saving menu has 3 options: 7.1 OFF Select Off when your location does not recognize Daylight Savings Time; CP390i and CPF390i Page 33...
-
Page 33: Selecting Loran Td Or Other Coordinate System
Example: Y/Z change to Z/Y. CHANGING THE CHART COLOR The CP390i and CPF390i have preprogrammed settings allowing you to customize the look of the Chart page. The default is Sunlight, however there are other settings: Classic, NOAA, Night and Normal. Night is very useful during evening hours so not to impair night vision. -
Page 34: Selecting Language
4. Another popup window will be shown with the available languages, move the Shuttle- Point knob to the desired language and press [ENT] or move the ShuttlePoint knob to the right. Figure 3.5 - Language Selection Menu CP390i and CPF390i Page 35... -
Page 35: Selecting Pages Using Soft Keys
FULL PAGE, 200kHz FULL PAGE, 50kHz/CHART PAGE or 200kHz/CHART PAGE. Also when a SI-TEX Radar antenna is connected (USA O ), any Soft Key can be customized to show Radar pages, RADAR FULL, RADAR/CHART, RADAR OVERLAY and RADAR/FISH FINDER. Page 36 CP390i and CPF390i... -
Page 36: Settings In General Setup Menu
Classic uses vivid chart colors presentation. NOAA allows setting NOAA paper chart colors presentation. Night is recommended when the environment is dark in order to reduce the glare of the display. The GPS Chart Plotter displays charts and screen in CP390i and CPF390i Page 37... - Page 37 By default when the cursor is moved a window is shown with the Lat/Lon Distance and Bearing from the vessels location to the cursor. This selection allows the window to be turned On (default) or Off. The Cursor Window is automatically disabled when General is set in Windows Setup option. Page 38 CP390i and CPF390i...
-
Page 38: About Page
ShuttlePoint knob to the right. 3. The Information page appears on the screen (see the previous Figure). 4. Press [CLR] or move the ShuttlePoint knob to the left to exit and show the Chart page. CP390i and CPF390i Page 39... -
Page 39: Find Services
FIND SERVICES USING FIND SERVICES & MORE FUNCTIONS The CP390i and CPF390i have a dedicated [FIND] key that allows searching the optional C-MAP B /MAX C-CARD for Port Services, Ports, Tide Stations, Wrecks, EPPESEN Obstructions, Points Of Interest, Lakes, User Points, GPS Coordinates or Information on any point on the chart. -
Page 40: Port
4. Move the ShuttlePoint knob to highlight the desired Tide Station and press [ENT]. 5. Another window will be shown detailing the selected Tide Station information. 6. Press [CLR] to show the actual position of the Tide Station on the Chart page. CP390i and CPF390i Page 41... -
Page 41: Wrecks
4. Move the ShuttlePoint knob to highlight the desired Wreck and press [ENT]. 5. Another window will be shown detailing the Wreck information. 6. Press [CLR] to show the actual position of the Wreck on the Chart page. Page 42 CP390i and CPF390i... -
Page 42: Obstructions
Information. The available MAX Lake CARDs are: NA-M017 USA: North; NA-M018 USA: East;NA-M019 USA: South; NA-M020 USA: West; NA-M029: Alaska; NA-M048: Canada. 1. Press [FIND]. 2. Move the ShuttlePoint knob to highlight LAKES INFORMATION and press [ENT] or move the ShuttlePoint knob to the right. CP390i and CPF390i Page 43... - Page 43 For example, see the following picture: Figure 4.0.5.0 - Example of Lakes info When the cursor is placed over the icon, the icons of the available services are shown: Figure 4.0.5.0a - Quick Info: available services Page 44 CP390i and CPF390i...
-
Page 44: Lakes By Name
4. Move the ShuttlePoint knob to highlight the desired Lake. Otherwise press [MENU] to enter the desired Lake name. A window will be shown: move the ShuttlePoint knob to highlight the edit of Lake name and press [ENT] to accept: another popup window will CP390i and CPF390i Page 45... -
Page 45: Points Of Interest
Mark. 5. Once the name of the desired Mark reads in the (Select Name) window, press [ENT] to show the location the Mark on the Chart page. Page 46 CP390i and CPF390i... -
Page 46: Coordinates
Info Tree and the lower side contains the expanded information. While moving the ShuttlePoint knob through the Info Tree, all the relevant information of the selected object is shown on the lower part of the page. CP390i and CPF390i Page 47... - Page 47 4. Press [CLR] again at any time to return your cursor to your vessel’s position. Figure 4.0.10 - Find Information Page 48 CP390i and CPF390i...
-
Page 48: Max Cartography Overview
5.0.0 Coverage areas and details Figure 5.0.1 - Coverage Area The CP390i and CPF390i have Built-In Charts for coastal navigation of USA including Alaska, Hawaii and Great Lakes, Canada, Bahamas, Caribbean, Cuba, Puerto Rico, and Central America which include: a. Depth Contours and Spot Soundings to 66Ft (20Mt) on lower scale charts and 33Ft (10Mt) on higher scale charts b. -
Page 49: Inserting The Optional Max C-Card
Figure 5.1a - Inserting C-CARD (details) NOTE The small connector below the C-CARD is only used by STANDARD HORIZON repair technicians. Key points are: Data Features · ISO Certification (electronic chart production process with quality certification) - Page 50 · Safety Status Bar (status bar with six boxes to show the status of certain functions. Any warning or alarm condition is identified by the red color to indicate possible risk) · Safety Route Check (sophisticated function that checks for dangerous objects along your navigation route) CP390i and CPF390i Page 51...
-
Page 51: Map Functions
[ZOOM IN]/[ZOOM OUT] push (press and hold) causes an expansion or compression of the chart image, without a chart level change. Figure 6.0.0 - Zoom Type Page 52 CP390i and CPF390i... -
Page 52: Icon Size
6.0.2 Place Name Size On MAX charts it is possible to set the size of all names drawn on the charts, selecting between Standard (default), Medium and Large size. CP390i and CPF390i Page 53... -
Page 53: Perspective View
[ENT]. 2. Move the ShuttlePoint knob to highlight MAX FUNCTIONS and press [ENT] or move the ShuttlePoint knob to the right. 3. Move the ShuttlePoint knob to highlight PERSPECTIVE VIEW and press [ENT] or move Page 54 CP390i and CPF390i... -
Page 54: Dynamic Nav-Aids
5. Move the ShuttlePoint knob to select the selection and press [ENT]. 6. Press [CLR] until the menu disappears or an easier method is to press the ShuttlePoint knob to the left a few times. CP390i and CPF390i Page 55... -
Page 55: Satellite Imagery
5. Move the ShuttlePoint knob to select the selection and press [ENT]. 6. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint knob to the left until the Chart page is shown. Page 56 CP390i and CPF390i... -
Page 56: Currents Prediction
1. Press [MENU], move the ShuttlePoint knob to highlight SETUP MENU and press [ENT]. 2. Move the ShuttlePoint knob to highlight MAX FUNCTIONS and press [ENT] or move the ShuttlePoint knob to the right. 3. Move the ShuttlePoint knob to highlight CURRENTS PREDICTION and press [ENT] or CP390i and CPF390i Page 57... -
Page 57: Chart Language
6.0.8 Chart Language The CP390i and CPF390i may be customized to show the local language of the chart. To select the Chart Language you want: 1. Press [MENU], move the ShuttlePoint knob to highlight SETUP MENU and press [ENT]. -
Page 58: How To Show The Pictures Or Diagrams Of A Object
When the picture is shown, it is possible to fit it to screen by pressing [ENT], to change the contrast by pressing [ZOOM IN] or [ZOOM OUT] and to display the next picture associated, if any, by moving the ShuttlePoint knob left or right. CP390i and CPF390i Page 59... -
Page 59: Enhanced Port Info
Additional attributes of Port Areas and Port Marinas have been included as Location, Country, Region, State, Harbour master telephone number etc., see the following figure. Figure 6.0.10 - Example of enhanced Port Info Page 60 CP390i and CPF390i... -
Page 60: Creating Marks
If a Mark has previously been created and you wish to Edit it, move Cursor over the top of the Mark. 1. After a Mark is created press [E ] to show the edit popup window. CP390i and CPF390i Page 61... -
Page 61: Deleting A Mark Or Waypoint
1. Move the ShuttlePoint knob over the Mark or Waypoint you want to move. 2. Press [M 3. Use the ShuttlePoint knob to move the cursor. A dotted line, connecting the previous Waypoint position to the new position, is shown: Figure 7.1.1 - Moving Mark or Waypoint (1) Page 62 CP390i and CPF390i... -
Page 62: Marks/Waypoints List
Receives points from an external device (PC) that is capable of sending NMEA WPL sentence. NOTE* The SEND and RECEIVE functions are used to receive or transmit User Points (Marks and Waypoints) to and from a Personal Computer (see also Par. 2.9). Figure 7.2 - Example of Marks/Waypoints List CP390i and CPF390i Page 63... -
Page 63: Creating A New Mark With The User Points List
After entering in all the Marks it is a good practice to backup the points to a User C-CARD. Refer to Section 11. GOTO CURSOR, ROUTE AND MARK The CP390i and CPF390i can easily be set to start navigating to the cursor on the Chart page, a saved Mark or a Route that was created. GOTO CURSOR 1. - Page 64 7. To stop navigation, press [GOTO] and a Warning window is shown. Move the ShuttlePoint knob to highlight STOP and press [ENT]. Figure 7.4c - Warning window CP390i and CPF390i Page 65...
- Page 65 5. You will notice a circle is drawn around the Icon Symbol. This means the GPS Chart Plotter is now navigating to the point. 6. Press [CLR] to switch to the Chart page or Highway page to start navigating to the point. Page 66 CP390i and CPF390i...
-
Page 66: Man Over Board (Mob) Function
During navigation, the “MOB” feature provides a one-touch method of storing a location, such as a point were a crew member fell overboard. In this mode, the CP390i or CPF390i places a MOB point on the Chart page and all the navigation data shown is related to navigating back to this point, allowing you to retrace your path to the MOB point efficiently. -
Page 67: Routes
ROUTES The CP390i and the CPF390i have the capability to store 50 Routes with 100 Waypoints or Marks in each Route. A Route can consist of Waypoints or Marks. The difference is when a Route is made using Waypoints and the Route is deleted the Waypoints are also deleted. -
Page 68: Changing The Name Of A Route
5. Repeat steps 3 and 4 until all Waypoints are entered into the Route. 6. Then move the ShuttlePoint knob to the last Waypoint. Figure 9.2 - Olympic Route creation (1) 7. Press [O ]. A line joins the starting Waypoint and the last Waypoint. LYMPIC CP390i and CPF390i Page 69... -
Page 69: Making Additional Routes
7. Move the ShuttlePoint to highlight EDIT ROUTE and press [ENT] or move the ShuttlePoint knob to the right. 8. Move the ShuttlePoint knob to highlight NAME and press [ENT] or move the Shuttle- Point knob to the right. A popup window will be shown. Page 70 CP390i and CPF390i... -
Page 70: Inserting A Waypoint Into A Route
1. Move the ShuttlePoint knob to an open position (no buoy, warning etc. under the cursor) on the Chart page. 2. Press [GOTO] to show the GOTO popup window. 3. Move the ShuttlePoint knob to highlight ROUTE and press [ENT]. 4. The SELECT ROUTE popup window will be shown. CP390i and CPF390i Page 71... -
Page 71: Using The Shuttlepoint Knob
4. A Warning message appears to confirm. Move the ShuttlePoint knob to highlight YES and press [ENT]. The Route has been deleted. WARNING An active Route (one that you are navigating to) cannot be deleted until you stop navigating to the Route. Page 72 CP390i and CPF390i... -
Page 72: Other Settings In Route Menu
The Route Check function is used after you have created a Route to ensure you and your vessel will not have problems while navigating. This is done by the CP390i and CPF390i by reviewing the Route and looking for the following hazards that may effect safe navigation. - Page 73 (like DSC, MOB, Mark). In the case of checking a single point towards which the navigation is started, the leg for which the Route Check is executed is defined by the current position (the leg’s starting point) and the destination point (the leg’s ending point). Page 74 CP390i and CPF390i...
-
Page 74: Tracks
The Track function can be setup to lay down a Track for a predetermined time or distance interval. If you have a fast moving boat you may want to setup the CP390i or CPF390i to record a Track point every 0.5Nm or if you have a sail boat you may want to setup to lay down a Track point once every 1 minute. -
Page 75: Saving And Starting A New Track
Shows or hides a Track shown in ACTIVE TRACK menu LINE COLOR Selects the color of the Track line DELETE Deletes a Track selected in the ACTIVE TRACK menu STEP UNIT Allowable selection are Distance or Time Page 76 CP390i and CPF390i... -
Page 76: Trip Log
5. A warning popup window will be shown to confirm if you want to reset the Trip Log. Move the ShuttlePoint knob to highlight YES and press [ENT].The Trip Log is now reset. 6. Press [CLR] to store and exit the editing mode Figure 10.1. 1 - Trip Log Reset CP390i and CPF390i Page 77... -
Page 77: User C-Card
Formatting permanently erases all files previously saved on the User C-CARD. 11.0.1 Transferring files to the optional User C-CARD 1. Remove a C-MAP B /MAX C-CARD if present and insert the optional User EPPESEN C-CARD into the slot. Page 78 CP390i and CPF390i... -
Page 78: Loading A File From The Optional User C-Card
3. Open the door, remove the User C-CARD from the slot and insert another User C-CARD into the same slot. 4. Move the ShuttlePoint knob to highlight REFRESH and press [ENT]. This "new" User C-CARD is now ready to receive and store information. CP390i and CPF390i Page 79... -
Page 79: Pages
12. PAGES The CP390i and CPF390i have many pages that are designed to ease your navigation. Figure 12 - Example of screen display pages The pages can be selected in the following way: Selection by MENU 1. Press [MENU]. The following menu is shown on the screen: Figure 12a - Main Menu 2. -
Page 80: Chart Page
Dual Chart page. It happens when the GPS Chart Plotter updates the displayed chart in the not active window. So the user understands that the GPS Chart Plotter is busy. CP390i and CPF390i Page 81... -
Page 81: Focus Soft Key On Dual Chart Page
The red border is moved to the focused window. NOTE It is possible to change the focus by pressing and holding [FIND] for 2 seconds (in place of 1 and 2 steps in the above procedure). Page 82 CP390i and CPF390i... -
Page 82: Single Chart Page
12.0.1 Single Chart page Figure 12.0.1 - Example of Single Chart page 12.0.2 Window Selections The default is the Two Line Small window. The CP390i and CPF390i windows may be changed by the procedure below. Figure 12.0.2 - Data window layout 1. -
Page 83: Customizing The Data Windows
3. Move the ShuttlePoint knob up/down or left/right to choose the desired setting and press [ENT]. 4. Press [CLR] to store and exit the editing mode. NOTE Data window field on the NAVIGATION, HIGHWAY, GPS STATUS, and NMEA pages may be customized in the above manner. Page 84 CP390i and CPF390i... -
Page 84: Additional Functions On Chart Page
4. Move the ShuttlePoint knob up or down to highlight OFF, ON POINTS or ON ALL and press [ENT] or move the ShuttlePoint knob to the right. 5. Press [CLR] or move the ShuttlePoint knob to the left until the Chart page appears. Figure 12.0.5 - Example of Auto Info settings CP390i and CPF390i Page 85... -
Page 85: Display Mode
Icon + Depth Icon Icon Icon Icon Icon Obstructions Icon + Depth Icon Icon Icon Icon Icon Diffusers Icon + Depth Icon Icon Icon Icon Icon Wrecks Icon + Depth Icon Icon Icon Icon Icon Page 86 CP390i and CPF390i... -
Page 86: Marine Settings
Depth Range Max : Sets the max depth limit to show Depth Sounding, Bathymetric Lines and Depth Areas. Figure 12.0.8 - Depth Settings 12.0.9 Land Settings Controls the display on the map of the terrestrial features. CP390i and CPF390i Page 87... -
Page 87: Chart Settings
VAD. The same icon is also shown on the Full Info page and in addition the extended text Value Added Data is shown on the details of the VAD object. See the figure below: Page 88 CP390i and CPF390i... -
Page 88: Underwater Objects Settings
Mode. 1. Press [MENU], move the ShuttlePoint knob to highlight SETUP MENU and press [ENT]. 2. Move the ShuttlePoint knob to highlight CHART CONFIGURATIONS and press [ENT] or move the ShuttlePoint knob to the right. CP390i and CPF390i Page 89... -
Page 89: Navigation Page
5. Move the ShuttlePoint up or down to select COMPASS TAPE and press [ENT]. 6. Press [CLR] or move the ShuttlePoint knob to the right until the Chart page is shown. Figure 12.2 - Navigation page with Compass Rose Figure 12.2a - Navigation page with Compass Tape Page 90 CP390i and CPF390i... -
Page 90: Highway Page
ShuttlePoint knob is pressed up to move the cursor to the top of the Tide Graph this is the High Water Level and if the cursor is moved to the bottom of the Tide Graph the draught will show the Low Water Level. CP390i and CPF390i Page 91... -
Page 91: Gps Status Page
4. Move the ShuttlePoint knob to highlight None (to disable) and press [ENT]. 5. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint knob to the left until the menu disappears. Page 92 CP390i and CPF390i... -
Page 92: Setup Menu
Figure 12.6 - NMEA Display page The NMEA sentences read from external devices are: BWC, DSC, DSE, GGA, GLL, GSA, GSV, HDG, HDM, HDT, RMC, VHW, VTG, DPT, DBT, MTW, VWR, VWT, TLL, WPL, RTE. CP390i and CPF390i Page 93... -
Page 93: Nmea Data Page
2. Move the ShuttlePoint knob to highlight DATA and press [ENT]. 3. Connect the Blue Wire on the GPS Chart Plotter to the junction of the Brown wire and the VHF wire. The display should look similar to the following picture. Page 94 CP390i and CPF390i... -
Page 94: Nmea Trend
12.8 NMEA TREND PAGES The CP390i* and CPF390i have the following NMEA Trend pages. Trends will be shown for Depth, Temperature and Speed (DST521 or DST526 must be connected to show speed through the water) when a STANDARD HORIZON transducer is connected. To show Wind trend information the CP390i and CPF390i must be connected to the NMEA output of a external Wind instrument. -
Page 95: Vhf Digital Selective Calling
For additional information refer to Par. 2.4 Connections. 12.9.1 Distress Call STANDARD HORIZON GPS Chart Plotters are able to display the location of a vessel in distress when interfaced to a compatible DSC VHF with NMEA-0183 output and the radio receives a DSC Distress Call. -
Page 96: Position Request
Figure 12.9.1 - DSC Log - Distress Call 12.9.2 Position Request STANDARD HORIZON GPS Chart Plotters are able to display the location of a vessel when connected DSC VHF radio and when a Position Request or Report call is received. -
Page 97: Advanced Settings
13.0 INPUT/OUTPUT (NMEA, AIS, RADAR) 13.0.0 Input The CP390i has 4 Inputs and 5 Outputs connections. The CPF390i has 3 Inputs and 3 Outputs connections. These ports may be set up to receive and output the following. · NMEA-0183 - NMEA devices* set to 4800 Baud (default setting) ·... -
Page 98: Navigate
Degrees Minutes and Seconds (default) Chart Datum : Allows selection of Chart Datums. The default Datum is WGS84 as C-MAP B EPPESEN cartography has been compiled using the WGS84 Datum. A datum is a mathematical CP390i and CPF390i Page 99... -
Page 99: Loran Td
Calibration : This function allows a user to enter in the offset for areas that the vessel may cruise instead of entering in a manual offset for one location. This offset is useful for cruising vessels or vessels that travel internationally often. Figure 13.2 - Compass Table Page 100 CP390i and CPF390i... -
Page 100: Alarms
The GPS Chart Plotter shows an icon on the charts that identifies when a Grounding Alarm is detected. Figure 13.3 - Grounding Alarm 13.4 SIMULATION The built-in Simulator function allows you to become proficient in the use of the GPS Chart Plotter, see the following Simulation Menu: CP390i and CPF390i Page 101... -
Page 101: Navigating A Route In Simulation Mode
Manual. If Auto Info is set to On, when receiving the Position Request it is possible to center the cursor over the top of the Position Request icon and show the Position Request popup window Page 102 CP390i and CPF390i... -
Page 102: Ais
· Receive details from other vessels or navigation aids within VHF range. STANDARD HORIZON GPS Chart Plotters are able to display AIS Target (for collision avoidance) on the Chart page and AIS List pages when connected to a AIS Receiver (GX2100 or GX2150 STANDARD HORIZON VHF/AIS transceiver) or transponders which output NMEA-0183 VDM sentence at 38400 or 4800 baud. -
Page 103: Menu
By placing the cursor over a AIS Target icon using the ShuttlePoint knob, the following information is displayed (see the following picture): · Vessel Name · MMSI number · Radio Call Sign · SOG · COG · CPA and TCPA values Page 104 CP390i and CPF390i... -
Page 104: List
GPS Chart Plotter. 14.5 AIS TARGET COLORS The received AIS Targets are shown in color. The color depicts the type of AIS ship shown on the Chart page. Refer to following table. CP390i and CPF390i Page 105... - Page 105 Figure 14.5 - Color AIS Targets Page 106 CP390i and CPF390i...
-
Page 106: C-Weather Service
15. C-WEATHER SERVICE C-Weather is a free service available on the CP390i and CPF390i. C-Weather service gives excellent coverage for the whole World. Weather forecasts are based on data received from the leading meteorological centers. This data is processed by Jeppesen server and made... -
Page 107: Copy From User C-Card
· Real Time View Off: the weather data is not displayed. The layer displayed is the one selected into the previous menu item. 15.0.4 Type of Data Allows selecting the type of data, refer to the table in the Figure 15. Page 108 CP390i and CPF390i... -
Page 108: Mobilarm
To Standard Horizon GPS Chart Plotter Blue PWR ACC 1 Cable Brown Black Green Figure 16.0 - Connection Example NOTE Note the CP390i and CPF390i have 3 Ports so Port1, Port2 or Port3 can be used. CP390i and CPF390i Page 109... -
Page 109: Software Setup
PTX (Personal Transponder) device. When a signal from the PTX is lost for more than one minute, the MOBILARM sends a NMEA message to the GPS Chart Plotter which will produce an alarm and a popup window will be shown on STANDARD HORIZON GPS Chart Plotter. -
Page 110: Mobilarm Ptx
On the GPS Chart Plotter all menus and/or pages are closed and the chart is centered on the PTX MOB received position. A Audible Alarm is heard and a pop-up warning window appears to notify that a PTX has been received: CP390i and CPF390i Page 111... -
Page 111: Placing Cursor On The Ptx Icon
When Goto is selected on the GPS Chart Plotter, navigation will start to the PTX icon location. After the GPS Chart Plotter has received a PTX MOB alarm, using the ShuttlePoint knob move the cursor over the PTX to navigate to and then two Soft Keys under the display Page 112 CP390i and CPF390i... -
Page 112: The Mobilarm Alarm Status List
2. Press [MENU] to show the Main Menu. 3. Move the ShuttlePoint knob to highlight USER POINTS and press [ENT]. 4. Move the ShuttlePoint knob to highlight MOBILARM and press [ENT]. Figure 16.4.2 - Example of MOBilarm PTX List page CP390i and CPF390i Page 113... - Page 113 (if open) and center the chart selected PTX. DELETE Deletes the selected PTX. SHOW Centers the chart on the selected PTX. SHOW ALL Selects the best chart scale to see all PTX icons on the chart at the same time. Page 114 CP390i and CPF390i...
-
Page 114: Fish Finder For Cpf390I
5. Move the ShuttlePoint knob up/down to select OFF and press [ENT] or move the ShuttlePoint knob to the right. 6. Press [CLR] or move the ShuttlePoint knob to the left until the Chart page is shown. CP390i and CPF390i Page 115... -
Page 115: Understanding The Fish Finder Page
17.1 UNDERSTANDING THE FISH FINDER PAGE The display on CPF390i shows a time history of the echoes received by the transducer. The CPF390i have a menu that allows adjustments to receiver sensitivity, depth range and scrolling speed of the Fish Finder display. -
Page 116: Understanding The Fish Finder Display
Color Bar is displayed only if the Fish Finder is in 16 Colors (not 256 Colors) mode. Refer to Par. 17.4 FISH FINDER COLOR to change the color. 17.1.1 Understanding the Fish Finder display Figure 17.1.1 - The Fish Finder display CP390i and CPF390i Page 117... -
Page 117: Displaying The Fish Finder Page
1. From all pages (except the Fish Finder page), press [MENU]. From Fish Finder page, press [MENU] two times. Figure 17.2 - Main Menu 2. Move the ShuttlePoint knob to highlight FISH FINDER and press [ENT]. Page 118 CP390i and CPF390i... -
Page 118: Auto Full Page
Allows the user to zoom into the 200kHz or 50kHz Fish Finder display to show detail of the area selected by the VRM (Variable Range Marker). Refering to Figure 17.2.2, the left display shows the zoomed display and the right display shown the unzoomed display. CP390i and CPF390i Page 119... -
Page 119: 200Khz And 50Khz Fish/Chart
3. Select CHART or FISH FINDER using the ShuttlePoint knob and press [ENT]. Figure 17.2.3a - Example of Fish/Chart page with [F ] shown (on the left side) OCUS and with Focus popup window (on the right side) Page 120 CP390i and CPF390i... -
Page 120: Radar
1. Press any Soft Key. The Soft Key labels appear on the bottom of the screen. A [F OCUS Soft Key will be shown. 2. Press [F ] to show the Focus popup window, where the active focus window label OCUS is highlighted. CP390i and CPF390i Page 121... -
Page 121: Soft Key Operation
17.4 SETUP MENU This section explains how to show the Fish Finder Setup Menu and describe the Fish Finder Setup Menu sub-options. 1. From the Full Fish Finder page, press [MENU]. The following menu appears: Page 122 CP390i and CPF390i... -
Page 122: Fish Finder Color
Allows you to choose the Fish Finder colors between 16 and 256 colors. Figure 17.5 - Fish Finder Color Menu 17.6 PRESETS To simply menu selections, the Fish Finder has two presets that can be easily selected for Fishing or Cruising: Figure 17.6 - Presets Menu CP390i and CPF390i Page 123... -
Page 123: Frequency
For Range and Shift settings refer to Range Menu (see Par. 17.9). 17.7 FREQUENCY Allows you to choose the frequency among Auto, 50kHz, 200kHz or 50&200kHz when single frequency page is selected. Figure 17.7 - Frequency Menu 17.8 GAIN MODE Figure 17.8 - Gain Mode Menu Page 124 CP390i and CPF390i... -
Page 124: Auto Mode
Example: Your vessel is in about 57Ft of water, however there is fish suspended in 35Ft of water. You want to display to 10Ft area around the fish. Shift would be set to 30Ft and Depth would be set to 40Ft shown in the following example. CP390i and CPF390i Page 125... -
Page 125: Interference Rejection
When the Gain Mode option is set to Manual, the Gain can be manually adjusted. When switching from Automatic to Manual Mode, the Gain + Offset value is copied into the Manual Gain setting of the receiver. Page 126 CP390i and CPF390i... -
Page 126: Stc (Sensitivity Time Control)
STC is set to LONG or MID when the bottom is shallow. This issue may be resolved by adjusting the STC value to SHORT or even to OFF in very Shallow Waters. CP390i and CPF390i Page 127... -
Page 127: Surface Noise Filter
Ft, as shown in the Surface Noise Filter Table reported below: Figure 17.11.2 - Surface Noise Filter Depth table 17.12 DISPLAY SETUP Allows the Fish Finder’s display page appearance to be changed. Figure 17.12 - Display Setup Menu Page 128 CP390i and CPF390i... -
Page 128: Color Settings
Shows the real time display of the echo from the bottom. 17.12.5 Water Temperature Allows selection between: a. the temperature sensor in the depth transducer b. an external temperature sensor connected to the Optional Connection wires. CP390i and CPF390i Page 129... -
Page 129: Transducer Setup
Used to calibration on the Water Temperature sensor in the transducer. 17.13.3 Set Defaults Restores the factory settings. 17.14 ALARMS The Alarms Menu allows you to define alarm settings for Shallow Alarm, Depth Alarm and Temperature Upper/Lower/Rate. Page 130 CP390i and CPF390i... -
Page 130: Shallow Water
This option saves the complete set of Fish Finder settings to an optional User C-CARD. This is useful to avoid the user having to retune up Fish Finder after a RAM Clear operation or a software update. CP390i and CPF390i Page 131... -
Page 131: Load Settings From User C-Card
Figure 17.16 - C-CARD - Load settings 17.17 RESTORE CURRENT PRESET DEFAULTS This option restores the default values only for the current presets and does not affect the other presets. Figure 17.17 - C-CARD - Restore settings Page 132 CP390i and CPF390i... -
Page 132: Troubleshooting
Internal RAM memory to become corrupted. To solve this issue, perform a RAM Clear (refer to Section 19). NOTE After performing a RAM Clear all Marks, Routes and tracks will be erased. To backup these points refer to Section 11 for details. CP390i and CPF390i Page 133... -
Page 133: Technical Tests
Each time you move the ShuttlePoint knob to right, the screen will decrease brightness, move it to the left to increase brightness. Backlight The second option allows to set the backlight. Operates in similar mode as Contrast. Page 134 CP390i and CPF390i... -
Page 134: Cartridges
ASCII mode (normal or small) and [CLR] to exit. Loop-Back Test This is a special test done during the production phase to check the serial ports integrity. This function is only required by STANDARD HORIZON. CP390i and CPF390i Page 135... -
Page 135: Specifications
: 5Ft at 50kHz, 2.5Ft at 200kHz Maximum Depth : 1500Ft at 50kHz, 700Ft at 200kHz Airmar X-DUCER ID : Must use STANDARD HORIZON transducers Advanced Digital Signal Processing Speed & Temperature Sensor (if available on transducer) Alarms (Shallow Water, Depth, Fish, Temperature) -
Page 136: Cp390I/Cpf390I Dimensions
3.9" [98.6mm] 1.5" 1.5" [37mm] [37mm] 9.9" [251mm] 0.2" [4.1mm] Figure 20.2 - CP390i/CPF390i Dimensions [inch/mm] 20.3 OPTIONAL FF525 FISH FINDER SPECIFICATIONS (USE WITH CP390i) Power Output : 600W or 1kW depending on connected transducer Frequency : 50 and 200kHz Minimum Depth : 5Ft at 50kHz, 2.5Ft at 200kHz... -
Page 137: Optional Waas Gps Receiver Specifications
32 + 18 Acquisition Time Reacquisition < 1 second Hot Start 1 second Warm Start 29 seconds Cold Start 29 seconds Accuracy < 10Ft with SBAS < 2.0m NMEA Output Messages GGA, RMC, GSA, GSV, TXT Page 138 CP390i and CPF390i... -
Page 138: Appendix: Terms
(GPS). The smaller the HDOP/VDOP value, the more accurately the position fix is provided. HEIGHT – The current Tide height referred to the vertical cursor. HEIGHT WATER – The maximum level of the Tide height in 24 hours. CP390i and CPF390i Page 139... - Page 139 70Mt (230Ft) in height and up to 600Mt (2.000 Ft) in diameter. Position Request – Marine DSC VHF Function of transmitting a GPS position to another Marine DSC VHF. When GPS Chart Plotter is connected to STANDARD HORIZON GPS the position of another vessel is shown on the Chart page.
-
Page 140: Analytical Index
Cable ..............138 Apparent Wind Speed ........84, 139 Calibrate Water Speed ........130 arches ..............129 Calibrate Water Temp ........130 Arrival Alarm ............101 Calibration ............100 ASF1/2 ............... 100 camera icon ............59 CP390i and CPF390i Page 141... - Page 141 CPA Alarm ..........103, 104 Change Parameters ........... 135 CPA Limit ........... 103, 104 change the LCD ........... 31 CPF390i ....... 11, 14, 99, 115, 136, 137 change the scale ..........27 CPF390i Connection Table ........20 change the User C-CARD ........79 CPF390i Connections ..........
- Page 142 DST527 .............. 116 Fish/Chart page ..........120 DST528A ............116 Fish/Radar/Chart page ........121 DTP ..............84 Fishing ............... 123 Dual chart ............. 11 Fishing Facility ............. 73 Dual Chart page ........... 82 fix ............... 133 CP390i and CPF390i Page 143...
- Page 143 Land Elevations ..........86, 88 Land Settings ............87 Hawaii ............. 11, 49, 81 LANGUAGE ........... 35, 38 HDG ........84, 93, 99, 136, 139 Language ............. 58 HDM ............. 93, 136 Language Selection Menu ........35 Page 144 CP390i and CPF390i...
- Page 144 Owner’s Manual ........... 12 Mounting Screws ..........16 Moving a Mark ............. 62 PACKING LIST ............ 12 Moving a Waypoint ..........62 PAGES ..............80 MPH ..............140 Pair .............. 34, 100 Mt ............... 140 PAL ..............24 CP390i and CPF390i Page 145...
- Page 145 ............ 30 Radar ....11, 12, 16, 21, 22, 36, 98, 121 SEND ............. 63, 73 Radar Combo page ..........121 SEND/REC RTE & MARKS ......... 23 Radar page ..........26, 121 Sensitivity Menu ..........126 Page 146 CP390i and CPF390i...
- Page 146 Transducer Setup Menu ........130 STR ..............84 Transferring files ..........78 Structures ............118 Transmit Frequency ........... 117 Sunlight ........... 34, 35, 38 transmit User Points ..........63 sunlight ............... 133 TRIP LOG ............ 77, 140 CP390i and CPF390i Page 147...
- Page 147 Zoom Full page ..........120 VISIBLE ............... 76 ZOOM IN ..........27, 52, 108 VMD ............... 20, 21 ZOOM OUT ........... 27, 52, 108 VMG ............. 84, 140 Zoom Type ............52 voltage ............... 133 Page 148 CP390i and CPF390i...
- Page 148 Products shall be limited solely to repair or replacement, at its option, of the Product or part(s) therein which, upon examination by STANDARD HORIZON, appear to be defective or not up to factory specifications. STANDARD HORIZON may, at its option, repair or replace parts or subassemblies with new or reconditioned parts and subassemblies.
