CP155C / CP175C / CP1000C
GPS Chartplotter
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP1000C and is the answer not in the manual?

Questions and answers

Related Manuals for Standard Horizon CP1000C

Summary of Contents for Standard Horizon CP1000C

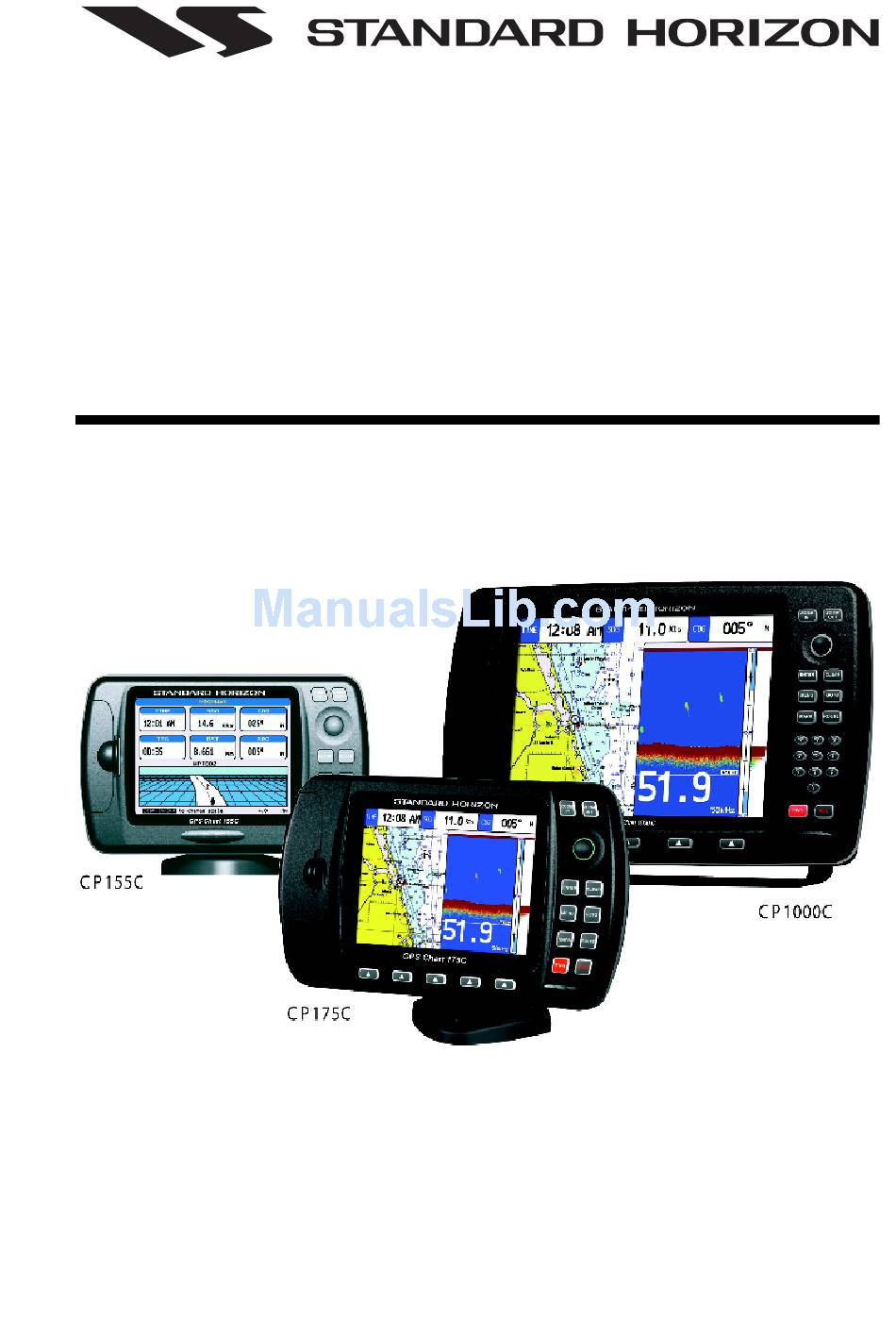

  • Page 1 CP155C / CP175C / CP1000C GPS Chartplotter Owner's Manual...
  • Page 2 (1) This device cannot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. STANDARD HORIZON Copyright 2004. No part of this publication may be reproduced or distributed in any form or by any means, or stored in a database or retrieval system, without prior written permission of the publisher.
  • Page 3 Whether this is your first chartplotter, or if you have other STANDARD HORIZON equipment, the STANDARD HORIZON organization is committed to ensuring your enjoyment of this chartplotter. STANDARD HORIZON technical support personnel stand behind every product we sell, and our Product Support team invites you to contact us should you require technical advice or assistance, at 800/767-2450.
  • Page 4 - The chartplotter contains dangerous high voltage circuits which only experienced technicians can handle. - STANDARD HORIZON will not be liable for errors contained herein, or for incidental or consequential damages in connection with the performance or use of this material.

  • Page 5: Table Of Contents

    CONNECTING DIGITAL INSTRUMENTS/AUTOPILOT/RADAR ... 21 2.10 OUTPUTTING NMEA TO A PERSONAL COMPUTER ... 21 2.11 NMEA DATA PAGE ... 22 2.12 VIDEO INPUT (for CP1000C only) ... 22 2.12.0 Video Camera Input ... 22 2.12.1 VCR or DVD Input ... 22 2.13 OPTIONAL C-MAP NT+ CARTOGRAPHY ...
  • Page 6 4. USING FIND SERVICES & MORE FUNCTION ... 35 PORT SERVICES ... 35 OTHER AVAILABLE SEARCHES ... 35 5. CREATING MARKS CREATING A NEW MARK USING THE CHART PAGE ... 37 EDITING a MARK ... 37 5.1.0 Deleting a Mark or Waypoint ... 38 5.1.1 Moving a Mark or Waypoint ...
  • Page 7 13.0.3 Serial Ports ... 74 13.0.4 Modem test ... 74 14. SPECIFICATIONS 14.0a CP155C SPECIFICATIONS ... 75 14.0b CP175C SPECIFICATIONS ... 76 14.0c CP1000C SPECIFICATIONS ... 77 14.1 Smart WAAS Receiver Specifications ... 78 15. APPENDIX: TERMS INDEX GPS chartplotters ...
  • Page 8 Page 10 GPS chartplotters...

  • Page 9: Introduction

    · User selectable data fields · NMEA Data pages · 3 NMEA Output and 3 Inputs · Connections to and from STANDARD HORIZON DSC VHF’s for Distress and Position Request calls · 3 year limited warranty, lifetime flat rate 1.1 PACKING LIST When the package containing the chartplotter is first opened, please check for the following contents.

  • Page 10: Cp175C Packing List

    XUS0003908 XUS0003909 XUS0003910 XUS0003913 XUS0003911 XUCMP0066 XUCMP0067 1.2 OPTIONAL ACCESSORIES 1.2.0a CP155C Optional Accessories PART NUMBER RR150003CP 1.2.0b CP1000C Optional Accessories PART NUMBER VC10 ECVC10 ACVC10 Page 12 ITEM Quick Disconnect Bracket Protective Cover Flush mounting screws Flush mount template...
  • Page 11 Figure 1.2.0b - Color Video Camera Figure 1.2.0ba - Extension Cable GPS chartplotters Page 13...
  • Page 12 Page 14 GPS chartplotters...

  • Page 13: Getting Started

    2. GETTING STARTED MOUNTING THE GPS CHARTPLOTTER The GPS chartplotter is supplied with hardware for bracket or flush mounting. Below are pictures showing actual examples of the two types of installation. BRACKET MOUNTING The GPS chartplotter can be mounted using the supplied bracket. Before installing ensure the area the plotters bracket is mounted to is strong enough to support the weight of the chartplotter especially while under way.

  • Page 14: Mounting The Gps Smart Antenna

    2. Drill a hole in one area of the cut area that will allow the blade of a jig saw to be inserted. Insert and cut out the area on the panel using the jig saw. 3. Next drill the four holes required to insert the chartplotter with the mounting studs. 4.

  • Page 15: Flush Mounting

    Before drilling holes, it is recommended the GPS antenna be positioned where the location is planned to be drilled, cable connected to the Plotter and the GPS chartplotter turned on to ensure a GPS FIX is received. 1. Remove the threaded base from the GPS antenna dome. 2.

  • Page 16: Connection Table For Cp155C/Cp1000C

    Smart GPS NMEA Input Brown Smart GPS NMEA Output Black/Yellow Battery Ground The CP155C and CP1000C have connectors on the rear panel that allow the GPS Smart antenna to be directly connected. Video Connector for CP1000C Description Connection Example Ground...

  • Page 17: Connection For Cp155C

    2.4.1a Connection for CP155C 2.4.1b Connection for CP175C 2.4.1c Connection for CP1000C GPS chartplotters Page 19...

  • Page 18: Battery Connections

    DSC Distress Call or even Poll the location of another vessel and show the position of that vessel on the display of STANDARD HORIZON VHFs. STANDARD HORIZON has taken this feature one step further, if the Standard Horizon GPS chartplotter is connected a STANDARD HORIZON DSC capable VHF, the vessel in Distress or the polled position of the vessel is shown on the display of the GPS chartplotter, making it easy to navigate to the location of the vessel.

  • Page 19: Optional Black Box Fish Finder

    OPTIONAL BLACK BOX FISH FINDER STANDARD HORIZON offers an optional black box fish finder called FF520. Pls refer to the manual supplied with the Fish Finder for connections and operation. CONNECTING DIGITAL INSTRUMENTS/AUTOPILOT/RADAR The GPS chartplotter can be connected to any of the following instrument if they have NMEA output: Depth Sounder, Speed Log with temperature, Wind Speed and Direction, Flux Gate Compass, Auto Pilot and Radar.

  • Page 20: Nmea Data Page

    2.12.1 VCR or DVD Input A VCR or DVD may be connected to either Video1 or Video2 port. The CP1000C does not have speakers so the audio from the VCR or DVD would have to be routed to a stereo system.
  • Page 21 Standard Horizon offers an optional cable called ACVC10 that allows any VCR or DVD to simply be plugged into the CP1000C. The CP1000C has the capablity to select the Video Input in three ways. 1. From the menu Press [MENU], select SETUP, press [ENTER], select VIDEO INPUT press [ENTER],. A menu appears with the following options: a.

  • Page 22: Optional C-Map Nt+ Cartography

    WITCH 2.13 OPTIONAL C-MAP NT STANDARD HORIZON has taken advantage of C-MAP’s experience with professional navigation, by allowing the use of the refined and improved cartography called NT cartography of NT makes creative use of colors, patterns and icons to increase the familiarity and usability of the much larger coverage database of NT C-MAP in four sizes Local, Standard, Wide and SuperWide.

  • Page 23: Controls And Indicators

    This section defines each control of the chartplotter. For instructions, refer to Getting Started and Advanced Settings sections of this Owner's Manual. CONTROLS AND CONNECTIONS The chartplotter is controlled by using the keys located on the front panel. These labeled keys are dedicated to specific functions.

  • Page 24: The Alphanumeric Keys On Cp1000C

    When pressed the GPS chartplotter automatically places a Mark on the Chart Page and all navigation is towards the position of the MOB Mark. 3.0a The alphanumeric keys on CP1000C The 10 alphanumeric keys The 10 alphanumeric keys are used for entering in alphanumeric data.

  • Page 25: Cursor Vs. Home Mode

    2. When the power is first turned on two pages are briefly shown before the GPS Status page. 3. When the GPS chartplotter is first turned on it will take some time for the GPS to acquire a fix of your position. Look closely at the GPS Status page and you will see satellites and relative signal strengths.

  • Page 26: Cursor And Menu Selection Speed

    To change from Cursor Mode to Home Mode press [CLEAR]. Home mode When the ships icon is only shown on the Chart page (cursor is not shown) you are in home mode. Now as the ship moves through the water the vessels position will be kept in the center of the display.

  • Page 27: Changing The Backlight And Contrast

    1. Press [MENU] and move the ShuttlePoint knob to select SETUP and press [ENTER]. 2. Move the ShuttlePoint knob to select GENERAL SETUP and press [ENTER]. 3. Now select SHIP ICON and press [ENTER] or move the ShuttlePoint knob to the right to show the popup window with ship icons.

  • Page 28: Adjusting The Time

    5. Press [CLEAR] or move the ShuttlePoint knob to the left to exit the menu and show the Chart Page. When the chartplotter is in COURSE UP mode a small arrow icon page indicating the direction of North. ADJUSTING THE TIME The time information supplied by the GPS satellites is in Universal Time Coordinates (UTC or Greenwich England Mean Time).

  • Page 29: Selecting Loran Td Or Other Coordinate System

    1. Press [MENU] , select SETUP and press [ENTER] or move the shuttlepoint knob to the right. 2. Move the ShuttlePoint knob to GENERAL SETUP and press [ENTER] or move the ShuttlePoint knob to the right. 3. Move the shuttlepoint knob to TIME SETUP and press [ENTER] or move the shuttlepoint knob to the right.

  • Page 30: Changing The Chart Color

    Chart Page. SELECTING PAGES USING SOFT KEYS The Soft Keys located under the LCD on the CP175C and CP1000C are used to select the pages quickly without the need to go into the menu. The default pages are CHART, NAV, HIGHWAY, CELESTIAL and NMEA DISPLAY.

  • Page 31: Customizing The Soft Keys

    CUSTOMIZING THE SOFT KEYS The “Soft Keys” (CP175C and CP1000C) can be individually customized from the default pages (discussed above) to the following: CHART, NAVIGATION, HIGHWAY, CELE- STIAL, DSC LOG, DSC DIRECTORY, NMEA DISPLAY, NMEA DATA, DEPTH TREND, TEMP TREND, WIND SPEED TREND, TEMP TREND, MARK/WAYPOINTS LIST and USER C-CARD.
  • Page 32 LANGUAGE Default setting is English. KEY BEEP Allows the beep produced when a key is pressed to be turned on or off. AUTO INFO By default when the cursor is moved over a buoy, Mark or other item a popup window will show information of the item.

  • Page 33: Using Find Services & More Function

    USING FIND SERVICES & MORE FUNCTION With a C-MAP NT C-CARD installed the chartplotter allows you to search for a Port Service, Ports, Tide Stations, Wrecks, User Points, or GPS Coordinates. PORT SERVICES With a C-MAP NT+ C-CARD installed, the chartplotter can find Port Services contained on the map.
  • Page 34 Page 36 GPS chartplotters...

  • Page 35: Creating Marks

    If a Mark has previously been created and you wish to Edit it, move Cursor over the top of the Mark. 1. After a Mark is created. Press [ENTER], select EDIT using the ShuttlePoint knob and press [ENTER]. On the CP175C or CP1000C press the EDIT Soft Key to show the edit popup window. GPS chartplotters NOTE Figure 5.0 - Mark creation...

  • Page 36: Deleting A Mark Or Waypoint

    [ENTER], select MOVE using the ShuttlePoint knob and press [ENTER]. On the CP175C and CP1000C, press MOVE Soft key. Use the ShuttlePoint knob to move the cursor. A dotted line, connecting the previous Waypoint position to the new position, is shown: Press [ENTER] ([CLEAR] to abort the move), the Waypoint appears in the new position.

  • Page 37: Mark/Waypoints List

    MARK/WAYPOINTS LIST The MARK/WAYPOINTS LIST shows all the Marks and Waypoints that have been stored into the GPS chartplotter. This page also allows you to: ICON Allows sorting by icon type FIND Searches through the Marks or Waypoints to find a point by name using the ShuttlePoint knob LOCATE Shows the position of a Mark or Waypoint on the Chart Page EDIT...

  • Page 38: Goto Cursor

    1. Press [MENU] and select USER POINTS. 2. Press [ENTER] or move the ShuttlePoint knob to the right and the MARK/WAYPOINTS List page below will be shown. 3. To create a NEW Mark, move the ShuttlePoint knob to the right to NEW MARK and press [ENTER].

  • Page 39: Goto Mark

    6. The chartplotter is in Cursor mode, to switch to home mode press [CLEAR] to so the vessel stay in the center of the page. 7. On the CP175C and CP1000C two Soft Keys are also shown that allow you to quickly switch to the HIGHWAY page or to stop navigation.
  • Page 40 Page 42 GPS chartplotters...

  • Page 41: Man Over Board (Mob) Function

    1. Move the ShuttlePoint knob until the cursor is over the top of the MOB icon. 2. On the CP155C press [ENTER], select DELETE and press [ENTER]. On the CP175C and CP1000C press the DELETE Soft key, a popup window will be shown to confirm deleting the MOB point.
  • Page 42 Page 44 GPS chartplotters...

  • Page 43: Routes

    The GPS chartplotter has the capability to store: for CP 155C: 20 Routes with a maximum of 30 Waypoints each, for CP 175C: 20 Routes with a maximum of 50 Waypoints each, for CP 1000C: 50 Routes with a maximum of 50 Waypoints each. A Route can consist of Waypoints or Marks.

  • Page 44: Making Additional Routes

    11. When finished press [ENTER] to save. 12. Press [CLEAR] or move the ShuttlePoint knob to the left until the Chart Page is shown. MAKING ADDITIONAL ROUTES To create another Route the chartplotter must be told that you want to create a second Route. 1.

  • Page 45: Inserting A Waypoint Into A Route

    9. Move the ShuttlePoint knob up/down to change the characters and left/right to select a different character in the Routes Name. 13. When finished press [ENTER] to save. 10. Press [CLEAR] or move the ShuttlePoint knob to the left until the Chart page is shown. INSERTING A WAYPOINT INTO A ROUTE Place the Cursor on the navigation line between two points and press [ROUTE].
  • Page 46 Page 48 GPS chartplotters...

  • Page 47: Tracks

    TRACKS The GPS chartplotter has the capability to store 5 individual and record up to 3000 Track Points. Before using the Track function you will need to setup the Track function that suits your boat. The Track function tracks your vessels location as it moves through the water. The Track function can be setup to lay down a Track for a predetermined time or distance interval.

  • Page 48: Saving And Starting A New Track

    on the previous step. However when using the tracking feature you will notice every time a track point is layed down on the Chart page a small filled in circle is shown on the track line. If you move the cursor over the top of the circle a popup window will be shown with the Time, water temperature, speed and Course Over Ground (COG) this is very useful if you are fishing and want to review the conditions where the fish were being caught.

  • Page 49: Resetting The Trip Log

    1. Select one of the pages listed above, press and hold [MENU]. You will notice one of the data boxes will be highlighted. 2. Press [ENTER] and move the ShuttlePoint knob to select TRIP LOG, press the enter key or move the ShuttlePoint knob to the right. 3.
  • Page 50 Page 52 GPS chartplotters...

  • Page 51: User C-Card

    The User C-CARD is similar to a back up disk used with a PC, in case you have to clear your chartplotters memory, or if you would like to transfer waypoint, Track and route information from one Standard Horizon chartplotter to another. USER C-CARD MENU C-MAP offers a special card that may be used to backup the User Points and Tracks the you have created in the chartplotter.

  • Page 52: Transferring Files To The Optional User C-Card

    1. Remove a C-MAP NT into the slot. 2. Press [MENU], select USER POINTS and press [ENTER]. 3. Select USER C-CARD and press [ENTER]. A screen will appear. Move the ShuttlePoint knob to the left to select SAVE and press [ENTER]. A popup SAVE FILE window will appear.

  • Page 53: Pages

    Figure 10a - Screen display pages (by [MENU]) Selection by SOFT KEY Pressing one of the Soft Key under the display, then press the soft key to show the desired page. This function is only available on the CP175C and CP1000C. GPS chartplotters Page 55...

  • Page 54: Chart Page

    Figure 10b - Screen display pages (by Soft Keys) 10.0 CHART PAGE The Chart page is the main page of the chartplotter. From this page the user can zoom in/ out, pan around the chart, show information about cartographic objects, see the exact vessel position with the COG and SOG, place points, GOTO a destination point, show Track history etc.

  • Page 55: Additional Functions On Chart Page

    1. To change, press [MENU] and move the ShuttlePoint to select SETUP. 2. Press [MENU] and move the ShuttlePoint to select GENERAL SETUP. 3. Press [ENTER] or move the ShuttlePoint knob down to highlight WINDOW SETUP. 4. Press [ENTER] or move the ShuttlePoint knob down to highlight CHART PAGE. 5.

  • Page 56: Advanced Chart Setup

    Landmarks Cultural Features Lat/Lon Grid Chart Boundaries Cartography Mixing Levels Objects Overlap 1. To change to one of the pre-programmed settings, press [MENU] and move the Shuttlepoint knob to highlight SETUP and press [ENTER]. 2. Move the ShuttlePoint knob to CHART SETUP and press [ENTER]. 3.

  • Page 57: Customizing The Data Windows

    Ports & Services : Enables or disable the display of Ports and Services (areas along the shore with facilities for mooring, petrol, hospitals, Coast Guard, Maintenance, Electricity, Police… Tracks & Routes : Enables or disables the display of Tracks and Routes (recommended and established routes for ships at Sea, including traffic separation schemes, deep water routes…).

  • Page 58: Customizing Chart Settings

    can be changed. The picture below shows the Chart Page with 1 Line Large selected and a Popup window with many selections. 1. To change a data window field, press and hold [MENU] until the field is highlighted. 2. Move the ShuttlePoint knob to the desired data field and press [ENTER]. The popup window will be shown.

  • Page 59: Highway Page

    Figure 10.2 - Navigation Data page with Compass Rose Figure 10.2a - Navigation Data page with Compass Tape 10.3 HIGHWAY PAGE Shows a 3D view of the vessel traveling through the water when Navigating to a destination point, Mark or following a route. Press [ZOOM IN] or [ZOOM OUT] to change the highway scale. Figure 10.3 - Highway page GPS chartplotters Page 61...

  • Page 60: Celestial Page

    10.4 CELESTIAL PAGE This page is useful for boaters that are concerned about the height of the water under a bridge or by fisherman that wish to know the tide and moon phase of a specific date. Changing date 1. Press [ENTER] and a popup window will be shown. 2.

  • Page 61: Nmea Display Page

    1a. On the CP155C, press [MENU] and highlight NMEA DISPLAY with the ShuttlePoint knob and press [ENTER]. 2. The CP175C and CP1000C can use step 1a, and a from the factory the right most Soft Key is programmed for direct access. Press this key two times to show the NMEA Display page.

  • Page 62: Nmea Depth, Wind Speed, Temp And Sog Trend

    STANDARD HORIZON VHF Marine Radios with Digital Selective Calling are able to be interfaced with the GPS chartplotter which feeds GPS data to the VHF and listens for DSC calls from the VHF. By connecting a few wires between the STANDARD HORIZON VHF and the GPS chartplotter it will receive: 1.

  • Page 63: Dsc Distress Call

    Vessel in Distress and also allows for easy navigation to the vessel. 10.9.2 Position Request STANDARD HORIZON VHF radios can transmit a DSC call to other equipped Vessels with a DSC VHF or request this radio transmit the GPS position. When this position is received the STANDARD HORIZON VHF radio sends the information to the GPS chartplotter which displays the GPS position of the vessel on the Chart page.
  • Page 64 Page 66 GPS chartplotters...

  • Page 65: Advanced Settings

    11. ADVANCED SETTINGS The Advanced Setup menu allows customization of many GPS functions, Alarms and NMEA interfacing. 1. To access this menu press [MENU], move the ShuttlePoint knob to SETTINGS and press [ENTER]. 2. Move the ShuttlePoint knob to ADVANCED SETUP and press [ENTER]. While in this menu you will see many selections which are described in the next section.

  • Page 66: Compass

    Coordinate System : Selections are ddd mmm.mm : Degrees minutes and hundredths of minutes ddd mm.mmm : Degrees minutes and thousands of minutes ddd mm.sss The Loran TD selection allows the chartplotter to be set up so the user can enter in LORAN TD’s directly into the GPS chartplotter.

  • Page 67: Alarms

    This menu is used to select and setup audible and visual Alarms. Available alarms are Arrival, XTE, Depth, Anchor and Grounding Alarm. Arrival Alarm : Alerts when the vessel is approaching a single destination point or when arriving at a leg in a route. Available selections: 0.00 to 9.99NM.
  • Page 68 Page 70 GPS chartplotters...

  • Page 69: Trouble Shooting

    12. TROUBLE SHOOTING The chartplotter does not turn On. The voltage or the polarity may not be correct. Make sure that the correct voltage (10-35 volt dc) is present. Check also that the polarity is correct. The chartplotter does not get a valid fix. The GPS Antenna may not be in a open sky position or the antenna cable may not be properly connected.
  • Page 70 Page 72 GPS chartplotters...

  • Page 71: Technical Tests

    RAM Test To verify the integrity of the RAM. If on the screen the message ERROR appears, the RAM is physically damaged. Contact your Dealer or STANDARD HORIZON. RAM Clear To clear internal memory. If the chartplotter exhibits unusual operations, or appears to be malfunctioning, it may be possible to correct the problem by clearing RAM.

  • Page 72: Cartridges

    Backlight The second option allows to set the backlight. Operates in similar mode as Contrast. 13.0.2 Cartridges To check the C-CARD and its connector. Background ROM To test the WorldWideBackground. If there is not a malfunction, the code of the Background and the message "OK"...

  • Page 73: Specifications

    14. SPECIFICATIONS 14.0a CP155C SPECIFICATIONS Power consumption Power supply Interface Display Display Resolution Cartography Operating temperature range : 0/+55 degrees Celsius Storage temperature Water Resistence Memory Keyboard Weight User Points (Marks/Waypoints): 600 Routes Track Points Figure 14.0a - CP155C chartplotter Dimensions [mm/inch] GPS chartplotters : 600mA max @12V : 12 Volt DC, 7 Watt max...

  • Page 74: Cp175C Specifications

    Power consumption Power supply Interface Display Display Resolution Cartography Operating temperature range : 0/+55 degrees Celsius Storage temperature Water Resistence Memory Keyboard Weight User Points (Marks/Waypoints): 1000 Routes Track Points Figure 14.0b - CP175C chartplotter Dimensions [mm/inch] Page 76 : 600mA max @12V : 10 - 35 Volt DC, 7 Watt max : Input/Output Interface NMEA-0183 : TFT Color LCD (active area 5,7") sunviewable tecnology...

  • Page 75: Cp1000C Specifications

    Keyboard Weight User Points (Marks/Waypoints): 3000 Routes Track Points Figure 14.0c - CP1000C chartplotter Dimensions [mm/inch] GPS chartplotters : 1280mA max @12V without VideoCamera 1500mA max @12V with VideoCamera : 10 - 35 Volt dc, 15 Watt max without VideoCamera...

  • Page 76: Smart Waas Receiver Specifications

    This Smart DGPS WAAS receiver is based on a ultimate 12 channel GPS engine that delivers accuracy better than three meters by decoding the GPS correction signals from the satellite-based WAAS (Wide Area Augmentation System). The GPS engine, interface electronics and the passive antenna are enclosed inside the water-proof plastic housing. This provides advanced state of the art GPS performance in an easy to use package.

  • Page 77: Appendix: Terms

    15. APPENDIX: TERMS ALT (Altitude) Shows the Altitude of the vessel. APP Wind DIR SPD (Apparent Wind Direction) Shows the Apparent wind Direction when a external wind instrument with NMEA is connected. APP Wind SPD (Apparent Wind Speed) Shows the Apparent wind speed when a external wind instrument with NMEA is connected.
  • Page 78 LOW WATER The minimum level of the tide height in 24 hours. Position Request Marine DSC VHF Function of transmitting a GPS position to another Marine DSC VHF. When GPS chartplotter is connected to Standard Horizon GPS the position of another vessel is shown on the Chart Page.

  • Page 79: Index

    ... 29 Coordinate System ... 67 Coordinates ... 35 Course Up ... 29, 34 CP1000C 12, 18, 22, 26, 32, 33, 37, 38, 41, 43, 55, 77 CP155C ... 11, 12, 18, 19, 24, 38, 43, 55, 75 CP175C 12, 18, 19, 26, 32, 33, 37, 38, 41, 43, 55, 76 Creating a route ...
  • Page 80 HDG ... 79 HDOP ... 79 HEIGHT ... 79 HIGH WATER ... 79 Highway ... 25 Home Mode ... 25, 26 Home mode ... 28 Icon Points ... 57 Inserting C-CARD ... 24 Interface ... 75, 76, 77 KEY BEEP ... 34 Keyboard ...
  • Page 81 Tides & Currents ... 58 Time ... 80 time ... 30 TIME LINE ... 34 Time Units ... 49 Track ... 49 Track menu ... 50 Track Points ... 49, 75, 76, 77 Tracks & Routes ... 59 TRIP LOG ... 50, 80 TROUBLE SHOOTING ...
  • Page 82 Product or part(s) therein which, upon examination by STANDARD HORIZON, appear to be defective or not up to factory specifications. STANDARD HORIZON may, at its option, repair or replace parts or subassemblies with or reconditioned parts and subassemblies.
