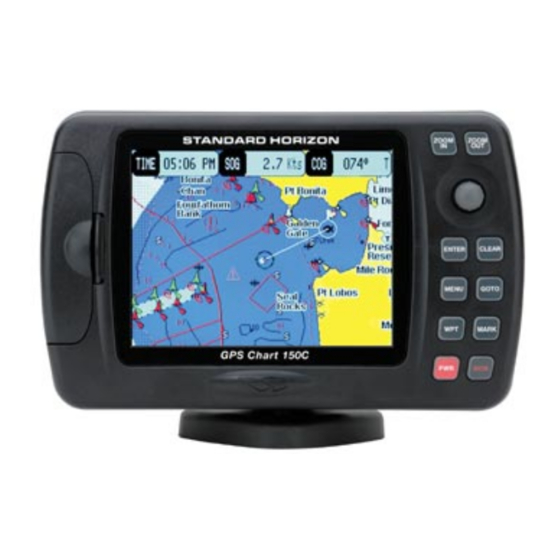

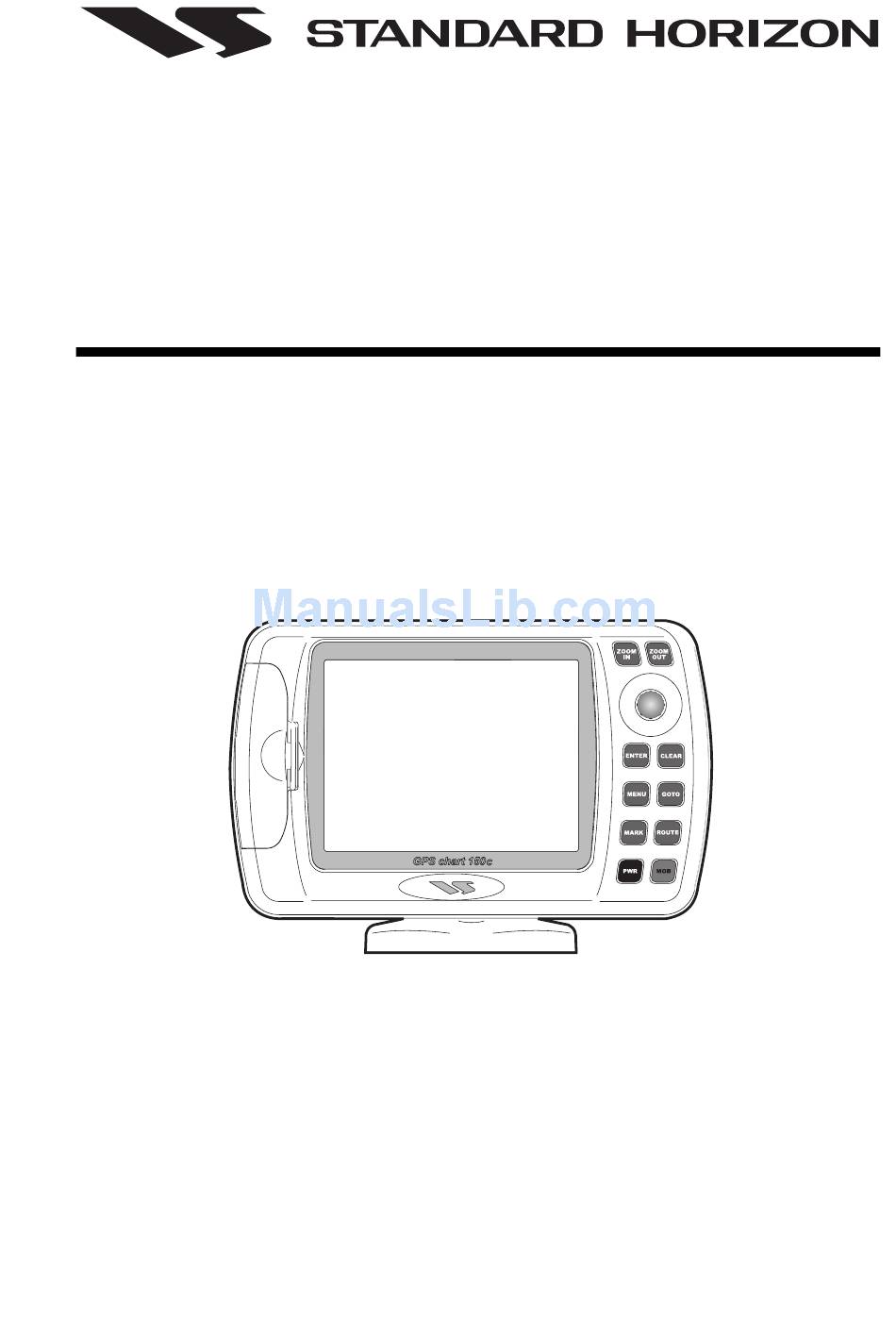

- Page 1 CP150C GPS Chart plotter Owner's Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION 1.0 GENERAL INFORMATION ... 9 1.1 PACKING LIST ... 9 1.2 OPTIONS 2. GETTING STARTED 2.0 INSTALLING THE CHART PLOTTER ... 11 2.1 INSTALLING THE ANTENNA ... 12 2.2 CONNECTING POWER ... 12 2.3 OPTIONAL C-MAP NT 2.4 INSERTING THE C-CARD ... - Page 3 3.7.0.2 Deleting a Mark ... 31 3.7.0.3 Moving a Mark ... 31 3.7.0.4 Locating a Mark ... 32 3.8 CREATING AND USING ROUTES ... 32 3.8.0 Creating a new Route ... 32 3.8.1 Deleting a Waypoint ... 32 3.8.2 Moving a Waypoint ... 33 3.8.3 Inserting a Waypoint into a Route ...
- Page 4 3.15.0.2Destination point ... 53 Route Following ... 53 3.15.0.3MOB ... 53 3.15.0.4Measure DST- BRG ... 53 3.15.0.5Information on User Points ... 54 3.15.0.6User Points List ... 54 3.15.0.7Route Report ... 55 3.15.1Track History ... 55 3.15.2Input/Output ... 55 3.15.2.0GPS Data ... 55 3.15.2.1Instruments Data ...
- Page 5 Congratulations on you purchase of the GPS Chart CP150C! Whether this is your first chart plotter, or if you have other STANDARD HORIZON equipment, the STANDARD HORIZON organization is committed to ensuring your enjoyment of this chart plotter.
- Page 6 The chart plotter contains dangerous high voltage circuits which only experienced technicians can handle. STANDARD HORIZON will not be liable for errors contained herein, or for incidental or consequential damages in connection with the perfor- mance or use of this material.
-
Page 7: Introduction
System (WAAS GPS) constellation of satellites, providing precise location data with a host of navigation features. Idea for nautical use and sealed against water ingress. The CP150C is housed in a rugged, impact-resistant case with outstanding ergonomic design, for effortless operation. -
Page 8: Options
1.2 OPTIONS Part Number RR150003CP Page 10 Item Overhead mounting bracket Figure 1.2 - Bracket GPS Chart 150C... -
Page 9: Getting Started
2.0 INSTALLING THE CHART PLOTTER The CP1150C can be bracket mounted or flush mounted. If you decide to overhead bracket mount the CP150C, STANDARD HORIZON offers a overhead mounting bracket part number RR150003CP that will be needed for this installation. -
Page 10: Installing The Antenna
2.1 INSTALLING THE ANTENNA Choose a location for the antenna that has a clear view of the sky. Ensure there are no major obstructions or fixtures in the immediate proximity to the antenna. The antenna relies on direct “line of sight” satellite reception. If you are unsure that the chosen location is suitable it may be advisable to mount the antenna in a temporary manner to verify correct operation. -
Page 11: Cartography
Figure 2.2 - Power On 2.3 OPTIONAL C-MAP NT CARTOGRAPHY STANDARD HORIZON has taken advantage of C-MAP’s experience with professio- nal navigation, by allowing the use of the refined and improved cartography called NT The new cartography of NT makes creative use of colors, patterns and icons to increase the familiarity and usability of the much larger coverage database of NT . -
Page 12: Controls And Indicators
2.5.0 Controls and Connections The chart plotter is controlled by using the 10 keys located on the front panel of the CP150C. There is also a ShuttlePoint knob to move the cursor across the screen. As Page 14 Figure 2.4a - Inserting C-CARD (II) NOTE to select the ADVANCED SETUP menu item. -
Page 13: The Shuttlepoint Knob
you press a key, a single audio beep confirms the key action; every time a key press is not valid, three rapid beeps sound to indicate that the key action is not valid. Figure 2.5.0 - The chart plotter keys Pressing the “ZOOM IN”... -
Page 14: C-Card Slot
accurately. It also scrolls the desired option in the menu page(s). It allows to exit from Home mode to Cursor mode. When into menu pages moving it to right selects the desired option, as “ENTER”, moving it to the left exits from menu, as “CLEAR”. Press “ENTER”... -
Page 15: Turning Power On And Off
GPS Antenna connector Power and I/O connector 2.6 TURNING POWER ON AND OFF Press and hold “PWR” for 1 second to turn on. The chart plotter emits one rapid beep and the Start-Up pages are displayed. To turn off, press and hold “PWR” for 3 seconds, a countdown timer will appear on the screen. -
Page 16: Changing The Display Palette
2.9 CHANGING THE DISPLAY PALETTE The color of the screen has 4 selections: Normal, Classic, Night and Sunlight. To change the Palette: Press “MENU” + GENERAL SETUP + “ENTER” + PALETTE + “ENTER” + SUNLIGHT (or other) + “ENTER” 2.10 CHANGING LIGHT AND CONTRAST Press and immediately release “PWR”... -
Page 17: Entering In A Mark From A Position
2.12 ENTERING IN A MARK FROM A POSITION The 150C has the capability of storing up to 600 points. To enter in a point from a list of positions: Using the Chart page: 1. On the Chart page, press “MARK” to make a Mark at your current location. 2. -
Page 18: Entering Loran Td's
contained in a Route. 2. Press “GOTO”; you will notice a bearing line from the vessels position and the Target Mark or Waypoint. Using User Points list: 1. On the Chart page, move the cursor to an open area. 2. Press “GOTO”. A pop-up screen will be shown with selections to go to the CURSOR, ROUTE or MARK. -
Page 19: Selecting North Up Or Course Up
On the Chart page the default window shown is called General. This window contains navigation information helpful to assist you in navigation. The CP150C also has the capability to customize the layout of window as show in the figures below. -
Page 20: Selecting Data Window Layout
2.17.0 Selecting Data Window layout Press “MENU”, select GENERAL SETUP from menu, then press “ENTER”, select DATA WINDOW and press “ENTER”. Choose the desired data window layout to be shown with the ShuttlePoint knob and press “ENTER”. Selections are None, 1 Line Small, 1 Line Large, 2 Line Small, Highway, Compass. -
Page 21: Pages
Figure 2.18 - Edit mode 2.19 PAGES Seven different pages can be shown on the CP150C as shown below: Figure 2.19 - Screen display pages 2.19.0 Selecting pages To select the 7 pages shown above, press “MENU”, move the ShuttlePoint knob to select the desired page and press “ENTER”. -
Page 22: Home Mode
Route planning. While in this mode the position of the vessel will move right off the edge of the screen. The CP150C must be in Home Mode for this function to operate. Press “CLEAR” to enable Home Mode function. -
Page 23: Chart Page
3. ADVANCED OPERATON Now that you are familiar with the basic key operation of the CP150C, we will discuss the more advance operations in detail. 3.0 CHART PAGE “MENU” + CHART + “ENTER” The Chart page is the main page of the chart plotter. From this page the user can select... -
Page 24: Highway Page
Figure 3.1 - Navigation Data page 3.2 HIGHWAY PAGE “MENU” + HIGHWAY + “ENTER” Shows a 3D Highway and the most relevant navigation information. It is possible to customize all fields show in the page as described in section 2.18. The scale of the Highway display can be changed by pressing “ZOOM IN”... -
Page 25: Gps Status Page
“MENU” + GPS + “ENTER” To skip this page when the power is turned on press “CLEAR” or wait for a few moments and the CP150C will change to the Chart page after a GPS Fix is received. 3.5 VHF RADIO DSC LOG PAGE “MENU”... -
Page 26: Nmea Display
Figure 3.5 - DSC LOG - Distress Call page Figure 3.5a - DSC LOG - Position Request page 3.6 NMEA DISPLAY PAGES Some data fields will not operate unless the chart plotter is interfaced with another NMEA instrument. See section 3.14.1 for connections. The chart plotter is capable of displaying information from the following devices that have a NMEA output: Depth Sounder, Speed Log, Temperature, Wind speed and direction along with GPS information. -
Page 27: Data Page
Figure 3.6.0 - NMEA Display page 3.6.1 Data page “MENU” + NMEA DISPLAY + “ENTER” + DATA + “ENTER” This page is useful to confirm that there is NMEA data being fed into the chart plotter from an external NMEA device (ex: depth sounder). Pressing “ENTER” starts/stops the page update. -
Page 28: Creating And Using Marks
3.7 CREATING AND USING MARKS Marks can be a stand alone position or can be linked to a Route. The difference between a Mark and a Waypoint is that when a Mark is contained within a Route and the Route is deleted, Marks are not deleted, however Waypoints are. You may place a Mark by a. -
Page 29: Deleting A Mark
3.7.0.2 Deleting a Mark Move the cursor over the Mark to be deleted. A pop up information window will be shown. Press “ENTER” and select DELETE from the pop up information window and press “ENTER”. 3.7.0.3 Moving a Mark Figure 3.7.0.3 - Moving Mark (I) Place the cursor over the top to Mark to be moved and press “ENTER". -
Page 30: Locating A Mark
3.7.0.4 Locating a Mark To select User Points List page follow the procedure (a) or (b): a. Press “MENU”, select USER POINTS LIST and press “ENTER”. b. Move the cursor over a Mark. A pop up information window will be shown. Press “ENTER”... -
Page 31: Moving A Waypoint
Figure 3.8.1 - Deleting Waypoint (I) Press “ENTER”. Select DELETE and press “ENTER”: select YES and press “ENTER” (select NO and press “ENTER” to abort operation). The Waypoint is deleted and a new line between previous and next Waypoint is shown: Figure 3.8.1a - Deleting Waypoint (II) 3.8.2 Moving a Waypoint Place cursor on Waypoint. -
Page 32: Inserting A Waypoint Into A Route
Figure 3.8.2a - Moving Waypoint (II) 3.8.3 Inserting a Waypoint into a Route Every time you place the cursor on the segment connecting two existing Waypoints of a Route the following functions are available: insert Waypoint, report, delete Route. Place cursor on Route leg: Figure 3.8.3 - Placing Waypoint between two existing ones (I) Press “ENTER”. -
Page 33: Editing A Waypoint
Once you have positioned the cursor at new location, press “ENTER” (press “CLEAR” to abort operation): Figure 3.8.3b - Placing Waypoint between two existing ones (III) 3.8.4 Editing a Waypoint Press “ENTER”. Select EDIT and press “ENTER” to modify a Waypoint. A window will be shown with name, symbol and Latitude/Longitude of the Waypoint: Figure 3.8.4 - Edit Waypoint (I) Use the ShuttlePoint knob to select the field. -
Page 34: Route Report Page (Information On A Route)
Use the ShuttlePoint knob to select the symbol and press “ENTER”. If selecting coordinates field, press “ENTER” and use the ShuttlePoint knob to insert the value, press “ENTER” to store. If Color field is selected, press “ENTER”. A window with 8 different colors appears, use the ShuttlePoint knob to select the preferred color and press “ENTER”. -
Page 35: User Points List Page (Information On Waypoints)
Naming Route: Place cursor on Waypoint + “ENTER” + REPORT + “ENTER” + NAME + “ENTER” Use the ShuttlePoint knob to insert the Route name and press “ENTER”. Selecting Route Color: Place cursor on Waypoint + “ENTER” + REPORT + “ENTER”... - Page 36 If the page contains more than 7 User Points, the list continues in the next pages. Move up/down the ShuttlePoint knob to select the User Point you wish. User Point Icon: “MENU” + USER POINTS LIST + “ENTER” + ICON + “ENTER” This mode is used to sort by icon type.
-
Page 37: Deleting A Route
Sorting User Points: “MENU” + USER POINTS LIST + “ENTER” + SORT + “ENTER” Allows sorting of the User Points names. After pressing “ENTER” a window is shown with two options: A-Z ASCENDING and Z-A DESCENDING. Choose the preferred order and press “ENTER”. The User Points are sorted by the selected order. Selecting User Points List: “MENU”... -
Page 38: Following A Route
3.8.8 Following a Route With the Route shown on the Chart page, move the cursor to the starting Waypoint in the Route and press “GOTO”. You will notice that a line will be drawn from your present position to the selected Waypoint which indicates the chart plotter is not going to that Waypoint in the Route. -
Page 39: Goto Mark On The Chart Screen
3.9.1 Goto Mark On the Chart Screen Moving the ShuttlePoint knob over the top of a Mark to navigate to and press “GOTO”. You are now navigating to the selected Mark location and will notice that a circle with a flag with the Mark's name appears on the chart. There is also a bearing line from your position to the Destination point. -
Page 40: Deleting Mob
3.10.1 Deleting MOB Place the cursor over the MOB mark icon, press “ENTER”, select DELETE and press “ENTER” again. 3.11 TRACK PLOTTER FUCTIONS The chart plotter can be setup to record the vessels track as the vessel is moving. The chart plotter is capable of logging the track via time or distance. -
Page 41: Saving A Track To Memory
3.11.3 Saving a track to memory The chart plotter has the capability to store 5 track histories. To store a track press “MENU’, select TRACK and press “ENTER”, select ACTIVE TRACK and press “ENTER”. Select track the next position you want to save the next track to and press “ENTER”. -
Page 42: Specifications
3.13 SPECIFICATIONS Power consumption Power supply Interface Display Display Resolution Cartography Operating temperature range : 0/+55 degrees Celsius Storage temperature Water Resistence Memory Keyboard Weight Marks/Waypoints Waypoints/Routes Track Points Figure 3.13 - Chart plotter Dimensions [mm/inch] Page 44 : 750mA max @12V : 10 - 18 Volt dc, 9 Watt max : Input/Output Interface NMEA-0183 : TFT Color LCD... -
Page 43: 0Gps Receiver Specifications
3.13.0GPS Receiver Specifications Receiver Channels Max Solution Update Rate: 10/sec. Cold Start (avg) Warm Start (avg) Hot Start (avg) 3.13.1GPS Antenna Specifications 3.13.1.0 Physical Constructions Physical Constructions Dimensions Weight Color Mounting 3.13.1.1 Cable & Connector RF cable Pulling strength Connector 3.13.1.2 Overall Performance (antenna element, LNA &... -
Page 44: Technical
RAM Test To verify the integrity of the RAM. If on the screen the message ERROR appears, the RAM is physically damaged. Contact your Dealer or STANDARD HORIZON. RAM Clear To clear internal memory. If the chart plotter exhibits unusual operations, or appears to be malfunctioning, it may be possible to correct the problem by clearing RAM. -
Page 45: 1Dim Menu
This operation will erase all Marks, Routes, stored track plots and Destinations. It will also return all selections (Input Data Format, Autopilot selection, etc.) to original default values. To confirm clear RAM press “ENTER” again (but if at this time you do not wish to clear RAM press “CLEAR”). -
Page 46: 3Serial Ports
C-CARD Test To test the C-CARD. There are three possible situations: 1. if there is a C-CARD inserted in the slot and there is not a malfunction, the name of the C-CARD zone and the message "OK" are shown. 2. if there is a C-CARD inserted in the slot, but it is a defective C-CARD, the name of the C-CARD zone and the message "Faulty"... -
Page 47: Nmea Input/Output
3.14.1 NMEA Input/Output The chart plotter has 3 NMEA Outputs and 2 inputs. Pinout and wiring examples are shown on the following pages: GPS Chart 150C Page 49... -
Page 48: Setup Of Nmea Output Sentences
The NMEA outputs are provided to send signal to a wide range of other NMEA electronics capable of receiving the following sentences: GLL, VTG, BWC, WCV, APA, APB, BOD, XTE, RMA, RMB, RMC, GGA and HSC. 3.14.1.0 Setup of NMEA output sentences The output sentences of each port of the chart plotter can be customized. -
Page 49: Nmea2 Rtcm Input
GPS fix from one antenna. In fact, if the CP150C is selected as the SLAVE any STANDARD HORIZON GPS Chart Plotter (CP150, CP160 or CP170C) or any GPS capable of outputting NMEA (RMC or GLL and VTG) can be connected to the CP150C for dual station operation. -
Page 50: Terms And Functions
+ INTERNAL GPS SETUP + “ENTER” + OPERATING MODE + “ENTER”+ SLAVE + “ENTER” TRANSFERING USER POINTS: STANDARD HORIZON Chart Plotters can transfer User Points between plotters: User Point List Send/Receive To use this function the Blue wire of the Master must be connected to the Brown wire of the Slave. -
Page 51: 0Marks
The user can delete each Waypoint of the Route individually, delete the whole Route, move Waypoints of the Route and insert new Waypoints between existing ones. STANDARD HORIZON chart plotters allows storing Routes of 20 – 30 Waypoints each. 3.15.0.2 Destination point The Destination point is the point to which the vessel is navigating. -
Page 52: 5Information On User Points
3.15.0.5 Information on User Points Placing the cursor over any User Point a pop up window showing Information related to the object found is shown on the Chart page. Example of pop up window with information on a Mark, Distance and Bearing from current vessel’s position to the selected Mark are show as well. -
Page 53: 7Route Report
- Activate the navigation (assign the Destination) to the selected User Point. 3.15.0.7 Route Report Shows Waypoints position and label, Distance and Bearing between Waypoints, ETE, Fuel consumption of the selected Route. Figure 3.15.0.7 - Route Report page Functions allowed from the Route Report: - Change the selected Route. -
Page 54: 1Instruments Data
Speed Over Ground, Course Over Ground, etc. 3.15.2.1 Instruments Data The STANDARD HORIZON chart plotters can be connected to other instruments (Depth, Wind, Compass etc) sending NMEA-0183 data or other proprietary data formats. The chart plotter reads the following NMEA-0183 sentences from the instruments: DBT, DPT, HDG, HDM, HDT, MTW, MWV, VHW, VWR, VWT, RTE, WPL. -
Page 55: Navigation Page
Figure 3.15.3.1 - GPS Status page The Signal Status can be: ACQUIRING: The GPS is trying to get a valid position Fix. GPS 2D: The GPS is receiving at least 2 valid satellites signals. GPS 3D: The GPS is receiving at least 3 valid satellites signals. DGPS 2D / 3D: The GPS is receiving a 2D or 3D position and the Differential Correction. -
Page 56: Highway Display
STANDARD HORIZON chart plotters. Contact C-MAP USA at (508) 477-8010 or visit www.c-map.com for further information on NT STANDARD HORIZON has incorporated new functions to aid your navigation and to improve the look and feel of the data display to closely resemble actual Charts. The following sections will discuss each of the improvements. -
Page 57: Display Settings
3.15.4.1 Display Settings With a NT chart installed, the display of the chart plotter is visually communicated to navigators as never before. To simplify the customization of the chart display, the map settings are now re-organized in modes allowing the user to choose the preferred setting. -
Page 58: Depth Settings
Nav-Aids: US / US Simple / INT / INT Simple / Off. The default setting is US. When selected it affects Lights, Signals, Buoys & Beacons display. - INT(ernational): Draws Nav-Aids using international symbology. All compo- nents of Complex Objects are shown. - INT(ernational) Simplified: Shows Complex Object with one icon only. -
Page 59: Land Settings
Land Settings The Land Settings menu controls the level of cartographic details shown. Rivers & Lakes: Enables / Disables the display of Rivers and Lakes. The default setting is On. Natural Features: Enables / Disables the display of the Natural Features (any topographic feature formed by the action of natural process e.g. -
Page 60: 3General Setup
Declutter:Enables / Disables the Declutter. The default setting is Off. When it is On removes overlapping text (e.g. Names, Spot Soundings etc.). 3.15.4.3 General Setup Language: Allows changing the language for menus and data screens. Keypad beep: Enables / Disables the audible beep. Palette: Normal / Classic / Night / Sunlight. -
Page 61: 4Fix
Due to the cartography contained in the C-MAP NT charts shown within the same scale range. Measure DST & BRG: allows measuring the Distance and Bearing between two points. Ship Icon: select the preferred icon (among 5 choices) to display ship on the Chart page. -
Page 62: 6Compass
- Select Slave2 - Switch Alternate solution - Set ASF1 - Set ASF2 3.15.4.6 Compass Bearings: Magnetic/True. Allows selection of the reference used in calculating bearings. Switches Magnetic / True bearings display. When Magnetic bearings option is set, the chart plotter applies the selected Magnetic Variation (Auto – Manual) to the True degrees to convert from True to Magnetic bearings. - Page 63 XTE Alarm: Sets an acoustic alarm to sound when the vessel is deviating from a defined course. The user can select the desired alarm range or disable the alarm. Depth Alarm: Sets an acoustic alarm to sound when the received depth value (from a depth sounder with NMEA output) is too shallow.
-
Page 64: 9Simulation
3.15.4.9 Simulation Allows simulating Vessel Position, speed and course. The simulated path is generally a straight course starting from the current position assumed by the cursor at the Simulation activation time. Simulation Mode: Enables (On) or disables (Off) the Simulation. The default setting is Off. -
Page 65: 1Info Function
advantage of showing the details of the object selected on the Info Tree while the cursor is moving through the Info Tree’s items. Figure 3.15.5.0 - Info pages The upper side of the page contains the Info Tree and the Lower side contains the expanded information. -
Page 66: 3Getting Tide Info
Figure 3.15.5.2a - Automatic Info window To expand information about that object press “ENTER”. 3.15.5.3 Getting Tide Info When you will see a Tide Info icon you can place the cursor on it to query the available information that will immediately be displayed. Figure 3.15.5.3 - Tide Info icon Place cursor on the Tide symbol, a Automatic Info window is opened: Figure 3.15.5.3a - Automatic Info on Tide... -
Page 67: 6Find Function
Using the ShuttlePoint knob, it is possible to move the cursor anywhere on the graph and display the time, height (vertical cursor) and draught (horizontal cursor) on a particular graph point. Also use “ZOOM IN” or “ZOOM OUT” to go to previous or next day and “ENTER”... -
Page 68: Searching By List
Searching by list Press “MENU” + FIND + “ENTER” + PORT + “ENTER” + “MENU” Rebuild and display the complete ports list. Use the ShuttlePoint knob to select the port and “ZOOM IN”/“ZOOM OUT” to select next/previous page. Press “ENTER” to locate the selected port on the map. Searching by name Press “MENU”... -
Page 69: Index
INDEX About page ... 58 Accessories ... 9 Adding New Mark ... 30 Alarm Range ... 65 Alarm settings ... 64 Anchor Drag Alarm ... 65 Antenna ... 12 Arrival Alarm ... 64 Attention Areas ... 60 Audible Alarm ... 65 Automatic Info ... - Page 70 Fix Settings ... 63 Following a Route ... 40 Fuel ... 37 Goto ... 40 Goto Cursor ... 40 Goto function ... 20 Goto Mark ... 41 Goto Route ... 41 GPS ... 9, 18, 27, 56 GPS Antenna connector ... 17 GPS Antenna Specifications ...
- Page 71 Power ... 17 Power On ... 13 RAM Menu ... 46 Receiving User Points ... 39 removing ... 11 replacement parts ... 9 Resolution ... 44 Reversing Route ... 37 Route ... 9, 16, 32, 44, 53 Route Color ... 37, 40 Route Following ...
