GOT5100T-832 User's Manual

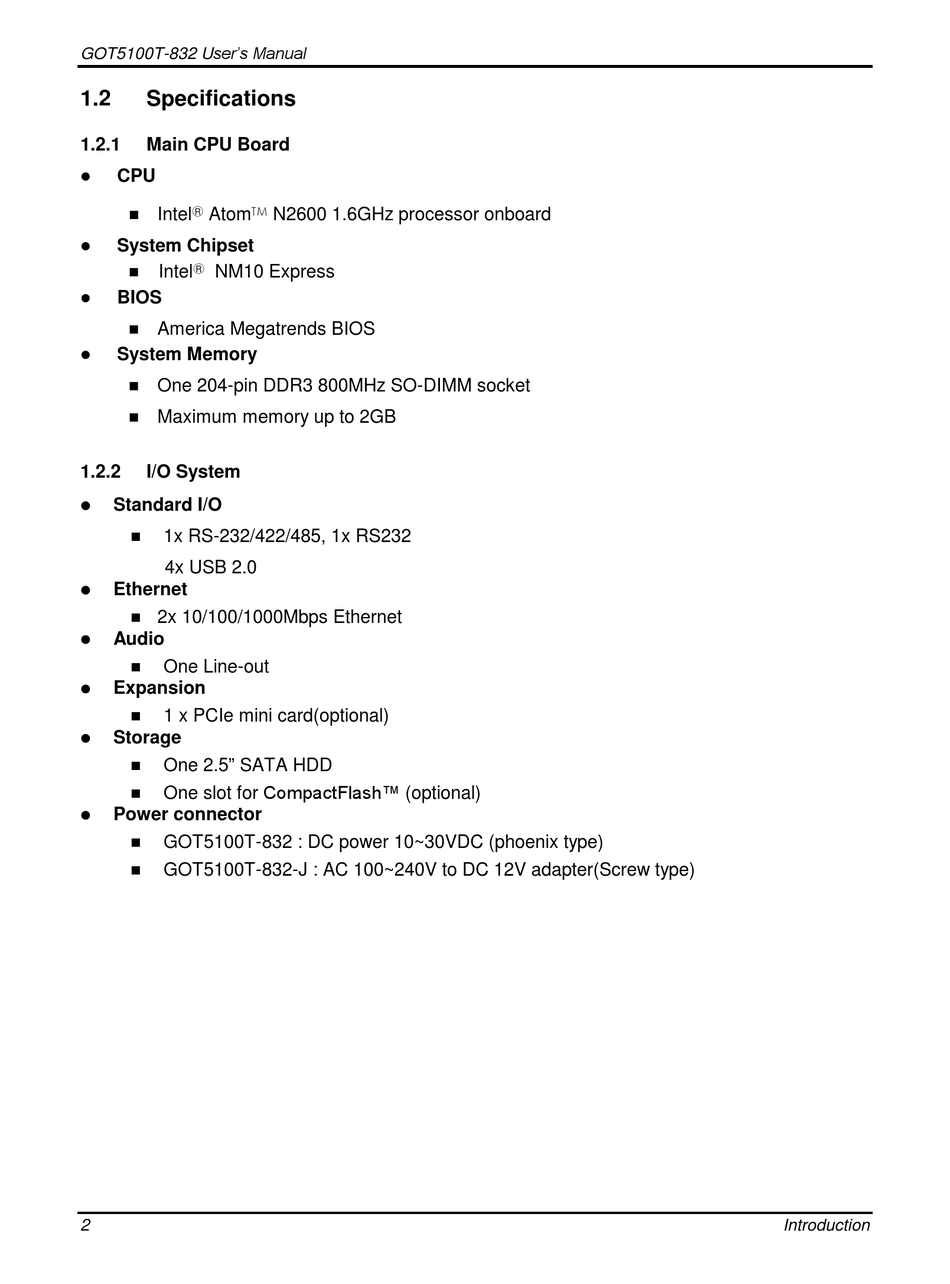

1.2

Specifications

1.2.1

Main CPU Board

 CPU
TM
○

Intel Atom
R
 System Chipset
○
 Intel NM10 Express
R
 BIOS
 America Megatrends BIOS
 System Memory
 One 204-pin DDR3 800MHz SO-DIMM socket

Maximum memory up to 2GB
1.2.2

I/O System

 Standard I/O

1x RS-232/422/485, 1x RS232
4x USB 2.0
 Ethernet
 2x 10/100/1000Mbps Ethernet
 Audio
 One Line-out
 Expansion
 1 x PCIe mini card(optional)
 Storage
 One 2.5" SATA HDD
One slot for CompactFlash™ (optional)

 Power connector
 GOT5100T-832 : DC power 10~30VDC (phoenix type)
 GOT5100T-832-J : AC 100~240V to DC 12V adapter(Screw type)
2
N2600 1.6GHz processor onboard
