GOT5100T-832 User's Manual
2.3
Ethernet
The GOT5100T-832 is equipped with two high performance Plug and Play Ethernet interfaces, full
compliant with IEEE 802.3 standard, and can be connected with a RJ-45 LAN connector.

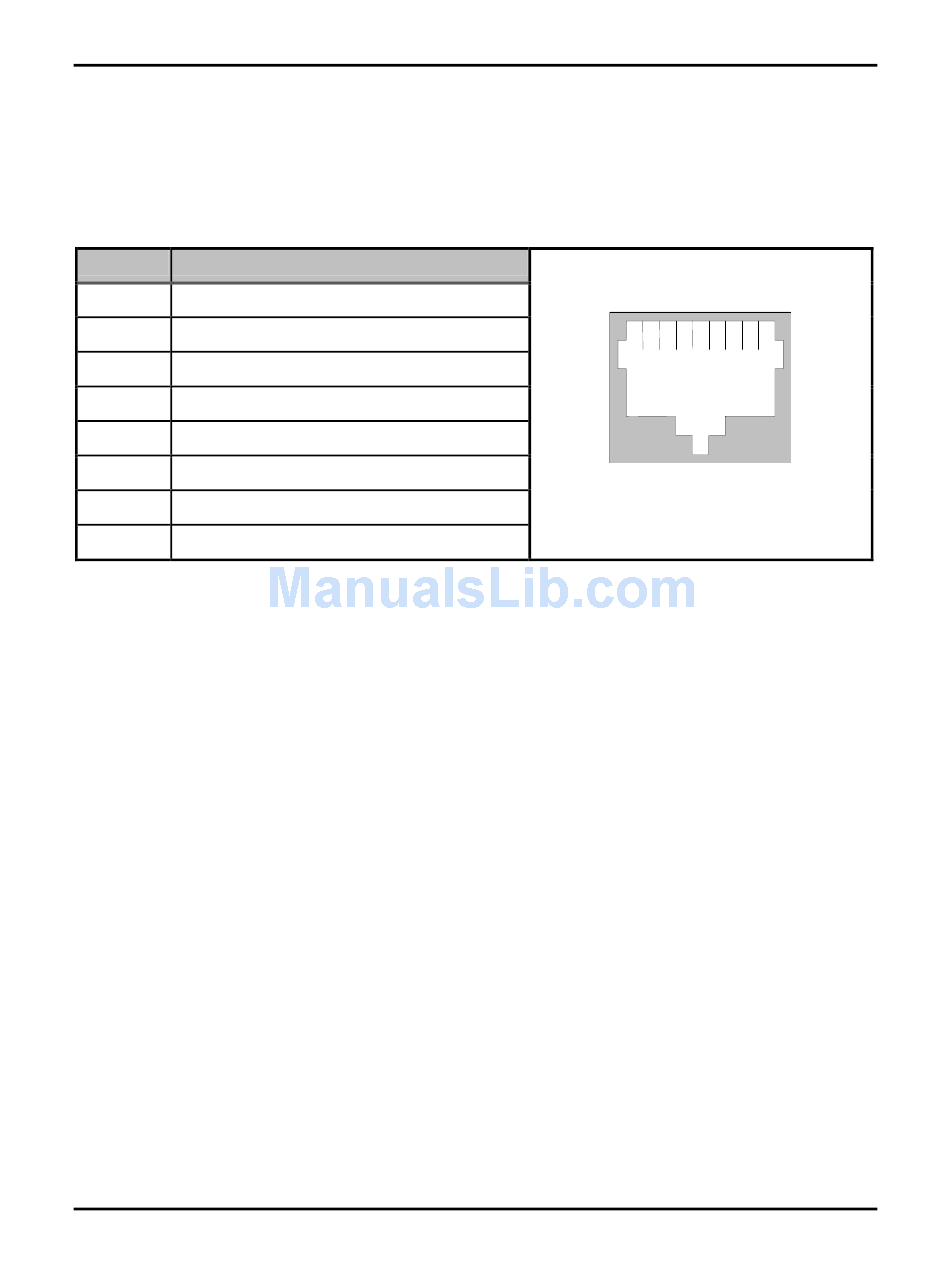

Please refer to detailed pin assignment list below:
Pin
1
TX+ (Data transmission positive
2
TX- (Data transmission negative)
3
Rx+(Data reception positive)
4
RJ45 termination
5
RJ45 termination
6
Rx- (Data reception negative)
7
RJ45 termination
8
RJ45 termination
12
Signal
1 2 3 4 5 6 7 8
RJ-45
