System Specification - AXIOMTEK GOT5100T-832 User Manual

1.2.3

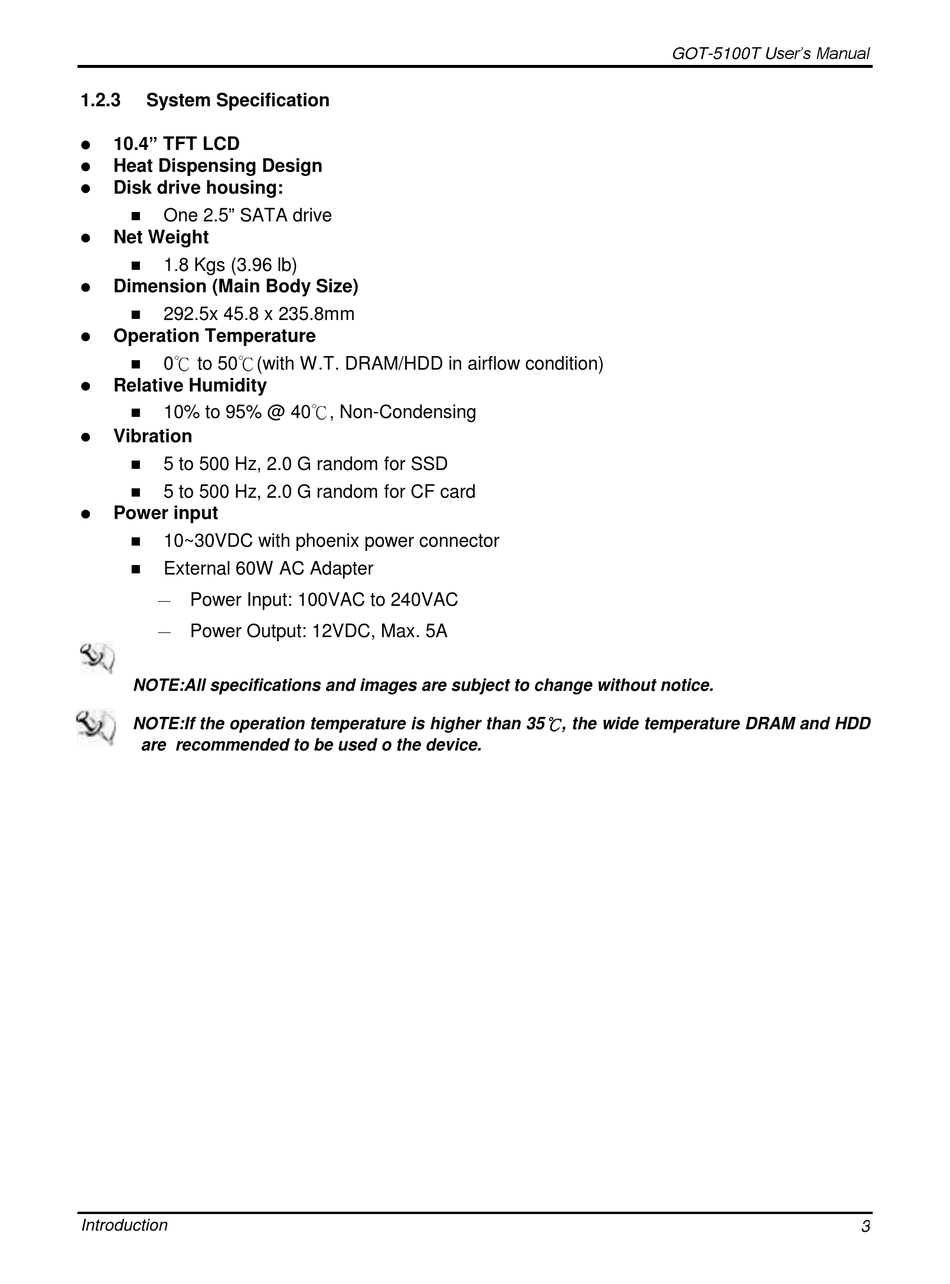

System Specification

 10.4" TFT LCD
 Heat Dispensing Design
 Disk drive housing:
 One 2.5" SATA drive

Net Weight

1.8 Kgs (3.96 lb)
 Dimension (Main Body Size)
 292.5x 45.8 x 235.8mm
 Operation Temperature
 0℃ to 50℃(with W.T. DRAM/HDD in airflow condition)
 Relative Humidity
 10% to 95% @ 40℃, Non-Condensing
 Vibration
 5 to 500 Hz, 2.0 G random for SSD

5 to 500 Hz, 2.0 G random for CF card
 Power input
 10~30VDC with phoenix power connector
 External 60W AC Adapter
Power Input: 100VAC to 240VAC
—
Power Output: 12VDC, Max. 5A
—
NOTE:All specifications and images are subject to change without notice.
NOTE:If the operation temperature is higher than 35
are recommended to be used o the device.
Introduction
GOT-5100T User's Manual
℃
, the wide temperature DRAM and HDD
3
