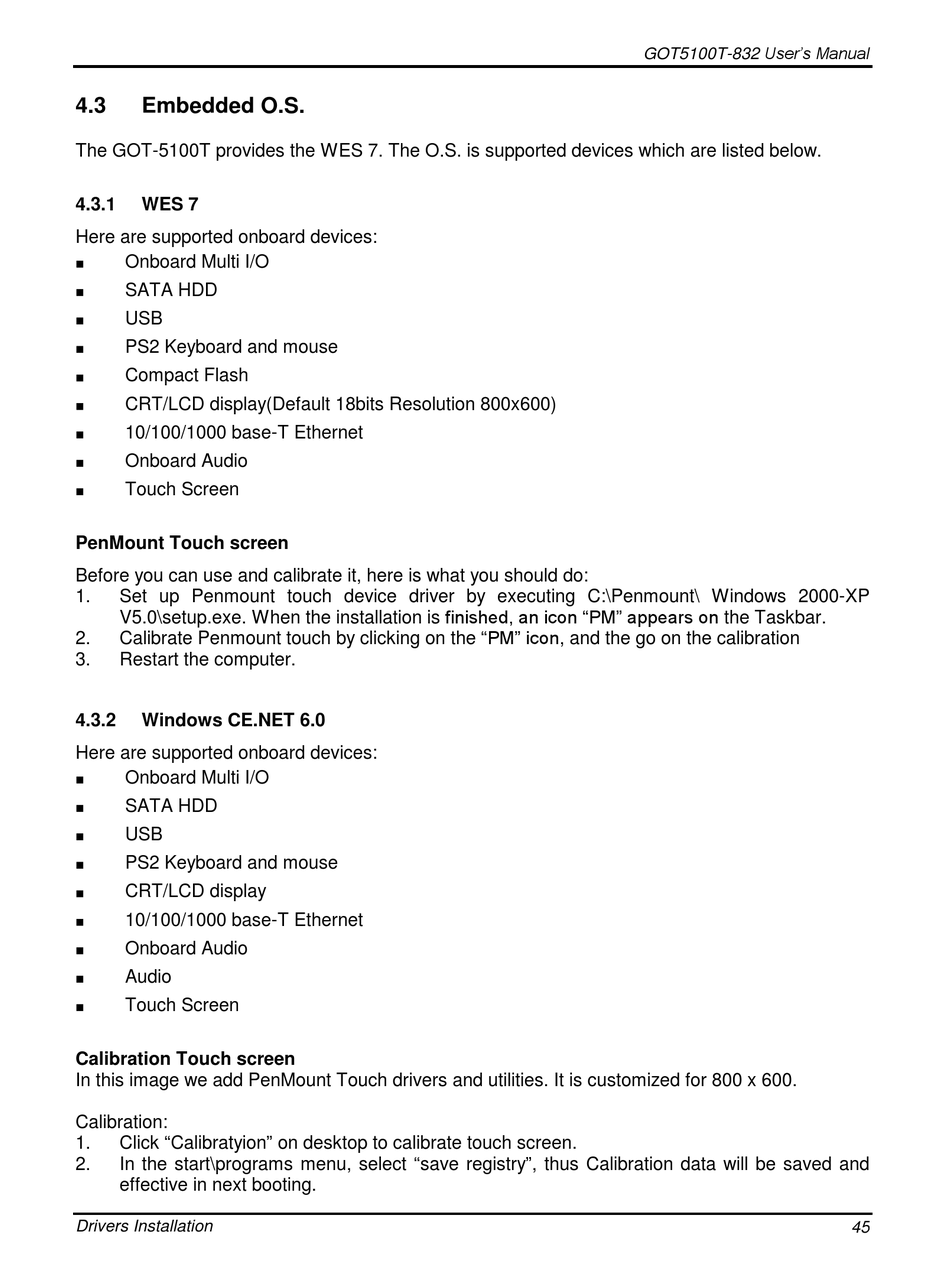

4.3

Embedded O.S.

The GOT-5100T provides the WES 7. The O.S. is supported devices which are listed below.
4.3.1

WES 7

Here are supported onboard devices:
Onboard Multi I/O

SATA HDD

USB

PS2 Keyboard and mouse

Compact Flash

CRT/LCD display(Default 18bits Resolution 800x600)

10/100/1000 base-T Ethernet

Onboard Audio

Touch Screen

PenMount Touch screen
Before you can use and calibrate it, here is what you should do:
1. Set up Penmount touch device driver by executing C:\Penmount\ Windows 2000-XP
V5.0\setup.exe. When the installation is finished, an icon "PM" appears on the Taskbar.
Calibrate Penmount touch by clicking on the "PM" icon, and the go on the calibration
2.
3. Restart the computer.
4.3.2

Windows CE.NET 6.0

Here are supported onboard devices:
Onboard Multi I/O

SATA HDD

USB

PS2 Keyboard and mouse

CRT/LCD display

10/100/1000 base-T Ethernet

Onboard Audio

Audio

Touch Screen

Calibration Touch screen
In this image we add PenMount Touch drivers and utilities. It is customized for 800 x 600.
Calibration:
Click "Calibratyion" on desktop to calibrate touch screen.
1.
In the start\programs menu, select "save registry", thus Calibration data will be saved and
2.
effective in next booting.
