Outback THG2302P-3 Operating Instructions Manual page 9

9

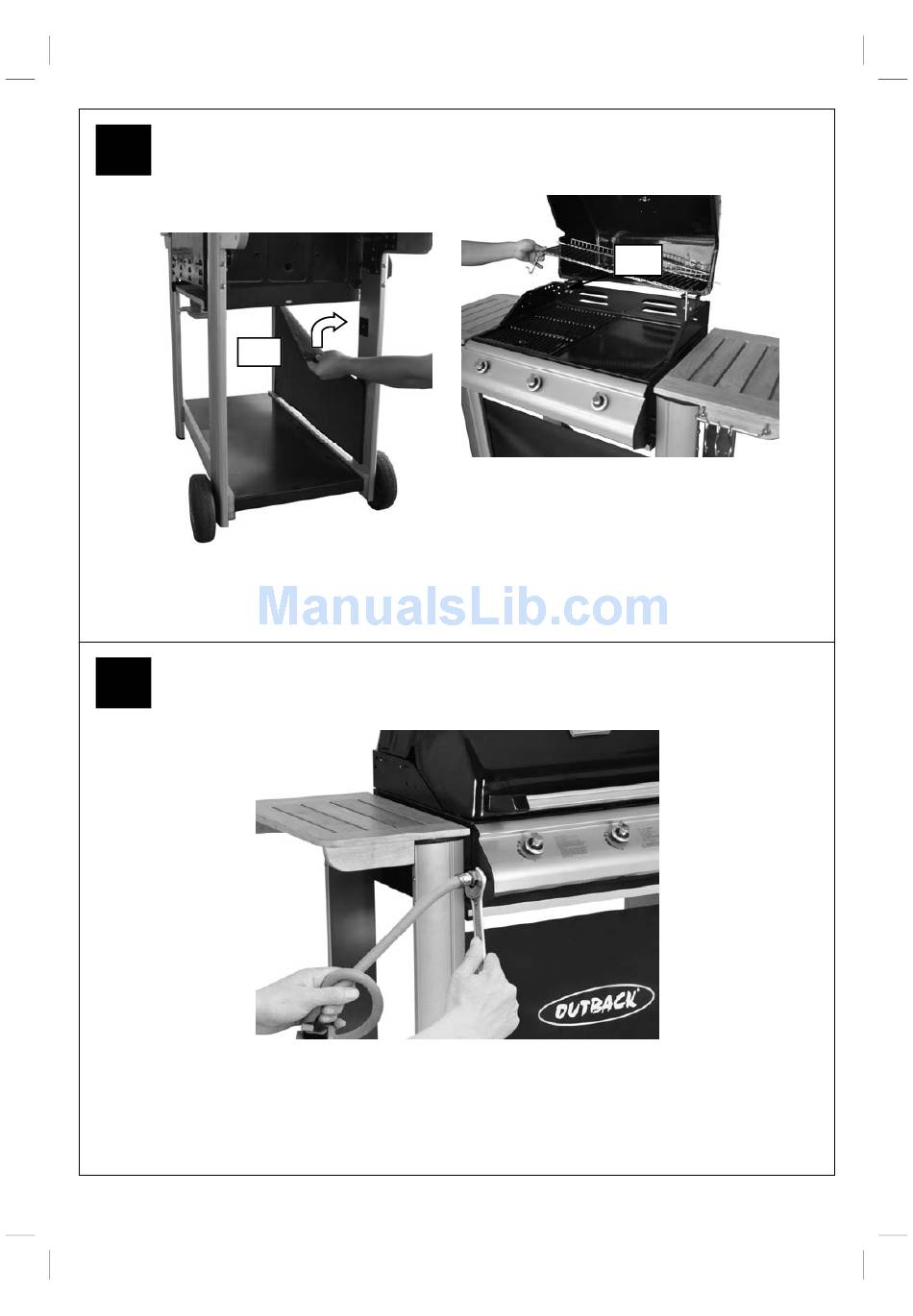

(Rear view of the barbecue trolley.)
C7
Attach the screen (C7) to the front left/
right legs as shown.
10
Connect the Hose and Regulator Assembly (B13) to the barbecue.
Ensure the mating faces of the connection are clean and not damaged. Do not use
any sealing tape, paste, or liquid on the connection. The nut must be tightened with
the use of a spanner. Do not use force which may damage the assembly.
Attach the Warming Rack (A4) to the Hood
(A1) and Barbecue Body (B5) as shown.
Make sure that the swing legs fix to the body
of the barbecue and the shorter fixed legs go
through the holes in the hood.
9
A4
