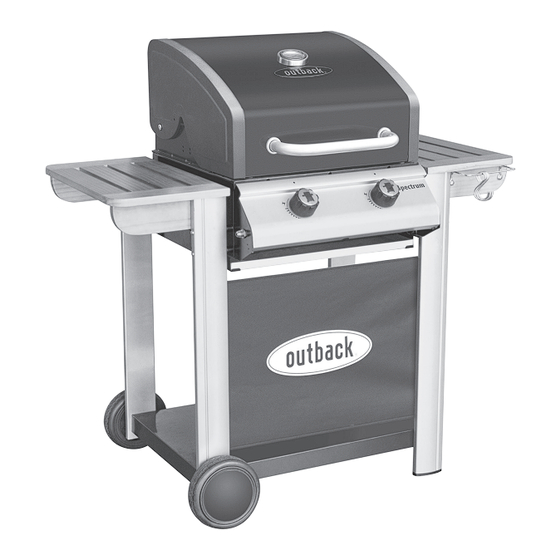

Assembly and Operating Instructions for Outback®
Spectrum Hooded 2 Burner Gas BBQ
Photographs are not to scale.
Specifications subject to change
without prior notice.







WARNING


FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
THG2302PA
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that the
hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

Table of Contents
loading

Related Manuals for Outback Spectrum THG2302PA

Summary of Contents for Outback Spectrum THG2302PA

  • Page 1 Assembly and Operating Instructions for Outback® Spectrum Hooded 2 Burner Gas BBQ THG2302PA Photographs are not to scale. Specifications subject to change 0359 without prior notice.  For outdoor use only. Not for commercial use.  Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram’. Spectrum Hooded CODE PART 2 Burner Gas BBQ Hood (Pre-Assembled to Body)  Hood Handle ...

  • Page 3: Parts Diagrams

    Parts Diagrams Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram’.
  • Page 4 Hardware Reference Diagram Specifications subject to change without prior notice. D4,D5...
  • Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. Remove any internal components or packaging from the barbecue body.  Whilst every care is taken in the manufacture of this product, care must be taken during assembly in ...
  • Page 6 Unscrew the Locknuts (D9) from both ends of the Axle (C10) and remove the Axle Washers (D8). Slide the axle through the corresponding holes in the left legs. Place a axle washer on each end of the axle. Slide the Wheels (C11) over each end of the axle. Secure the wheels into place with the locknuts.
  • Page 7 Insert M6x110 Bolts (D4x8pcs) through the trolley legs, the Spacers (D5x8pcs), and keep the tip of the bolts inside the spacers. While holding the barbecue body into position (2 people required), screw the bolts into the barbecue body as shown. CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or becomes damaged when it is set on the ground.
  • Page 8 Insert the Drip Tray (B7) by sliding it underneath the barbecue body. Place the Flame Tamers (B5) carefully into the body ensuring it lies level within the body. Lay the Cooking Grills (B6) in position.
  • Page 9 Attach the Warming Rack (A4) to barbecue body as shown. (Rear view of the barbecue trolley.) Attach the screen (C7) to the front left/right legs as shown.

  • Page 10: Leak Testing

    Leak Test Diagram 1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.
  • Page 11 Important Information leak test. This is the only safe and sure way to detect any gas leaking from joints and connections of the barbecue after assembly. Please read these instructions carefully before assembly and use of your barbecue.  Leak test annually, and whenever the gas bottle is removed or replaced.

  • Page 12: Installation

    Installation surface, please use a long handled brush to apply a light coat of cooking or vegetable oil before each barbecuing session. (Note: Selecting a Location When cooking for the first time, paint colours This barbecue is for outdoor use only and may change slightly as a result.
  • Page 13  Push and turn the rightmost control knob burners on high when the hood is closed. anti-clockwise to the high position, taking care to protect yourself from the flames. DO NOT ALLOW YOUR BARBECUE TO  When the right burner is lit, turn the OVERHEAT.

  • Page 14: Care And Maintenance

    ‘off’ position. may result in damage to the barbecue. It may  be necessary to dry the barbecue and the Turn off the gas supply at the gas bottle.  inside of the cover. It is possible for mould to Keep everyone at a safe distance from the barbecue and wait until the fire has burnt grow on any fat remaining on parts of the...
  • Page 15 and severely damage the barbecue. This is not The gas bottle should always be stored outside, a fault in the barbecue and is therefore not in a dry, well-ventilated area, away from any covered by the terms of the warranty. If sources of heat or ignition.

  • Page 16: Technical Specifications

    Technical Specifications Notes: Heat Injector Burners Approval Input Size Consumption Spectrum Hooded 2 0359 8.64 Butane: 628g/hr 1.02mm Burner 359BR665 Propane: 617g/hr Gas BBQ Category: I 3+ (28-30/37) Gas / Pressure: G30 Butane at 28-30mbar and G31 Propane at 37mbar Countries of Use: BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK, SI Category: I...

  • Page 17: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using the LP gas bottle is empty Replace with full bottle ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose or disconnected Reconnect wire...
  • Page 18 OUTBACK® WARRANTY OUTBACK® barbecues are warranted for a period of one (1) year from the date of purchase to the original purchaser against defects in materials and workmanship, OUTBACK® will supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
