Assembly and Operating Instructions for Outback®

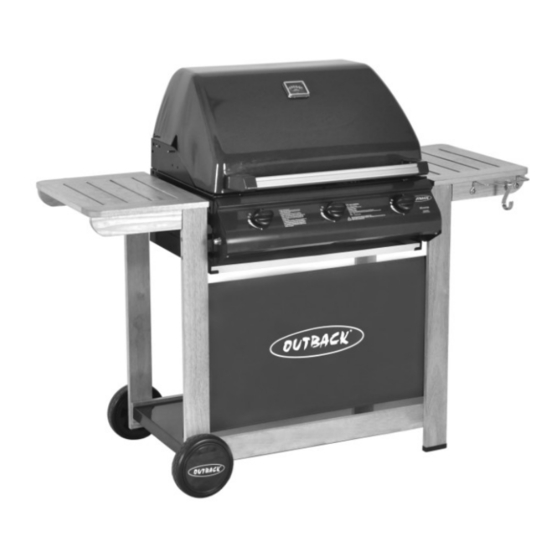

Trooper 2 Burner Hooded and Hunter 3 Burner Hooded Gas Barbecues

THG2302-3

Photographs are not to scale.

Specifications subject to change

without prior notice.

For outdoor use only. Not for commercial use.

Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

Warning: accessible parts may be very hot. Keep young children and pets away.

Do not move the appliance during use.

Turn off the gas supply at the gas bottle after use.

Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory

WARNING

rights.

Retain these instructions for future reference.

Leak test annually, and whenever the gas bottle is removed or replaced. Check that

the hose connections are tight and leak test each time you reconnect the gas bottle.

For Flare-up control please refer to the 'OPERATION' section of this manual.

FOR YOUR SAFETY

If you smell gas:

Shut off gas to the appliance.

Extinguish any open flame.

Open barbecue lid or hood.

If odour continues, discontinue use and

contact your local dealer.

THG3302-3

FOR YOUR SAFETY

Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

A gas bottle not connected for use must not be

stored in the vicinity of this or any other

appliance.

EN (Europe)

0359

Table of Contents

Need help?

Do you have a question about the THG2302-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Outback THG2302-3

Page 1 Assembly and Operating Instructions for Outback® Trooper 2 Burner Hooded and Hunter 3 Burner Hooded Gas Barbecues EN (Europe) THG2302-3 THG3302-3 Photographs are not to scale. Specifications subject to change 0359 without prior notice. For outdoor use only. Not for commercial use.
Page 2: Table Of Contents
1. Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. CODE PART Outback® Trooper Outback® Hunter Hood (Pre-Assembled to Body)  ...
Page 3 2. Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
Page 4 3. Hardware Reference Diagram Specifications subject to change without prior notice. D1,D2,D3 D7,D8...
Page 5 4. Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric spanner set. The assembly of this barbecue requires 2 people. Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case sharp edges are present.
Page 6 Attach one Leg Top Support (C7) between the left legs using the 1/4-20UNCx12 Bolts (D4). Repeat above process for the other leg top support. Insert 1/4-20UNCx22 Step Bolts (D6) on each leg as shown, then attach the Left Side Shelf (C1) and Right Side Shelf (C2) onto the left and right legs using the 1/4-20UNCx22 step bolts.
Page 7 Remove all cooking components, lava rock / flame tamer , and any internal packaging from the Barbecue Body (B1). Insert M6x95 Bolts (D7) through the trolley legs, the Spacers (D8), and keep the tip of the bolts inside the spacers. While holding the barbecue body into position (2 people required), screw the bolts into the barbecue body as shown.
Page 8 Attach Drip Tray Left Bracket (B9) to barbecue body using M5x15 Bolts (D1), Washers (D2) and M5 Nuts (D3) as shown. Repeat the above process for Drip Tray Right Bracket (B10). NOTE: Ensure that the big tabs of the brackets which stop the drip tray are located at the front of the barbecue.
Page 9: Warming Rack
Carefully lay the Lava Rock / Flame Tamer (B6) into the barbecue body ensuring it lies level within the body. Lay the Grill (B7) and Griddle (B8) into place. 2/3 burner model configuration: Left — Cooking Grill, Right — Cooking Griddle NOTE: Ensure that the lava rock lies directly underneath the grills.
Page 10 (Rear view of the barbecue trolley.) Attach the screen (C8) to the front left / right legs as shown. Connect the gas hose to the barbecue. Ensure the mating faces of the connection are clean and not damaged. Do not use any sealing tape, paste, or liquid on the connection.
Page 11 Turn off the gas supply at the gas bottle Retighten all joints Repeat test If bubbles form again do not use the barbecue and contact your local Outback distributor for assistance. Always wipe the mixed solution (½ water and ½ liquid detergent / soap) from all joints and...
Page 12: Burner
5. Important Information  Before you use your barbecue, perform a leak test. This is the only safe and sure way Please read these instructions carefully to detect any gas leaking from joints and before assembly and use of your barbecue. connections of the barbecue after assembly.
Page 13: Knob
INCORRECT OR FAULTY REGULATOR IS solid plate — this includes baking dishes. DANGEROUS AND WILL INVALIDATE ANY Full coverage will cause excessive build-up WARRANTY. Please consult your local gas of heat and damage the barbecue. This is dealer for the most suitable gas bottles and not covered by warranty.
Page 14: Knob
Ensure all knobs are in the off position. For best results, place the food you wish to Open the gas control valve on the gas bake or roast on a metal baking tray and set it bottle or regulator. on one side of the cooking grill. Insert lit match through the right match- Turn the burner directly under the food to the lighting hole on the right side of the...
Page 15: Drip Tray
The time between cleaning may need to be barbecue covers and other accessories are reduced if very fatty foods or cheap meat available from your local Outback® stockist. products are being cooked. Failure to do this may result in a fat fire, which may cause injury Even when your barbecue is covered for its and could seriously damage the barbecue.
Page 16: Washer
Replacement lava rock is available from your local Outback® stockist. A chrome cleaner may be used on chrome parts if required. To prevent rusting, wipe 9.5.
Page 17 1.02mm 30 mbar LPG mixture Hooded and tightened on a regular basis. Gas Consumption: Outback® Trooper 2 Burner: 628g/hr 9.10. Storage Outback® Hunter 3 Burner: 943g/hr Ensure the barbecue is properly cooled before Countries of Use: covering or storing. Store your barbecue in a BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, cool dry place.
Page 18: Troubleshooting
11. Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is loose Reconnect wire...
