Assembly and Operating Instructions for Outback
Photographs are not to scale.
Specifications subject to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and contact
your local dealer.

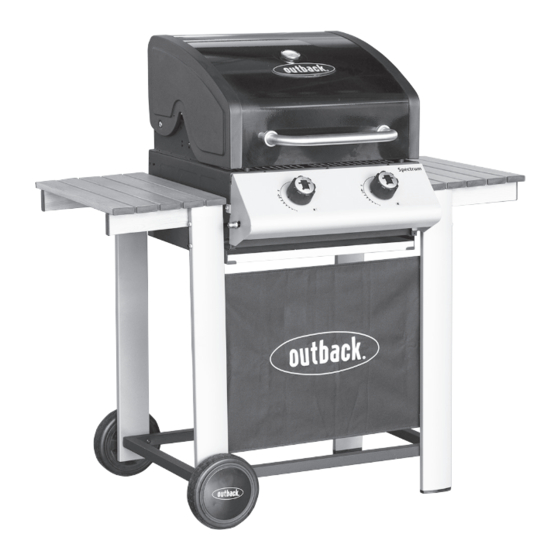

Spectrum 2 Burner Gas Barbecue
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that the
hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
THG2302PH
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
®
2575
FOR YOUR SAFETY
0359
Advertisement
Table of Contents
Related Manuals for Outback Spectrum THG2302PH
Summary of Contents for Outback Spectrum THG2302PH
- Page 1 ® Assembly and Operating Instructions for Outback Spectrum 2 Burner Gas Barbecue THG2302PH Photographs are not to scale. Specifications subject to change 2575 0359 without prior notice. For outdoor use only. Not for commercial use. Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.
-
Page 2: Parts List
Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‗Hardware Reference Diagram‘. CODE PART Spectrum 2 Burner Gas Barbecue Hood (Pre-Assembled to Body) HOOD Hood Handle ... -
Page 3: Parts Diagrams
Parts Diagrams Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‗Hardware Reference Diagram‘. - Page 4 Hardware Reference Diagram Specifications subject to change without prior notice. D1,D2,D3 M5x15 BOLT 4PCS, M5 NUT 4PCS, WASHER 4PCS D4,D5 M6x110 BOLT 8PCS, SPACER 8PCS...
- Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric spanner set. Remove any internal components or packaging from the barbecue body. Whilst every care is taken in the manufacture of this product, care must be taken during assembly in ...
- Page 6 Unscrew the Locknuts (D9x2) from both ends of the Axle (C9) and remove the Axle Washers (D8x2). Slide the axle through the corresponding holes in the left legs. Place an axle washer on each end of the axle. Slide a Wheel (C10) over each end of the axle. Secure the wheels into place with the locknuts.
- Page 7 Remove any internal components or packaging from the Barbecue Body (B1). Insert M6x110 Bolts (D4x8pcs) through the trolley legs, the Spacers (D5x8pcs), and keep the tip of the bolts inside the spacers. While holding the barbecue body into position (2 people required), screw the bolts into the barbecue body as shown.
- Page 8 Insert the Drip Tray (B10) by sliding it underneath the barbecue body. Place the Flame Tamers (B6) over burners in barbecue body, ensure it lies level within the body. Lay the Cooking Grills (B6) in position.
- Page 9 (Rear view of the barbecue trolley.) Attach the Screen (C6) to the front left/right legs as shown. ASSEMBLY IS NOW COMPLETE.
-
Page 10: Leak Testing
Leak Test Diagram 1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE. -
Page 11: Gas, Regulator And Hose
Important Information to detect any gas leaking from joints and connections of the barbecue after assembly. Please read these instructions carefully Leak test annually, and whenever the gas before assembly and use of your barbecue. bottle is removed or replaced. ... -
Page 12: Installation
WARRANTY. In the case of replacing your Preparation Before Cooking original hose and regulator, please consult your To prevent foods from sticking to the cooking local gas dealer for the most suitable regulators surface, please use a long handled brush to and gas bottles. - Page 13 anti-clockwise to the high position, taking opening the hood. care to protect yourself from the flames. Flare-Up Control *Very Important* When the right burner is lit, turn the Flare-ups occur when meat is barbecued, and remaining burners on from right to left. its fat and juices fall upon the hot flame tamer.
-
Page 14: Care And Maintenance
minutes. This procedure will burn off cooking cleaning in a dishwasher. residue, thus making cleaning easier. Make sure the hood or lid is open during this process. Burner Provided that they are operating correctly, in Turning Off Your Barbecue normal usage, burning off the residue after When you have finished using your barbecue, cooking will keep the burners clean. - Page 15 hot, soapy water. Do not use scouring pads or powders as they can permanently damage the finish. Trolley Wipe with a cloth wrung out in hot soapy water and dry. The wood used in the manufacture of your barbecue will naturally weather and change its appearance.
-
Page 16: Technical Specifications
Technical Specifications Notes: Heat Injector Burners Input Size Consumption ® Outback Spectrum 2 Butane:628g/hr 8.64kW 1.02mm Burner Gas Propane:617g/hr Barbecue CE Approval Pin Number: 2575DM30422 UKCA Approval Pin Number: 0359BR665 Category: I 3+ (28-30/37) Gas / Pressure: G30 Butane at 28-30mbar and G31 Propane at 37mbar... -
Page 17: Troubleshooting
Troubleshooting Problem Possible Cause Solution Burner will not light using the LP gas bottle is empty Replace with full bottle ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose or disconnected Reconnect wire... - Page 18 The product has not sustained damage through foreign objects, substances or accidents. The care and maintenance instructions given in your Outback manual have been followed. If the product includes one or a number of parts or accessories, only the defective accessory or part will be replaced i.e.
