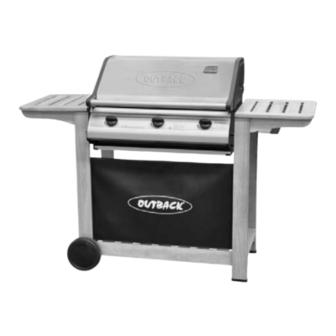

Assembly and Operating Instructions for Outback®
Hunter Stainless Steel Gas Barbecue
Photographs are not to scale.
Specifications subject to change
without prior notice.
•
For outdoor use only.
•
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
•
Warning: accessible parts may be very hot. Keep young children away.
•
Do not move the appliance during use.
•
Turn off the gas supply at the gas bottle after use.
•
Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
•
WARNING
Retain these instructions for future reference.
•
Leak test annually, and whenever the gas bottle is removed or replaced. Check
the hose connections are tight and leak test each time you reconnect the gas
bottle.

FOR YOUR SAFETY

If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
THG3302S
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THG3302S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Outback THG3302S

Summary of Contents for Outback THG3302S

  • Page 1: For Your Safety

    Assembly and Operating Instructions for Outback® Hunter Stainless Steel Gas Barbecue THG3302S Photographs are not to scale. Specifications subject to change 0359 without prior notice. • For outdoor use only. • Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    A. Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Outback® Hunter CODE PART Stainless Steel Hood (Pre-Assembled to Body) Hood Handle...

  • Page 3: Parts Diagram

    B. Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
  • Page 4 C. Hardware Reference Diagram Specifications subject to change without prior notice. D1, D2, D3 D5, D6...
  • Page 5 D. Assembly IMPORTANT! • TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric spanner set. • The assembly of this barbecue requires 2 people. • Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case sharp edges are present.
  • Page 6 Turn the trolley over so that it stands on its side shelves. Unscrew the Locknuts (D8) from both ends of the Axle (C10) and remove the Axle Washers (D7). Slide the axle through the corresponding holes in the left legs. Place axle washers on each end of the axle.
  • Page 7 Lay the assembled trolley on its side. Lay the Barbecue Body (B1) on its back and slide into position between the trolley legs. CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or becomes damaged when it is set on the ground. When positioning the body of the barbecue, ensure the control panel is on the same side as the legs with Velcro fastenings.
  • Page 8 Carefully stand the barbecue upright, taking care to ensure the hood or lid does not fall open unexpectedly. Attach Drip Tray Right Bracket (B11) to barbecue body using M5x15 Bolts (D1), Ø5 Washers (D2) and M5 Nuts (D3) as shown. Repeat above process for Drip Tray Left Bracket (B10). Insert the Drip Tray (B12) by sliding it underneath the barbecue body.
  • Page 9 Carefully lay the Lava Rock (B6) into the body ensuring it lies level within the body. Lay the Grills (B7, B8) and Griddle (B9) into place. 3 burner model configuration: Left — Cooking Grills, Right — Cooking Griddle, NOTE: Ensure that the lava rock lies directly underneath the grills. Insert the Warming Rack (A6) into the hood and barbecue body.
  • Page 10 Connect the gas hose to the barbecue. Ensure the mating faces of the connection are clean and not damaged. Do not use any sealing tape, paste, or liquid on the connection. The nut must be tightened with the use of a spanner. Do not use force which may damage the assembly. (Rear view of the barbecue trolley.) Attach the Front Screen (C6) to the front left/right legs as...
  • Page 11 ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE Leak Test Diagram ALL JOINTS AND CONNECTIONS MUST LEAK TESTED BEFORE USING THE BBQ. FOR DETAILS LEAK TESTING, PLEASE REFER TO INSTRUCTIONS ON PAGE 13.

  • Page 12: Installation

    When igniting barbecue open its hood before Model Butane Minimum Propane Minimum lighting. Bottle Size Bottle Size Do not move the barbecue while alight. Outback® This barbecue must not be left unattended Hunter when lit. 15kg 10kg Stainless The hood handle can become very hot. Grip Steel only the centre of the handle.

  • Page 13: Operation

    is switched off, and that there are no sources of long handled brush to apply a light coat of cooking ignition (cigarettes, open flame, sparks, etc.) near or vegetable oil before each barbecuing session. before proceeding. Inspect the gas hose to ensure it is free of any twisting or tension.
  • Page 14 tamers and vaporise to form smoke. The smoke rod and balanced so that the rotisserie can then rises and ‘bastes’ the food, giving it that rotate freely without interference from any unique barbecued flavour. barbecue surfaces. Any loose sections of meat should be secured so they do not hang When using your barbecue for grill cooking you down and interfere with the rotation of the spit...

  • Page 15: Care And Maintenance

    Outback® wire brush. barbecue covers and other accessories are available from your local Outback® stockist. Clean the portholes with a pipe cleaner or piece of wire. Take care not to enlarge the portholes. Even when your barbecue is covered for its...

  • Page 16: Technical Specifications

    Replacement lava rock is available from I9. Fixings your local Outback® stockist. All screws and bolts, etc. should be checked and tightened on a regular basis. I4. Drip Tray After every use, check the drip tray for fat build up I10.

  • Page 17: Troubleshooting

    K. Troubleshooting Problem Possible Cause Solution Burners will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replace Obstructions in burners Clean burners Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose or disconnected Reconnect wire...
  • Page 18 OUTBACK barbecues are warranted to the original purchaser against defects in materials and workmanship for a period of one (1) year from the date of purchase. OUTBACK UK will, within this period, supply replacements for defective parts free of charge provided that: ♦...

This manual is also suitable for:
