Outback Trooper Assembly And Operating Instructions Manual

2 burner gas bbq
Hide thumbs Also See for Trooper:
Table of Contents

Advertisement

Quick Links

Assembly and Operating Instructions for Outback®
Photographs are not to scale.
Specifications subject to change
without prior notice.
•
For outdoor use only. Not for commercial use.
•
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
•
Warning: accessible parts may be very hot. Keep young children and pets away.
•
Do not move the appliance during use.
•
Turn off the gas supply at the gas bottle after use.
•
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
•
Retain these instructions for future reference.
WARNING
•
Leak test annually, and whenever the gas bottle is removed or replaced. Check that the
hose connections are tight and leak test each time you reconnect the gas bottle.
•
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.

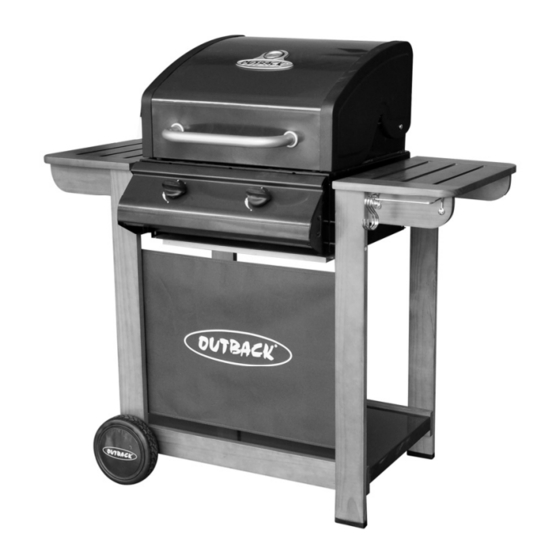

Trooper 2 Burner Gas BBQ
THG2302-6
1.
2.
FOR YOUR SAFETY
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

Table of Contents
loading

Related Manuals for Outback Trooper

Summary of Contents for Outback Trooper

  • Page 1 Assembly and Operating Instructions for Outback® Trooper 2 Burner Gas BBQ THG2302-6 Photographs are not to scale. Specifications subject to change 0359 without prior notice. • For outdoor use only. Not for commercial use. • Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram’. Outback® Trooper CODE PART 2 Burner Gas BBQ Hood (Pre-Assembled to Body) Hood Handle HOOD...

  • Page 3: Parts Diagrams

    Parts Diagrams Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see hardware pack page.
  • Page 4 Hardware Reference Diagram Specifications subject to change without prior notice. D4,D5...
  • Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, • adjustable spanner or metric spanner set. Remove any internal components or packaging from the barbecue body. • Whilst every care is taken in the manufacture of this product, care must be taken during assembly in •...
  • Page 6 Attach the Left Side Shelf (C1) and Right Side Shelf (C2) onto left and right legs using the 1/4-20UNCx25 Bolts(D6x16pcs) . Remove all cooking components, Cooking Grill, Lava Rock, Lava Rock Basket, and any internal packaging from the barbecue body.
  • Page 7 Insert M6x95 Bolts (D4x8pcs) through the trolley legs, the Spacers (D5x8pcs), and keep the tip of the bolts inside the spacers. While holding the barbecue body into position (2 people required), screw the bolts into the barbecue body as shown. CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or becomes damaged when it is set on the ground.
  • Page 8 Unscrew retaining bolts from Drip Tray Handle (B9). Fix the drip tray handle onto Drip Tray (B8) using the retaining bolts. Insert the drip tray by sliding it underneath the barbecue body. Remove the plastic wrap from the Lava Rock (B2) and then place a uniform layer into Lava Rock Basket (B3).
  • Page 9 Rear view of the barbecue trolley.) Attach the screen (C7) to the front left/right Attach the Warming Rack (A4) to barbecue body as shown. legs as shown. Connect the Hose and Regulator Assembly (B12) to the barbecue. Ensure the mating faces of the connection are clean and not damaged. Do not use any sealing tape, paste, or liquid on the connection.

  • Page 10: Leak Testing

    Leak Test Diagram 1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.

  • Page 11: Gas, Regulator And Hose

    Important Information Before you use your barbecue, perform a leak test. This is the only safe and sure way to detect any gas leaking from joints and Please read these instructions carefully connections barbecue after before assembly and use of your barbecue. assembly.

  • Page 12: Installation

    local gas dealer for the most suitable regulators of heat and damage the barbecue. This is and gas bottles not covered by warranty. Preparation Before Cooking Installation To prevent foods from sticking to the cooking surface, please use a long handled brush to Selecting a Location apply a light coat of cooking or vegetable oil This barbecue is for outdoor use only and...
  • Page 13 or regulator. If the internal heat becomes too high, turn the • Insert lit match through the right match- burners down to the low position. It is not lighting hole on the right side of the necessary or advisable to have all of the burners on high when the hood is closed.

  • Page 14: Care And Maintenance

    In the event of a fat fire: protection, it must be inspected on a regular • If safe to do so, turn all control knobs to the basis as damp or condensation can form which ‘off’ position. may result in damage to the barbecue. It may •...
  • Page 15 (and foil liner, if applicable) of any fat or food Cover the burners with aluminium foil in order to particles, using a plastic or wooden scraper if prevent insects or other debris from collecting in necessary. burner holes. Failure to keep it clean, and excessive build up If the barbecue is to be stored indoors, the gas can result in a fat fire.

  • Page 16: Technical Specifications

    Burner 359BR665 Gas BBQ Gas Consumption: Outback® Trooper 2 Burner Gas BBQ: 628g/hr Countries of Use: BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK, 3+ (28-30/37) Specifications are subject to change without prior notice.

  • Page 17: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using the LP gas bottle is empty Replace with full bottle ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose or disconnected Reconnect wire...
  • Page 18 OUTBACK® WARRANTY OUTBACK® barbecues are warranted for a period of one (1) year from the date of purchase to the original purchaser against defects in materials and workmanship, OUTBACK® will supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.

This manual is also suitable for:

Spectrum thg2302p-6
