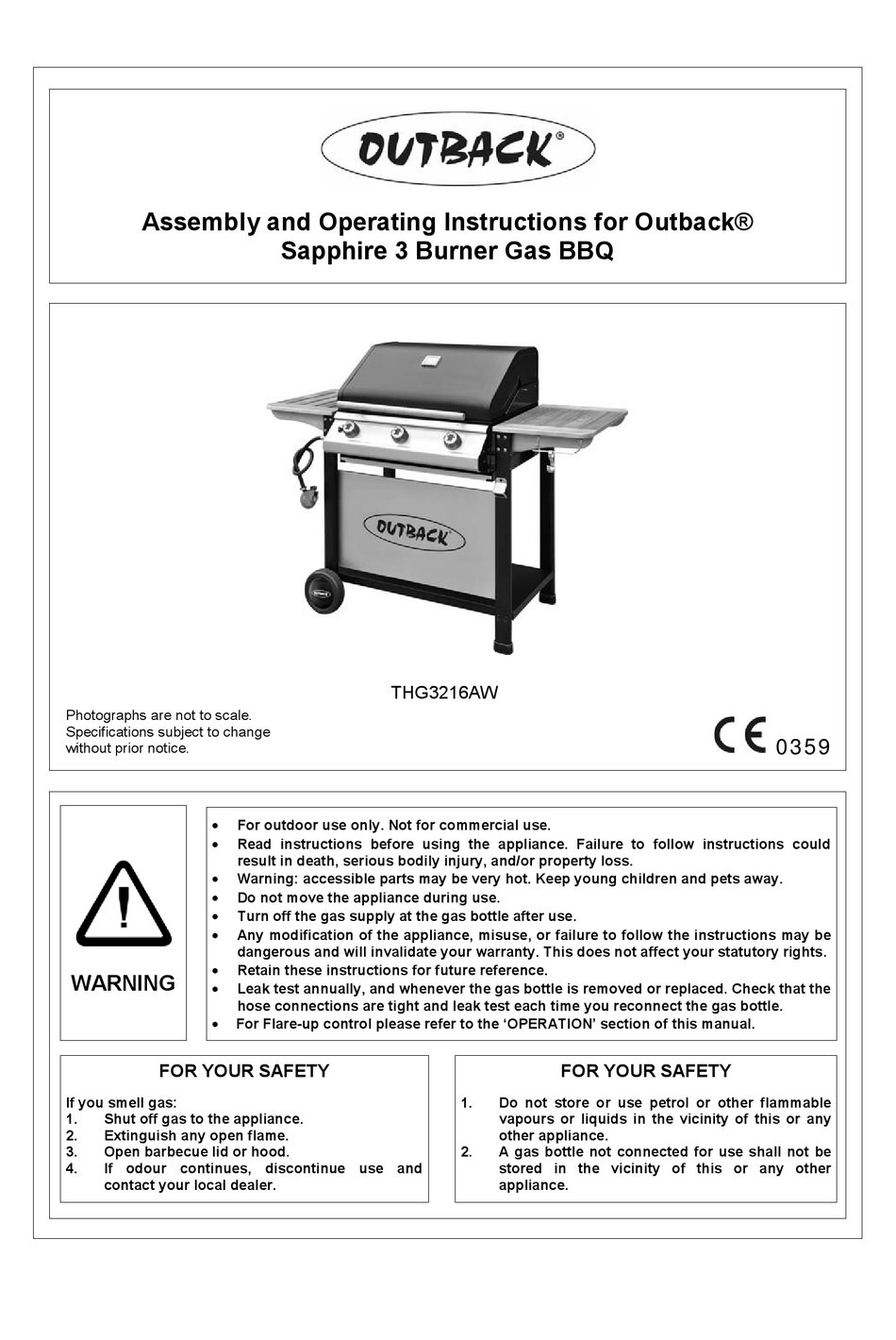

Assembly and Operating Instructions for Outback®
Photographs are not to scale.
Specifications subject to change
without prior notice.







WARNING


FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.

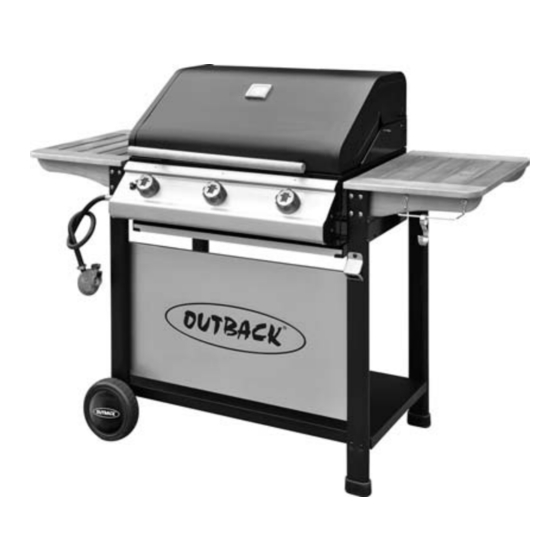

Sapphire 3 Burner Gas BBQ
THG3216AW
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that the
hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sapphire THG3216AW and is the answer not in the manual?

Questions and answers

Related Manuals for Outback Sapphire THG3216AW

Summary of Contents for Outback Sapphire THG3216AW

  • Page 1 Assembly and Operating Instructions for Outback® Sapphire 3 Burner Gas BBQ THG3216AW Photographs are not to scale. Specifications subject to change 0359 without prior notice.  For outdoor use only. Not for commercial use.  Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram’. CODE PART Sapphire 3 Burner Gas BBQ Hood (Pre-Assembled to Body)  Hood Handle  HOOD Hood Handle Spacers ...

  • Page 3: Parts Diagrams

    Parts Diagrams Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see hardware pack page.
  • Page 4 Hardware Reference Diagram Specifications subject to change without prior notice. D8,D9 D1,D2,D3 D7,D5...
  • Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. Remove any internal components or packaging from the barbecue body.  Whilst every care is taken in the manufacture of this product, care must be taken during assembly in ...
  • Page 6 LEFT RIGHT Insert M6x90 Bolts (D8x8pcs) through the trolley legs and M6 Spacer (D9x8pcs). While holding the barbecue body into position (2 people required), screw the bolts into the barbecue body as shown. CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or becomes damaged when it is set on the ground.
  • Page 7 Attach the Tool Hook (C2) to the Side Shelf (C1) using 1/4-20UCNx12 Bolts (D11x2pcs). Attach the side shelf assembly to the right front/rear legs using 1/4 20UCNx35 Bolts (D10x8pcs) as shown.
  • Page 8 Attach the Side Shelf (C1) to the Left Front/Rear Legs using 1/4 20UCNx35 Bolts (D10x8pcs) as shown. Carefully lay Flame Tamers (B7) into the barbecue body ensuring it lies level within the boy. Lay the Cooking Grills (B9) and Round Grill(B8) into place. Ensure the cooking grill lies directly over the flame tamer on the barbecue body.
  • Page 9 ① Step LEFT ② Step ③ Step RIGHT ④ Step Attach the Warming Rack (A5) to the Hood (A1) and Barbecue Body (B1) as shown. Make sure that the swing legs fix to the body of the barbecue and the shorter fixed legs go through the holes in the hood.
  • Page 10 Insert the Bottle Opener (C7) to into the corresponding hole on right front leg as shown, then fix it by using M6x15 Bolt (D4x1pc). (Rear view of the barbecue trolley) Attach the Front Screen (C8) to the front left/right legs using ST4.0x10 Screws (D6x6pcs) as shown.

  • Page 11: Leak Testing

    Leak Test Diagram 1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.
  • Page 12 Important Information leak test. This is the only safe and sure way to detect any gas leaking from joints and connections of the barbecue after assembly. Please read these instructions carefully before assembly and use of your barbecue.  Leak test annually, and whenever the gas bottle is removed or replaced.

  • Page 13: Installation

    Installation surface, please use a long handled brush to apply a light coat of cooking or vegetable oil before each barbecuing session. (Note: Selecting a Location When cooking for the first time, paint colours This barbecue is for outdoor use only and may change slightly as a result.
  • Page 14 burner porthole. burners on high when the hood is closed.  Push and turn the rightmost control knob anti-clockwise to the high position, taking DO NOT ALLOW YOUR BARBECUE TO care to protect yourself from the flames. OVERHEAT. Be careful of hot steam when ...

  • Page 15: Care And Maintenance

     Turn off the gas supply at the gas bottle. be necessary to dry the barbecue and the  inside of the cover. It is possible for mould to Keep everyone at a safe distance from the grow on any fat remaining on parts of the barbecue and wait until the fire has burnt out.
  • Page 16 necessary. Cover the burners with aluminium foil in order to prevent insects or other debris from collecting in Failure to keep it clean, and excessive build up burner holes. can result in a fat fire. This can be hazardous and severely damage the barbecue. This is not If the barbecue is to be stored indoors, the gas a fault in the barbecue and is therefore not bottle must be disconnected and left outside.

  • Page 17: Technical Specifications

    Technical Specifications Notes: Heat Injector Burners Approval Input Size Consumption Sapphire 0359 12.96 Butane: 943g/hr 3 Burner 1.02mm 359BR665 Propane: 926g/hr Gas BBQ Category: I 3+ (28-30/37) Gas / Pressure: G30 Butane at 28-30mbar and G31 Propane at 37mbar Countries of Use: BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK, SI Category: I 3B/P(30)

  • Page 18: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is loose Reconnect wire...
  • Page 19 OUTBACK® WARRANTY OUTBACK® barbecues are warranted for a period of one (1) year from the date of purchase to the original purchaser against defects in materials and workmanship, OUTBACK® will supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
