Assembly
IMPORTANT!
•
TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
•
Remove any internal components or packaging from the barbecue body.
•
Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
•
Please read the Important Information section carefully before assembly and use of your
barbecue.

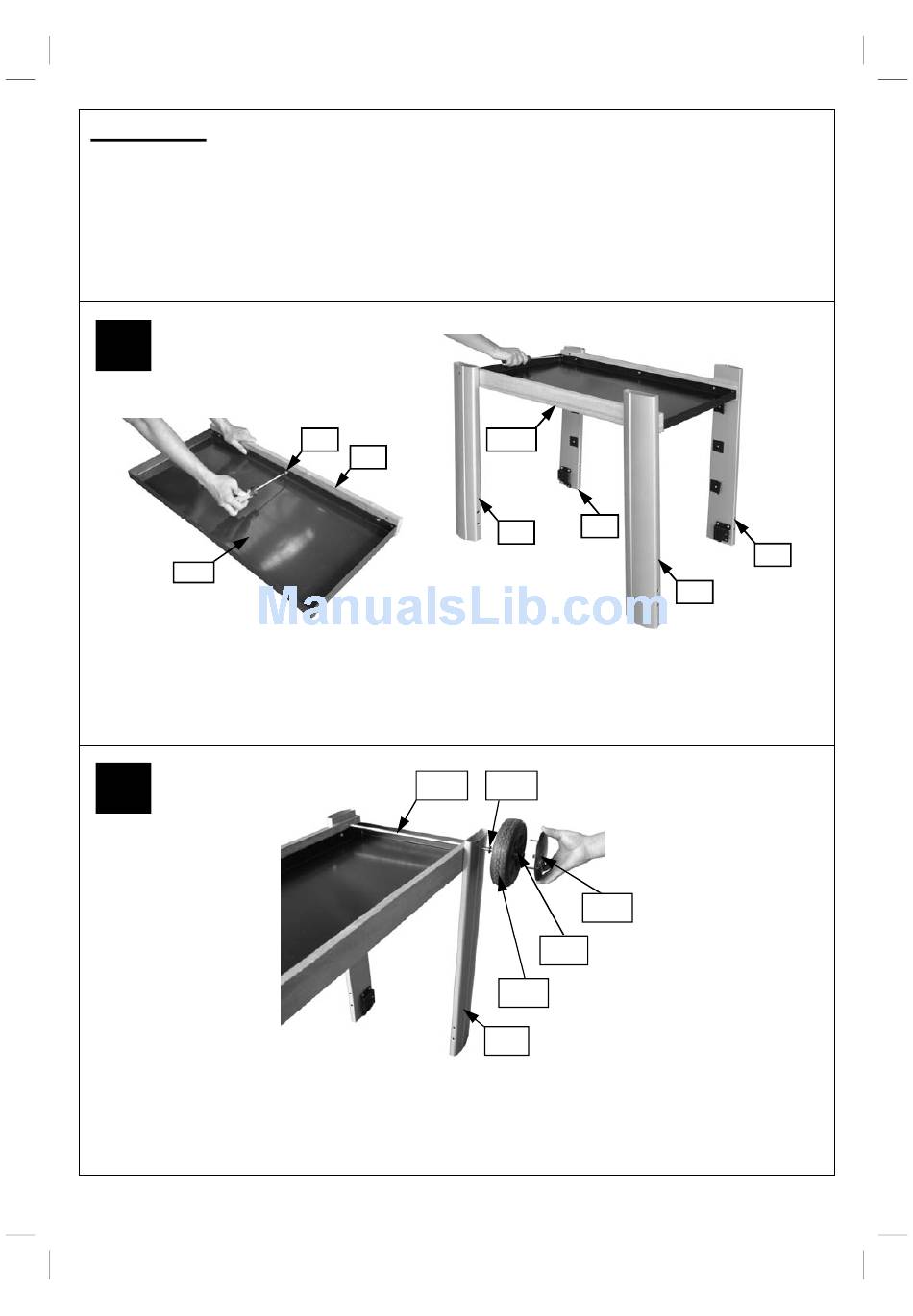

1
C9
Attach the Front Fixing Support (C8) and Rear Fixing Support (C10) onto the Trolley Base (C9) by
aligning corresponding holes and fixing with the 1/4-20UNCx12 Bolts (D8). Then attach the Legs
(C3, C4, C5, C6) to the trolley base assembly using the M6x25 Bolts (D7). Ensure that the legs
with the Velcro attached to them are at the front of the barbecue, facing inwards.
2
Unscrew the Locknuts (D10) from both ends of the Axle (C12) and remove the Axle Washers
(D9). Slide the axle through the corresponding holes in the left legs. Place axle washers on each
end of the axle. Slide the Wheels (C13) over each end of the axle. Secure the wheels into place
with the locknuts. Place the wheel Hubcaps (C14) onto the outsides of the wheels.
D8
C8
(Photo depicts trolley
from the reverse side)
C12
5
C10
C3
C4
D9
C14
D10
C13
C3
C5
C6
