5
D4

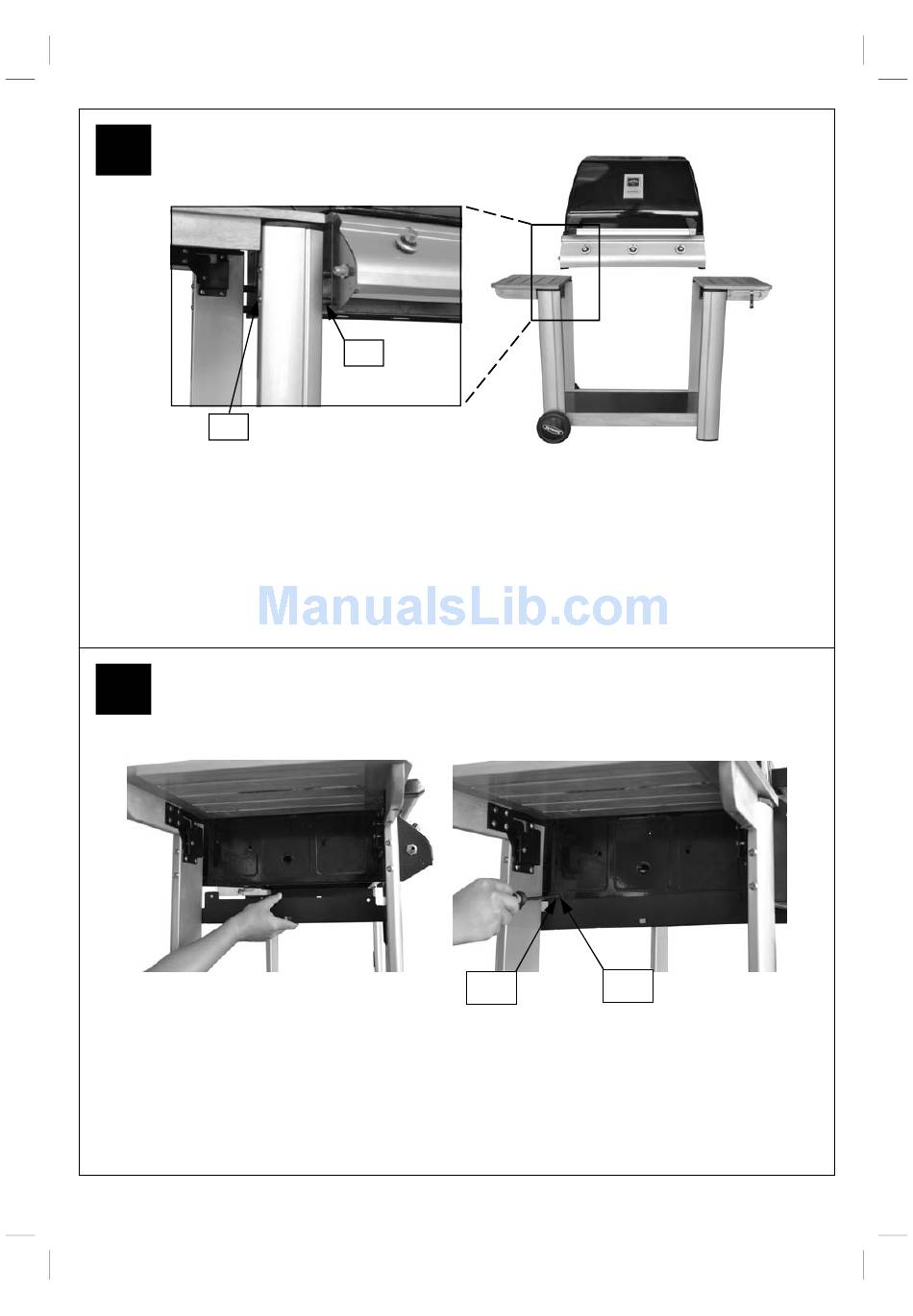

Insert M6x145 Bolts (D4) through the trolley legs, the Spacers (D5), and keep the tip of the bolts
inside the spacers. While holding the barbecue body into position (2 people required), screw the
bolts into the barbecue body as shown.
CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly
or becomes damaged when it is set on the ground.
When positioning the body of the barbecue, ensure the control panel is on the same side as the
legs with Velcro fastenings.
6
Attach Drip Tray Left Bracket (B10) to barbecue body using M5x15 Bolts (D1), Washers (D2)
and M5 Nuts (D3) as shown. Repeat above process for Drip Tray Right Bracket (B11).
NOTE: Ensure that the big tabs of the brakets which stop the drip tray are located at the
front of the barbecue.
D5
D1
7
D2
