Joining The Wing Halves - Phoenix Model Spitfire Instruction Manual

3

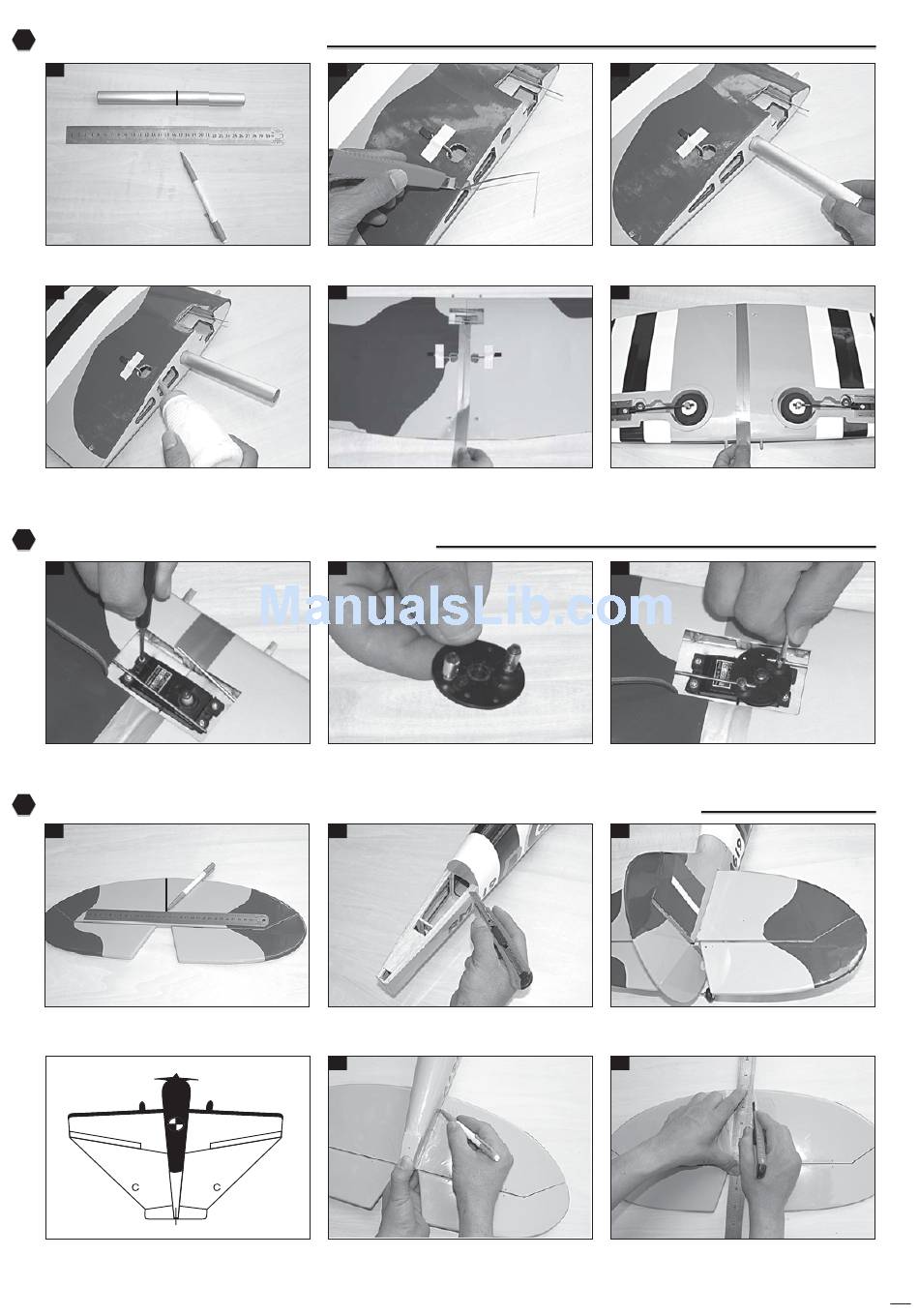

Joining the wing halves.

26
Center line
Draw a center line.
29
Apply the epoxy onto the wing section.
4 Installing the landing gear servo.
32
Install the gear servo.
5
Installing the horizontal stabilizer and vertical stabilizer.
35
Center line
Make a center line onto the horizontal.
27
Remove the covering.
30
Fix the wing and apply the trim tape to
the center section on the top of the
wing where they join.
33
Install two metal connector to the servo
arm.
36
Removethe covering from the rear of
the fuselage.
38
Mark the shape of the fuselage onto the
bottom of the horizontal.
28
Glue the wing joiner to the wing, using
the epoxy glue.
31
Apply the trim tape to the center
section on the bottom of the wing
where they join.
34
Install the servo arm and attach two
rods to the metal connector, secure the
servo arm.
37
Attach the horizontal to the fuselage
and measure as photo below.
39
Cut away the covering.
