Installing The Throttle Servo; Installing The Switch - Phoenix Model Spitfire Instruction Manual

81

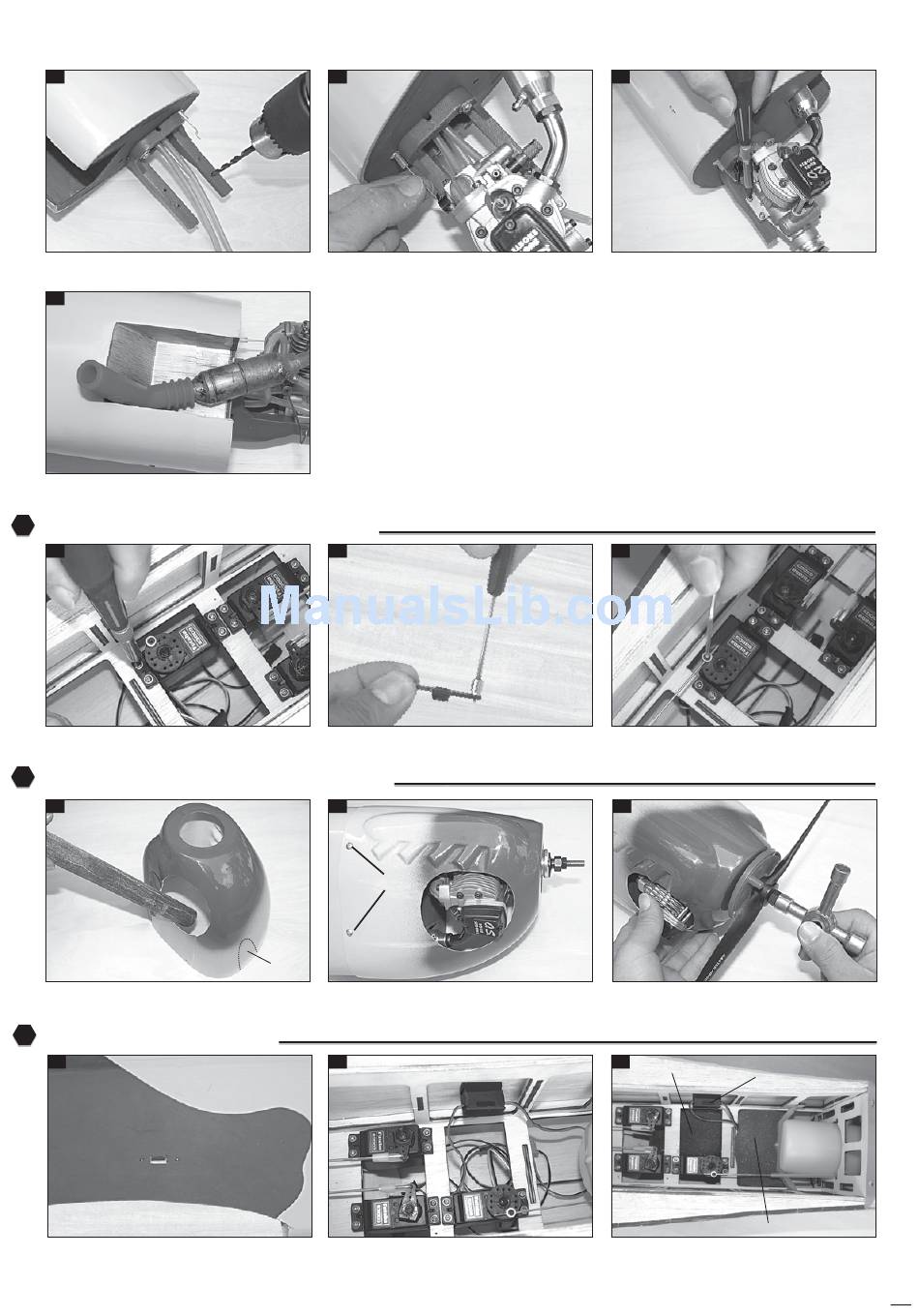

Drill four holes onto the engine mount.
84
Install the silicone exhaust (not included
in the kit)
11

Installing the throttle servo.

85
Install the throttle servo.
12
Installing the cowling, propeller.
88
Prepare the cowling.
13

Installing the switch.

91
Cut away the wood.
82
Attach the throttle rod to the arm of
the carburator.
86
Install the metal connector to the servo
arm.
89
Screw
Cut
Install the cowling and secure it.
92
Install and secure the switch.
83
Install the engine and secure it.
87
Attach the throttle rod into the metal
connector and secure it.
90
Install the propeller.
93
Receiver Switch
Battery
Install the radio.
