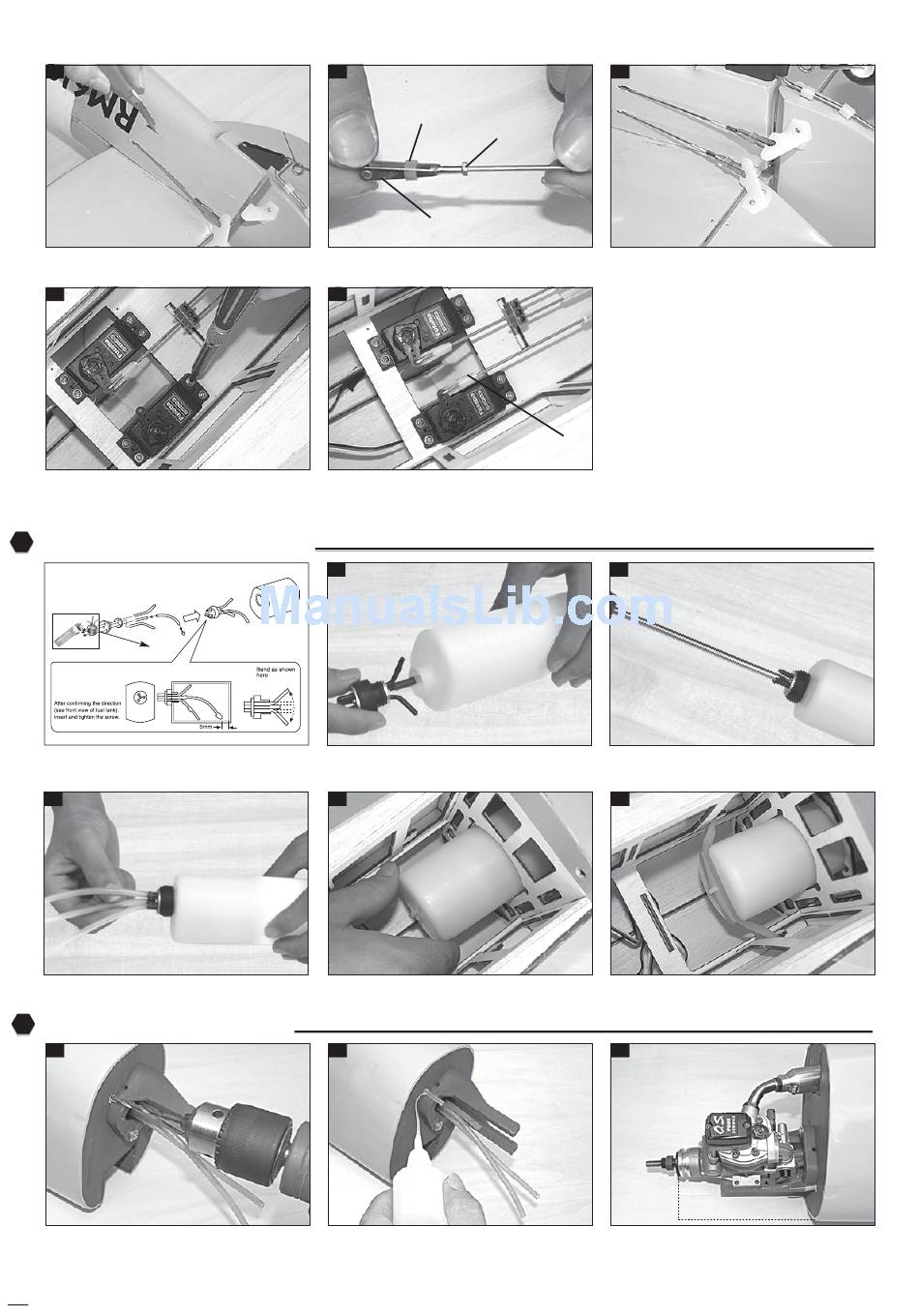

Installing The Fuel Tank; Installing The Engine - Phoenix Model Spitfire Instruction Manual

68
Remove the covering.
71
Install the rudder servo into the
fuselage.
9

Installing the fuel tank.

75
Install the silicone tube of the tank.
10

Installing the engine.

78
Drill a holes for throttle rod.
7
69
Silicone tube
Nut
Metal clevis
Install the metal clevis.
72
Connect the pushrod to the servo arm
and secure it by nylon clasp.
73
Install the stopper to the tank.
76
Slide the fuel tank to the fuselage.
79
Insert the plastic tube to the fuselage
and secure it by C.A glue.
70
Attach the metal clevis to the control
horn.
Nylon clasp
74
Secure the stopper.
77
Secure the fuel tank in place by rubber
bank.
80
Attach the engine to the engine mount
and mark four holes
OS engine four stroke)
Clevis
108 mm
(this picture use the 52
.
