Phoenix Model Spitfire Instruction Manual page 3

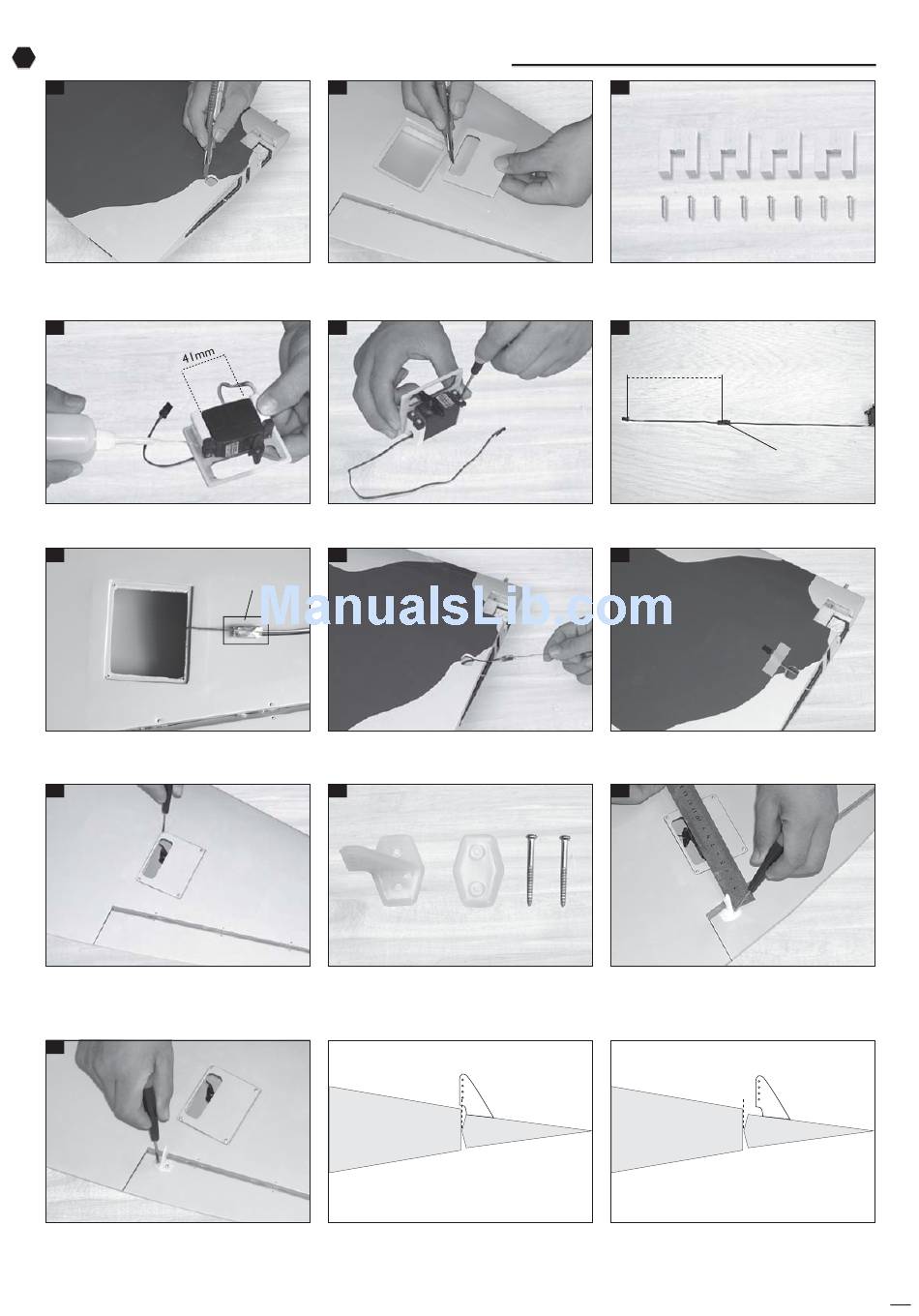

1 Installing the aileron servo and linkage.
Installing the aileron servo and linkage.
1
Remove the covering from the top of
the wing.
4
Glue the two hard wood by C.A glue.
7
Tape the servo lead into the end of the
thread.
10
Secure the aileron servo box.
13
Secure the control horn.
2
Remove the covering from the aileron
servo box.
5
Install the aileron servo.
8
Tape
Pull the servo lead out.
11
The control horn of the aileron.
Wing
Control horn
Aileron
Correct
3
Four blocks of hard wood.
6
230mm
Tape
Connect the aileron servo to the 230mm
servo extension (not included in the kit)
9
Using the masking tape, tape the servo
lead onto the top of the wing.
12
Mark two holes from the control horn
onto the bottom of the aileron and
INLINE with the servo arm.
Control horn
Wing Aileron
Wrong
2
