Phoenix Model Spitfire Instruction Manual page 7

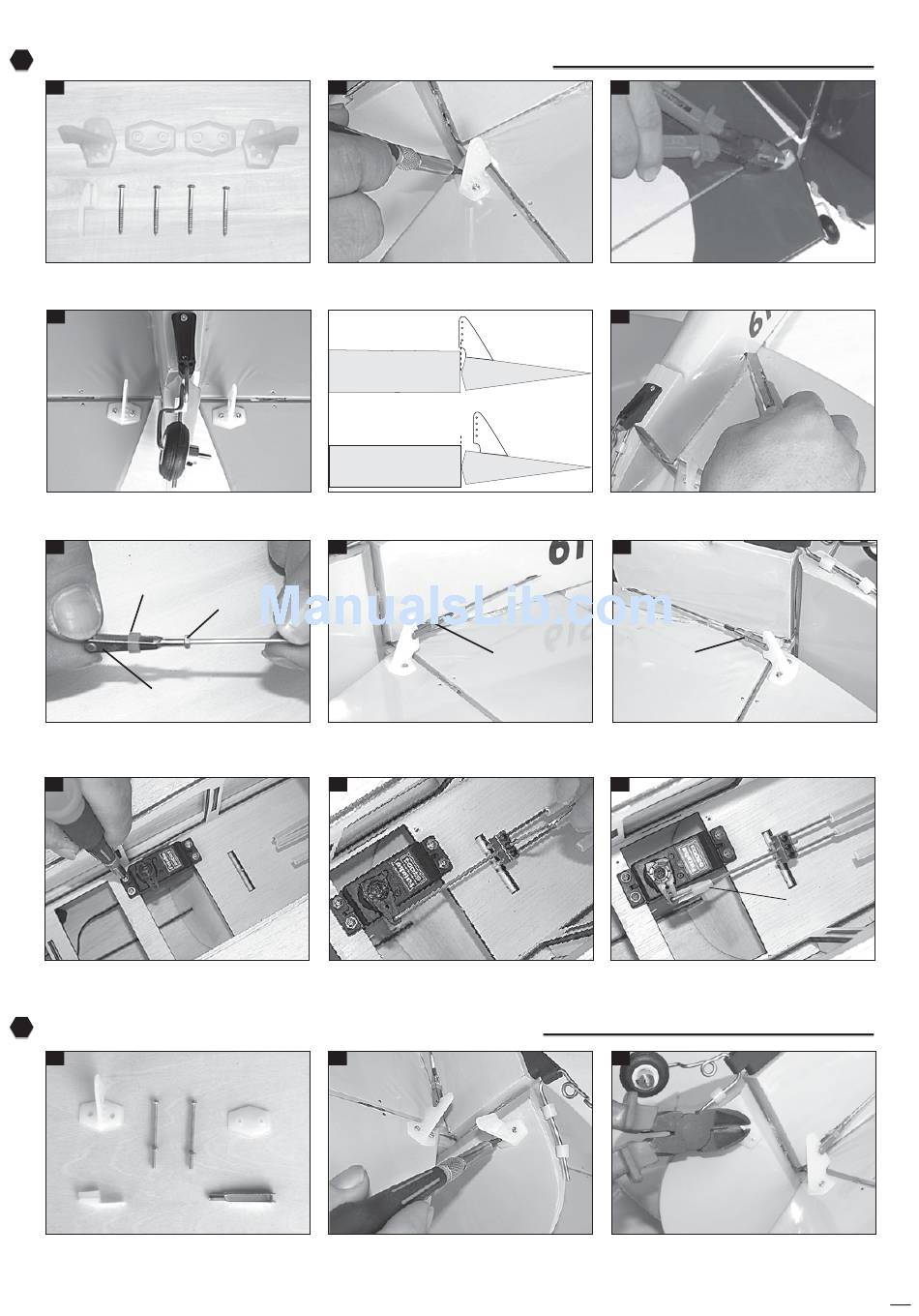

7 Installing the elevator pushrod and linkage.
54
The control horn of the elevator.
57
Make the same way for the second
elevator.
59
Silicone tube
Metal clevis
Install the metal clevis to the elevator
pushrod and insert the pushrod into
the fuselage (for both side).
62
Install the elevator servo into the
fuselage.
8 Installing the rudder pushrod and linkage.
65
The control horn of the rudder.
55
Install the control horn onto the
elevator.
Correct
Horizontal stabilizer
Wrong
Horizontal stabilizer
60
Nut
Attach the metal clevis to the control
horn of the left side of elevator.
63
Connect two elevator pushrod to the
domino and secure them.
66
Install the nylon control horn.
56
Cut away the screw if necessary.
58
Control horn
Elevator
Control horn
Elevator
Remove the covering from both side of
the fuselage.
61
Silicone tube
Attach the metal clevis to the control
horn of the right side of elevator.
64
Connect the domino to the servo arm
and secure it by nylon clasp.
67
Cut away the screw if necessary.
Silicone tube
Nylon clasp
