Operation
characters (combination of number and letter), and the third level can be defined by a sequential test
point number. The user can define the unique structure to meet complicated needs.

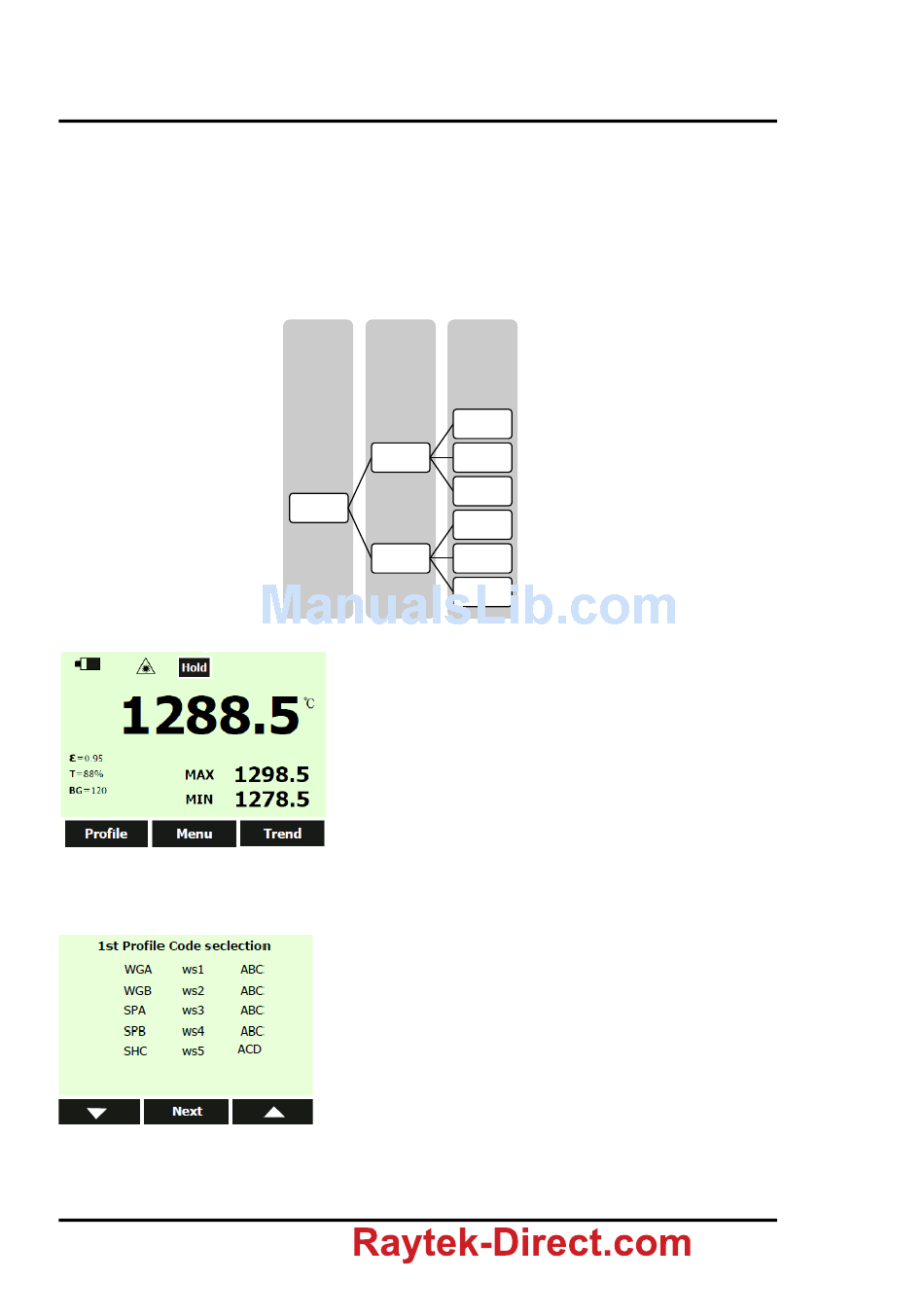

The following example can be regarded as a sequential structure:
First level: WGA and WGB represent two heating ovens.
•
Second level: ECA and ECB belong to WGA. The second level can be set up to 50 test points.
•
Third level: Indicates the location number in each second-level folder. The sums for location
•
numbers in all third levels can up to 300 points.
Examples are as follows:
Press <Profile> to enter the first level menu selection. Each displayed name is edited under the PC
interface, and then uploads to the instrument. Here the user can continue to the next screen using the
arrow keys if the item quantity is more than 15.
Press <Next> to continue to the second level menu, and upload to the instrument. Here, the user can
also continue to the next screen using the arrow keys.
24
info@Raytek-Direct.com
1 Level 2 Level 3
st nd rd
ECA
WGA
ECB
Rev. A1 Jan 2015
Level
1
...
100
1
...
20
3i Plus
