3.2 Optical Charts

3.3 General Specifications

Operating Temperature
Storage Temperature
Operating Humidity
Environmental Rating
Drop Performance
Operating Altitude
Storage Altitude
Size
Standard
with scope
14
info@Raytek-Direct.com

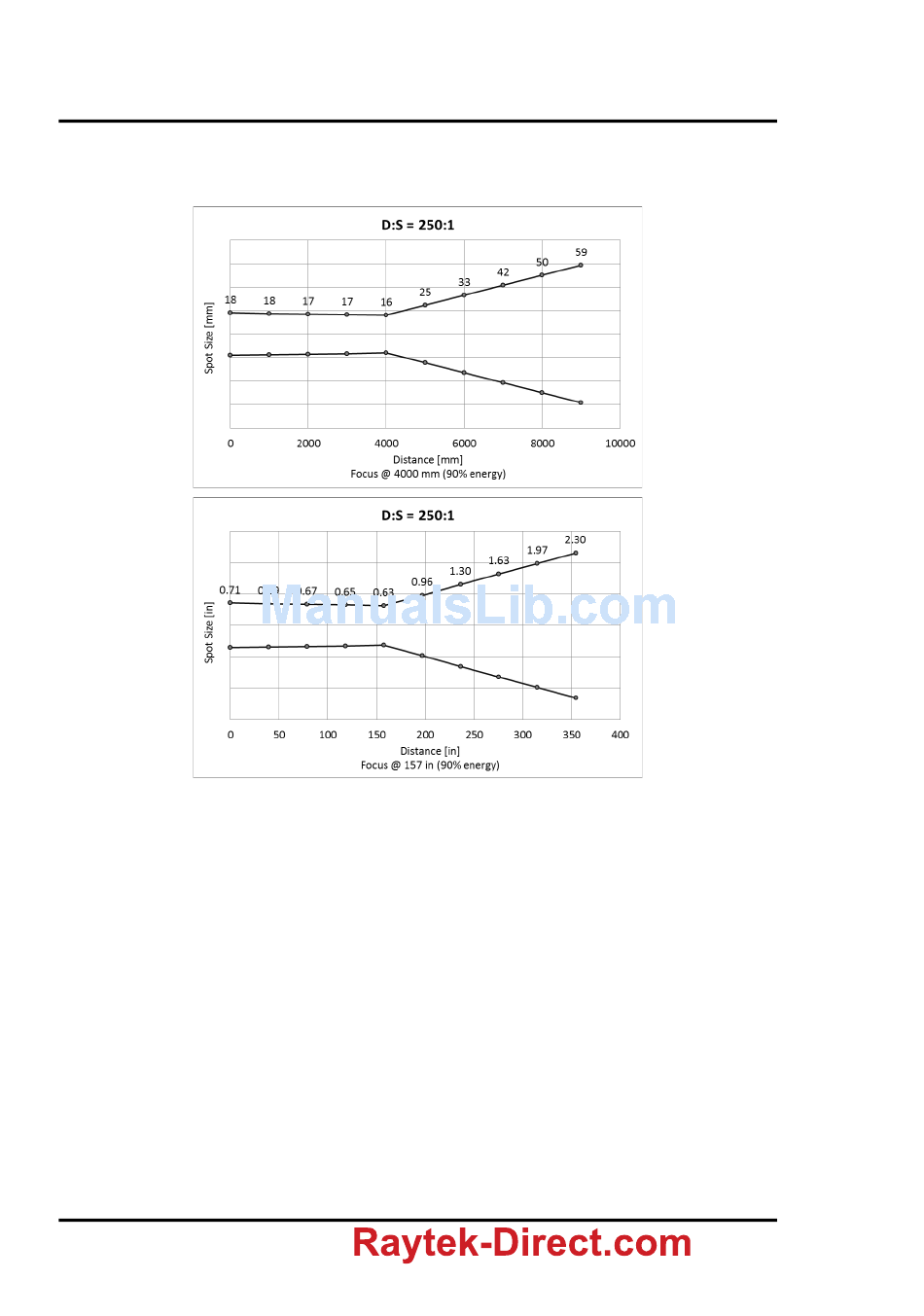

Figure 2: Spot Size Charts
0 to 50°C (32 to 122°F)
-20 to 60°C (-4°F to 140°F) without battery
10 to 90% RH, not condensing at 30°C (86°F)
IP40 (NEMA 1)
1 m (3.3 ft)
≤ 2 000 m (6,500 ft.)
≤ 12 000 m (40,000 ft.)
218 x 172 x 74 mm (8.6 x 6.8 x 2.9 in.)
218 x 222 x 74 mm (8.6 x 8.7 x 2.9 in.)
