5.4 High Temperature Nose

The instrument has a specially designed nose with high temperature resistant plastic material to avoid
damage from high temperature targets. On the other hand, please avoid over exposure when aiming
at a high-temperature target.
There is a temperature sensor inside the nose. During measurement, the instrument is monitoring the
temperature of the nose. If it is too hot, there will be a warning on the LCD display (ambient highlight
display and backlight change to red plus audible buzzer). Please move the unit away from the high-
temperature target when seeing this alarm.

5.5 Power Supply

The instrument is powered by a battery or USB cable when connect to the PC. The battery is located in
the base of the handle.
The instrument provides two charging methods:
•
•
3i Plus
info@Raytek-Direct.com
For accurate measurements the target size must be at least two times bigger than the
Spot diameter
AC adaptor through Mini USB port on the right side of the unit.
Remove the battery, and use the AC adaptor plus Mini USB-to-DC jack converter to charge.
An indicator on the battery will show a "charging" red light and "charge complete" green
light.
The instrument can be powered when connecting the USB cable to the PC but there is
no charging since many USB ports have not enough power capability!

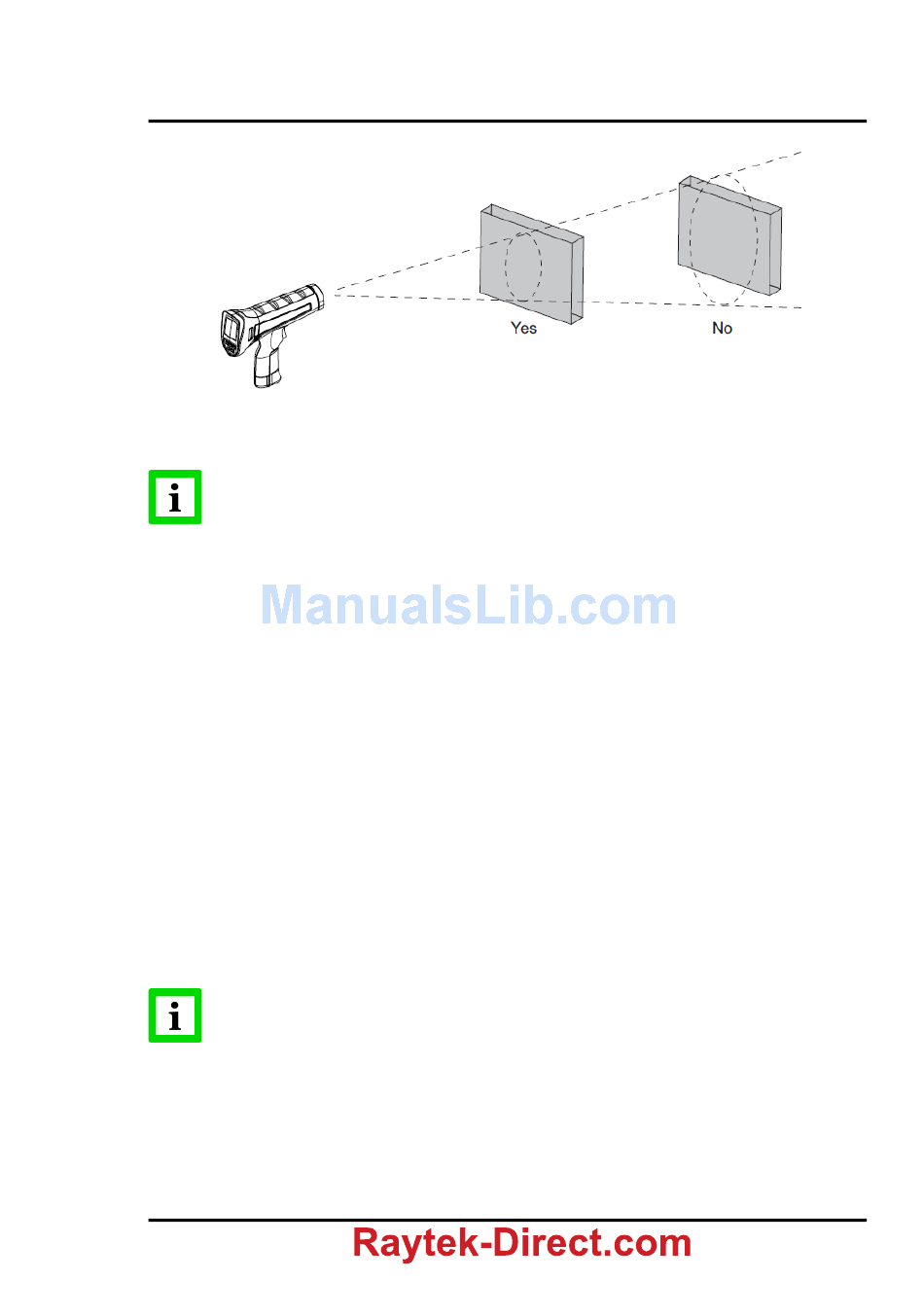

Figure 4: Field of View
Rev. A1 Jan 2015
