Marea- Marea Weekend
1999 range
Copyright Fiat Auto

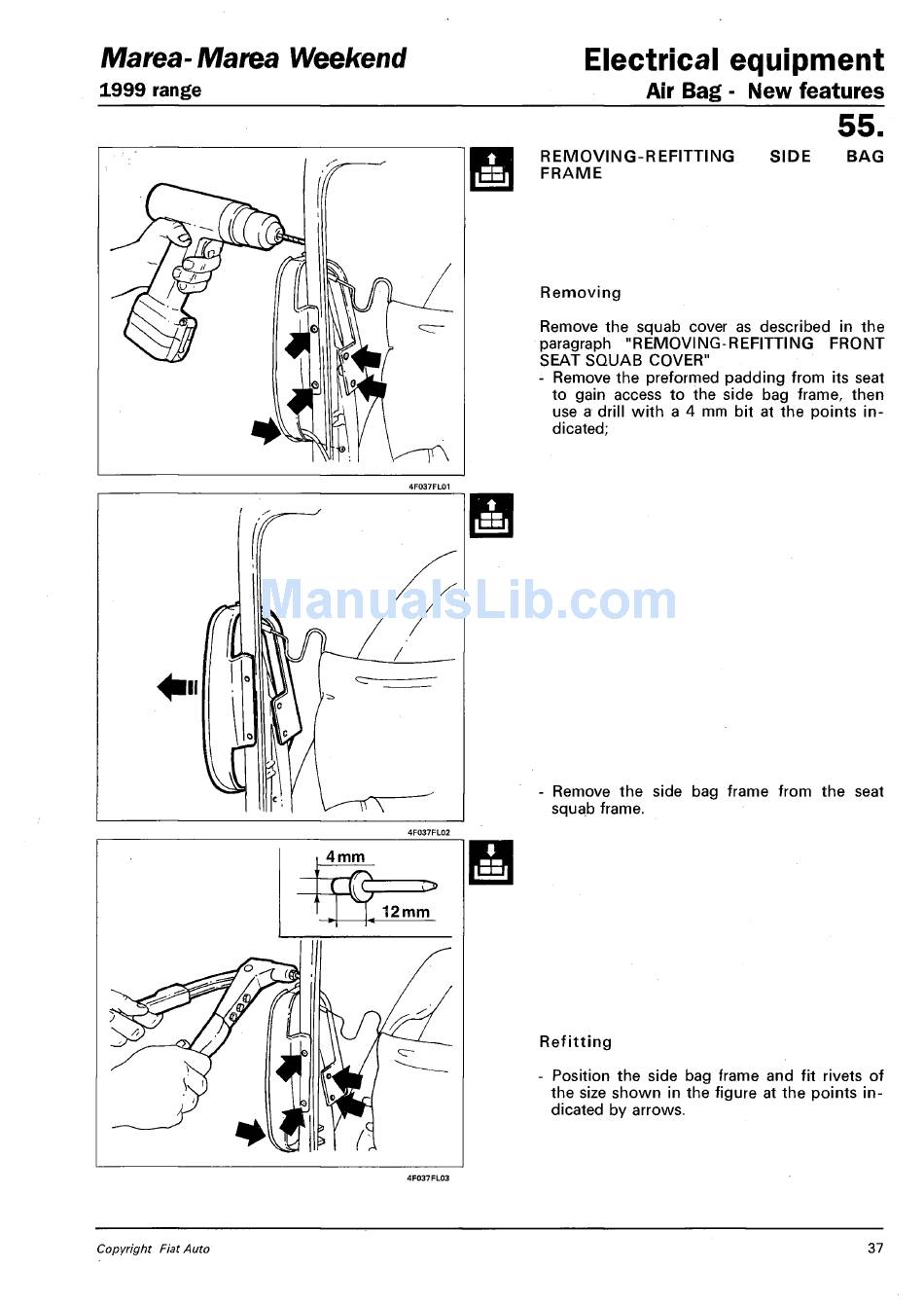

REMOVING-REFITTING
FRAME
Removing
Remove the squab cover as described in the
paragraph "REMOVING-REFITTING
SEAT SQUAB COVER"
- Remove the preformed padding from its seat
to gain access to the side bag frame, then
use a drill with a 4 mm bit at the points in-
dicated;
- Remove the side bag frame from the seat
squab frame.
Refitting
- Position the side bag frame and fit rivets of
the size shown in the figure at the points in-
dicated by arrows.
4F037FL03
Electrical equipment
Air Bag - New features
55.
SIDE BAG
FRONT
3 7
