Electrical equipment
Air Bag - New features

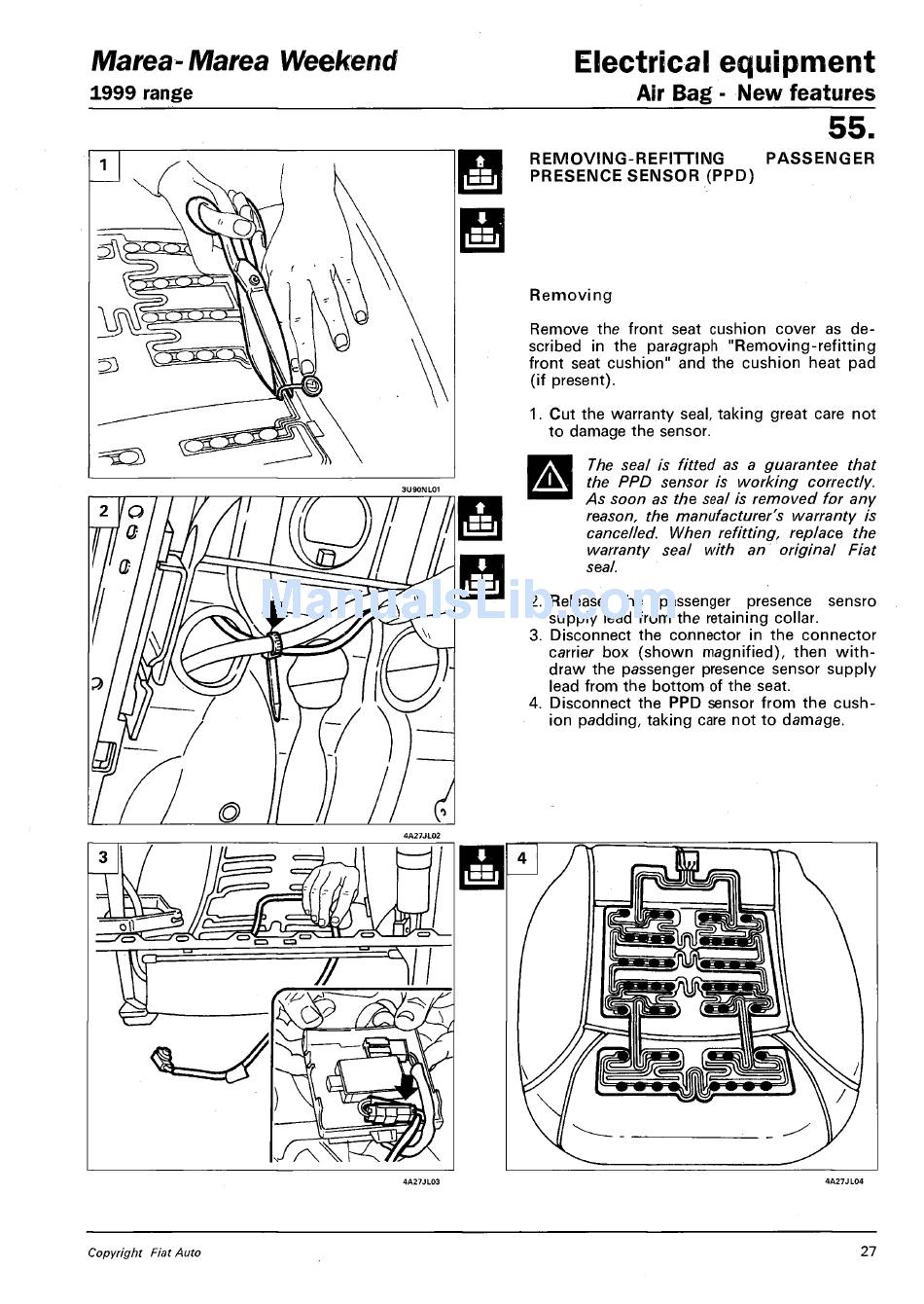

REMOVING-REFITTING
PRESENCE SENSOR (PPD)
Removing
Remove the front seat cushion cover as de-
scribed in the paragraph "Removing-refitting
front seat cushion" and the cushion heat pad
(if present).
1. Cut the warranty seal, taking great care not
to damage the sensor.
The seal is fitted as a guarantee that
the PPD sensor is working correctly.
As soon as the seal is removed for any
reason, the manufacturer's warranty is
cancelled. When refitting, replace the
warranty seal with an original Fiat
seal.
Release the passenger presence sensro
supply lead from the retaining collar.
Disconnect the connector in the connector
carrier box (shown magnified), then with-
draw the passenger presence sensor supply
lead from the bottom of the seat.
Disconnect the PPD sensor from the cush-
ion padding, taking care not to damage.
55.
