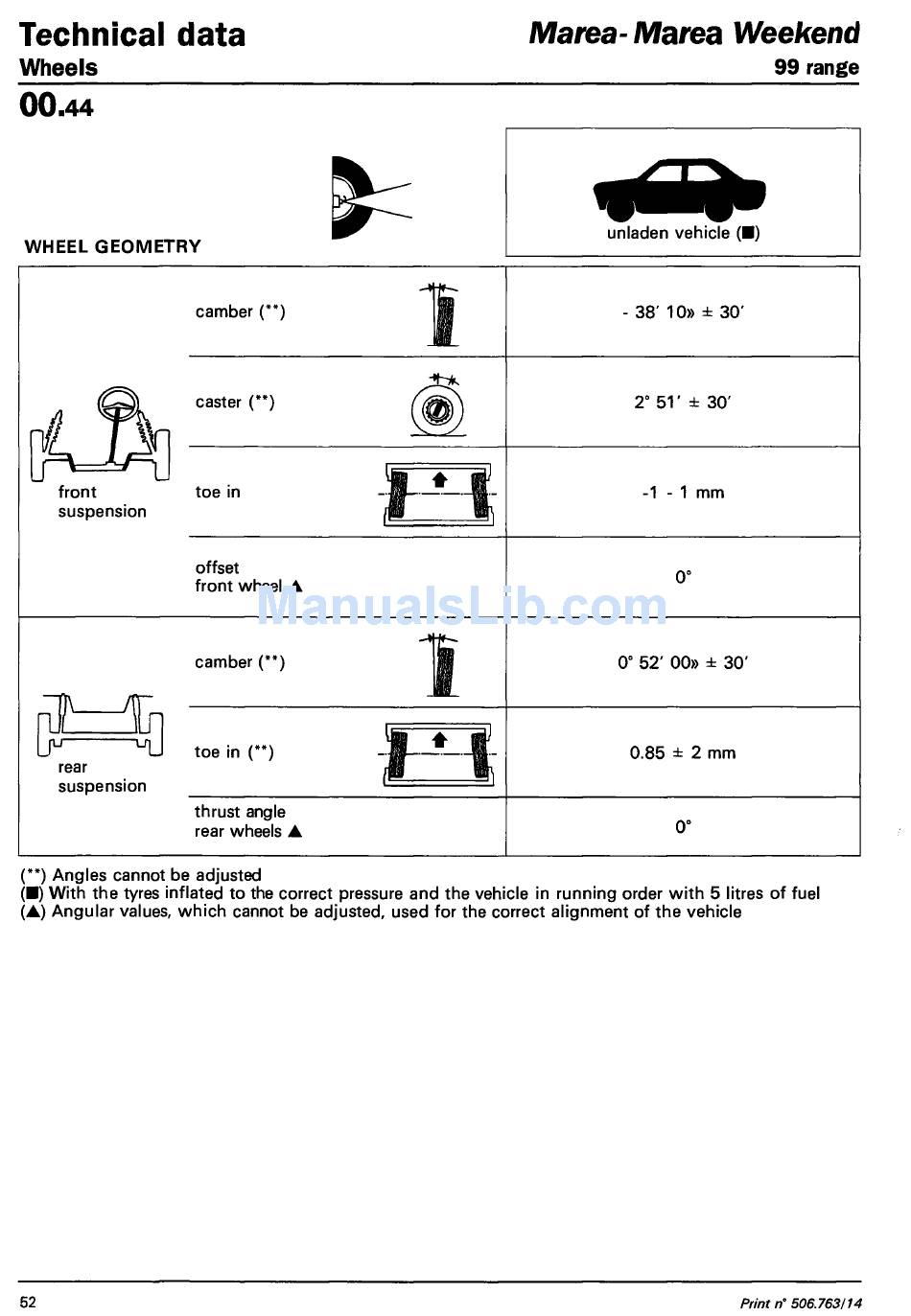

Technical data
Wheels
00.44
WHEEL GEOMETRY
front
suspension
rear
suspension
(**) Angles cannot be adjusted
(•) With the tyres inflated to the correct pressure and the vehicle in running order with 5 litres of fuel
( A ) Angular values, which cannot be adjusted, used for the correct alignment of the vehicle
52
camber (**)
caster (**)
toe in
offset
front wheel •
camber (**)
toe in (**)
thrust angle
rear wheels A
Marea- Marea Weekend
2
99 range
unladen vehicle (•)
- 38' 10» ± 30'
2° 51' ± 30'
-1 - 1 mm
0°
0° 52' 00» ± 30'
0.85 ± 2 mm
Print n° 506.763/14
