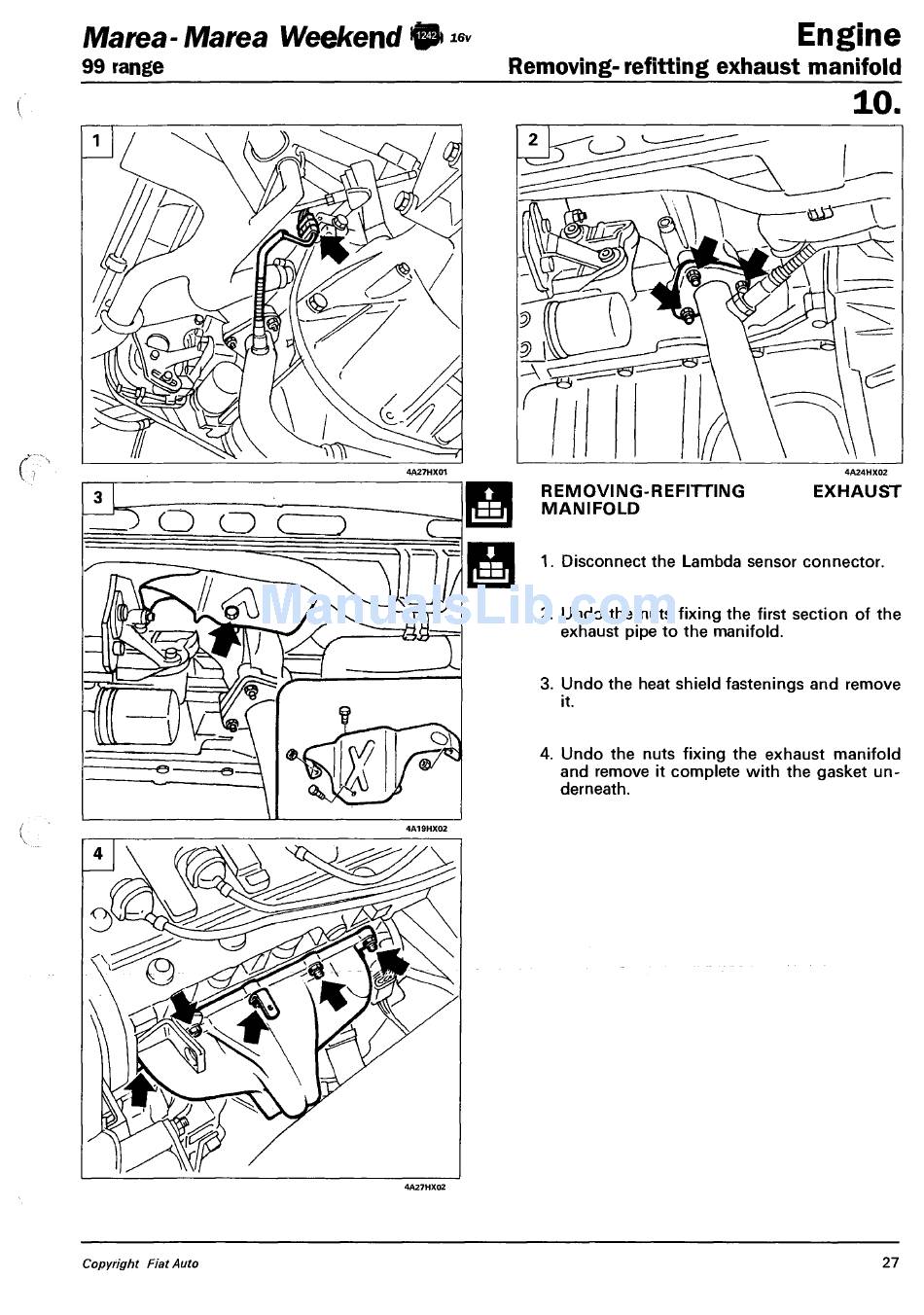

Removing- refitting exhaust manifold

4A27HX01
REMOVING-REFITTING
MANIFOLD
1. Disconnect the Lambda sensor connector.
2. Undo the nuts fixing the first section of the
exhaust pipe to the manifold.
3. Undo the heat shield fastenings and remove
it.
4. Undo the nuts fixing the exhaust manifold
and remove it complete with the gasket un-
derneath.
4A27HX02
Engine
10.
4A24HX02
EXHAUST
27
