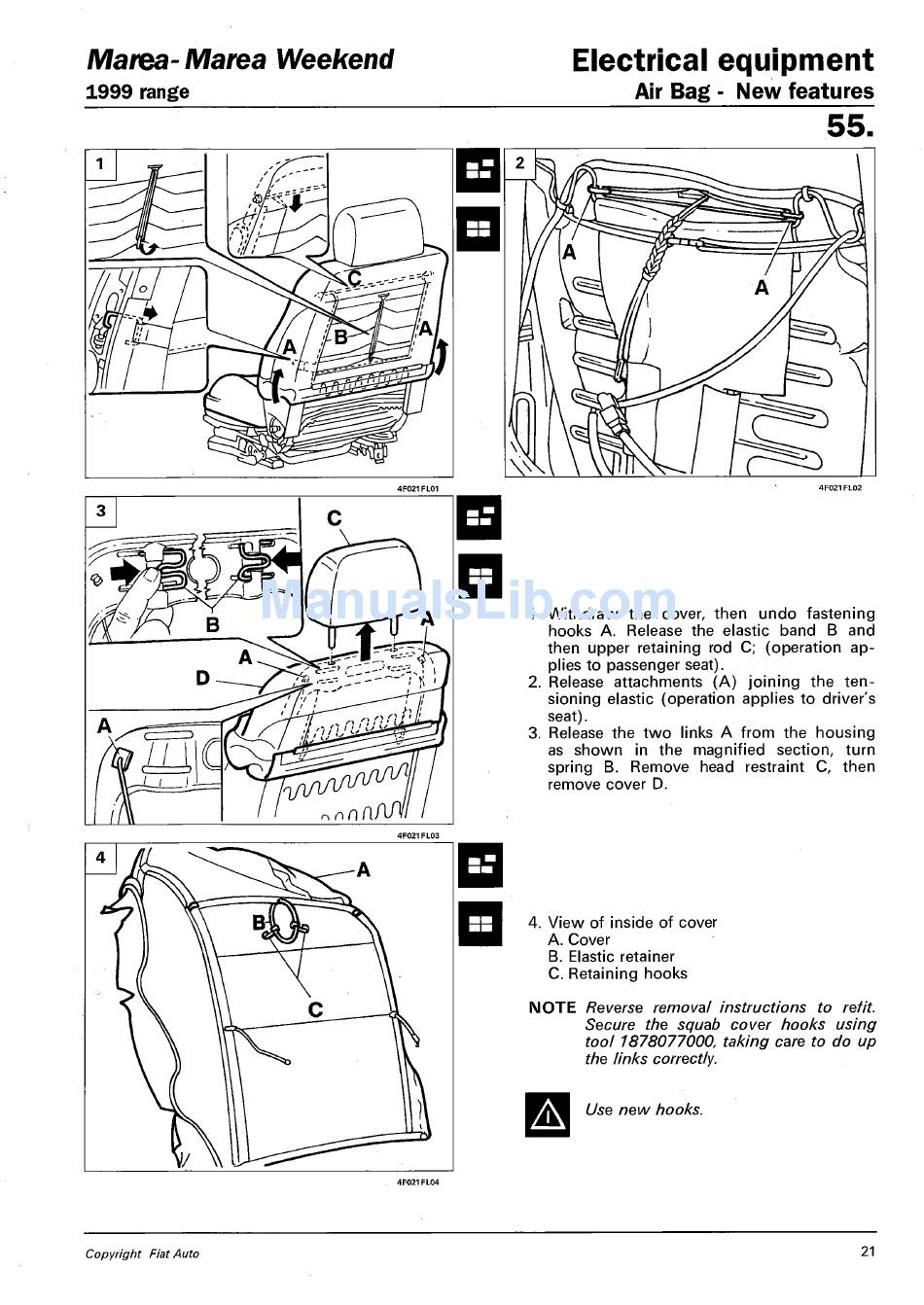

Fiat 1998 Marea Service Manual page 816

Marea- Marea Weekend
1999 range
Copyright Fiat Auto
Electrical equipment
Air Bag - New features
1. Withdraw the cover, then undo fastening
hooks A. Release the elastic band B and
then upper retaining rod C; (operation ap-
plies to passenger seat).
2. Release attachments (A) joining the ten-
sioning elastic (operation applies to driver's
seat).
3. Release the two links A from the housing
as shown in the magnified section, turn
spring B. Remove head restraint C, then
remove cover D.
4. View of inside of cover
A. Cover
B. Elastic retainer
C. Retaining hooks
NOTE Reverse removal Instructions
Secure the squab cover hooks
tool 1878077000, taking care to do up
the links correctly.
Use new hooks.
55.
to refit.
using
21
