Engine
Fuel system
10.

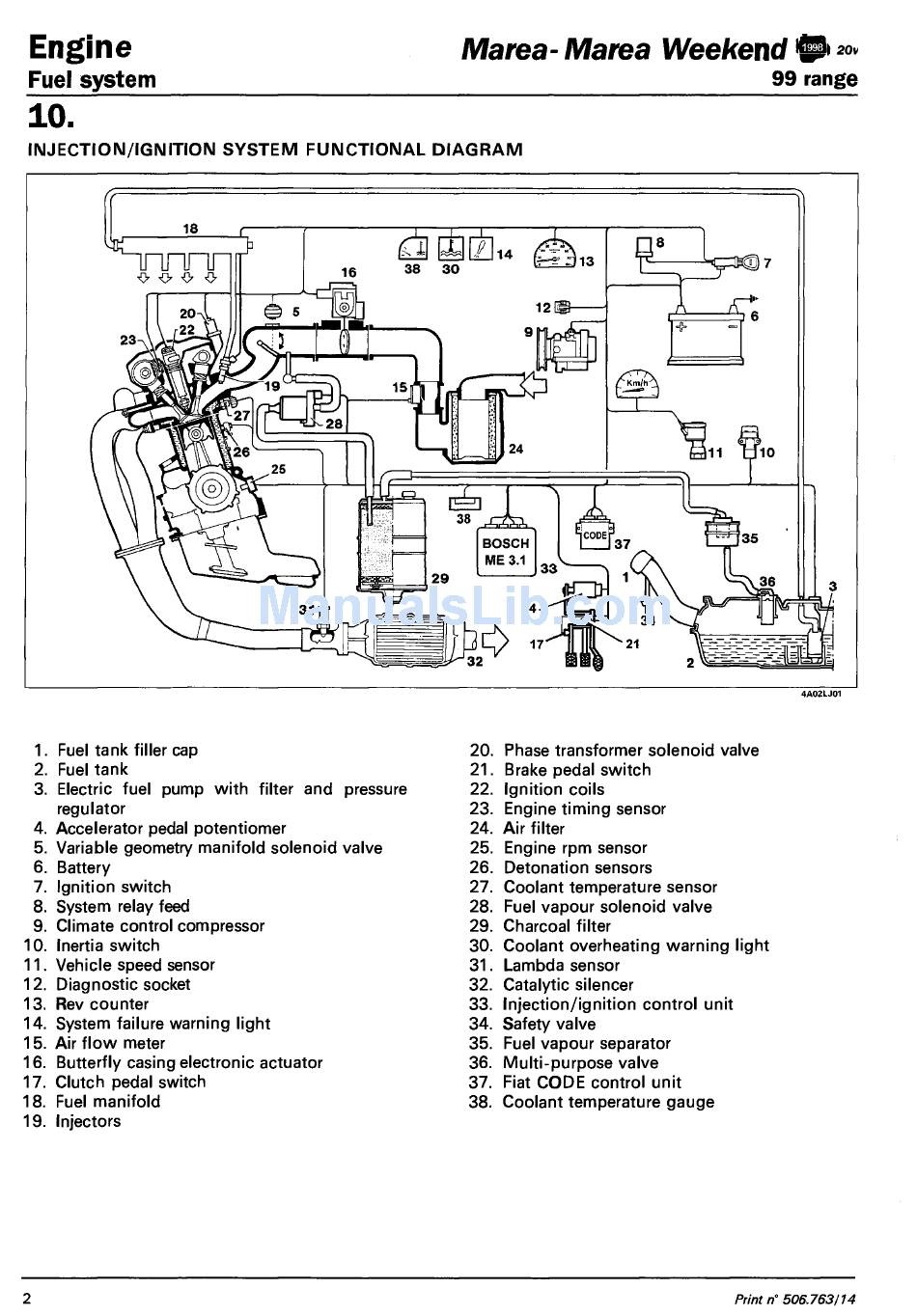

INJECTION/IGNITION SYSTEM FUNCTIONAL DIAGRAM

1. Fuel tank filler cap
2. Fuel tank
3. Electric fuel pump with filter and pressure
regulator
4. Accelerator pedal potentiomer
5. Variable geometry manifold solenoid valve
6. Battery
7. Ignition switch
8. System relay feed
9. Climate control compressor
10. Inertia switch
11. Vehicle speed sensor
12. Diagnostic socket
13. Rev counter
14. System failure warning light
15. Air flow meter
16. Butterfly casing electronic actuator
17. Clutch pedal switch
18. Fuel manifold
19. Injectors
2
Marea- Marea Weekend
20. Phase transformer solenoid valve
21. Brake pedal switch
22. Ignition coils
23. Engine timing sensor
24. Air filter
25. Engine rpm sensor
26. Detonation sensors
27. Coolant temperature sensor
28. Fuel vapour solenoid valve
29. Charcoal filter
30. Coolant overheating warning light
31. Lambda sensor
32. Catalytic silencer
33. Injection/ignition control unit
34. Safety valve
35. Fuel vapour separator
36. Multi-purpose valve
37. Fiat CODE control unit
38. Coolant temperature gauge
< Q P >
99 range
4A02LJ01
Print n° 506.763/14
