Engine
Fuel s y s t e m
10.
1. Battery
2. Relay
3. Clutch pedal switch
4. Brake pedal switch
5. Accelerator potentiometer
6. Speedometer
7. Electronic control unit
8. Engine rpm sensor
9. Coolant temperature sensor
2
Marea- Marea Weekend

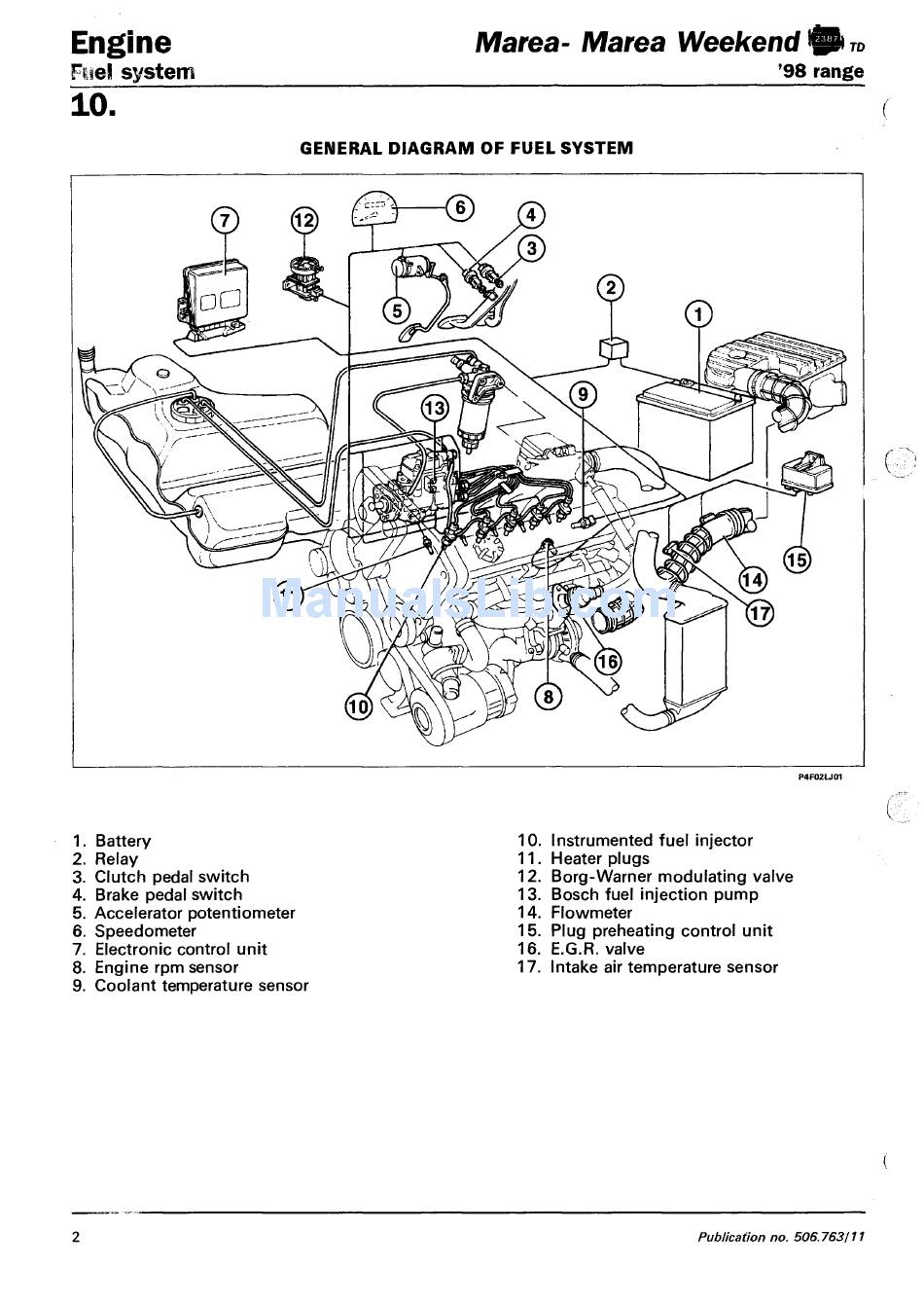

GENERAL DIAGRAM OF FUEL SYSTEM
10. Instrumented fuel injector
11. Heater plugs
12. Borg-Warner modulating valve
13. Bosch fuel injection pump
14. Flowmeter
15. Plug preheating control unit
16. E.G.R. valve
17. Intake air temperature sensor
'98 range
P 4 F 0 2 U 0 1
Publication
no.
506.763/11
