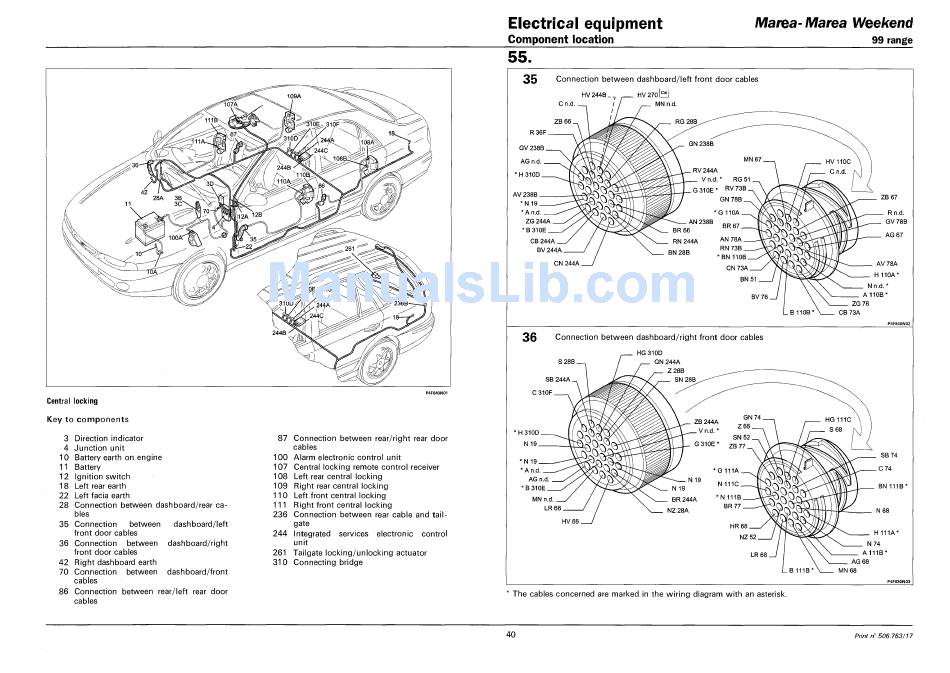

Central locking
Key to components
3 Direction indicator
4 Junction unit
10 Battery earth on engine
11 Battery
12 Ignition switch
18 Left rear earth
22 Left facia earth
28 Connection between dashboard/rear ca-
bles
35 Connection between dashboard/left
front door cables
36 Connection between dashboard/right
front door cables
42 Right dashboard earth
70 Connection between dashboard/front
cables
86 Connection between rear/left rear door
cables
P4F840N01
87 Connection between rear/right rear door
cables
100 Alarm electronic control unit
107 Central locking remote control receiver
108 Left rear central locking
109 Right rear central locking
110 Left front central locking
111 Right front central locking
236 Connection between rear cable and tail-
gate
244 Integrated services electronic control
unit
261 Tailgate locking/unlocking actuator
310 Connecting bridge
Electrical equipment
Component location
55.
35 Connection between dashboard/left front door cables
36 Connection between dashboard/right front door cables
* The cables concerned are marked in the wiring diagram with an asterisk.
4 0
Marea-Marea Weekend
99 range
P4F830N03
Print n° 506.763/17
