Fiat 1998 Marea Service Manual page 812

Marea-Marea Weekend
1999 range
Copyright Fiat Auto
Electrical equipment
Air Bag - New features

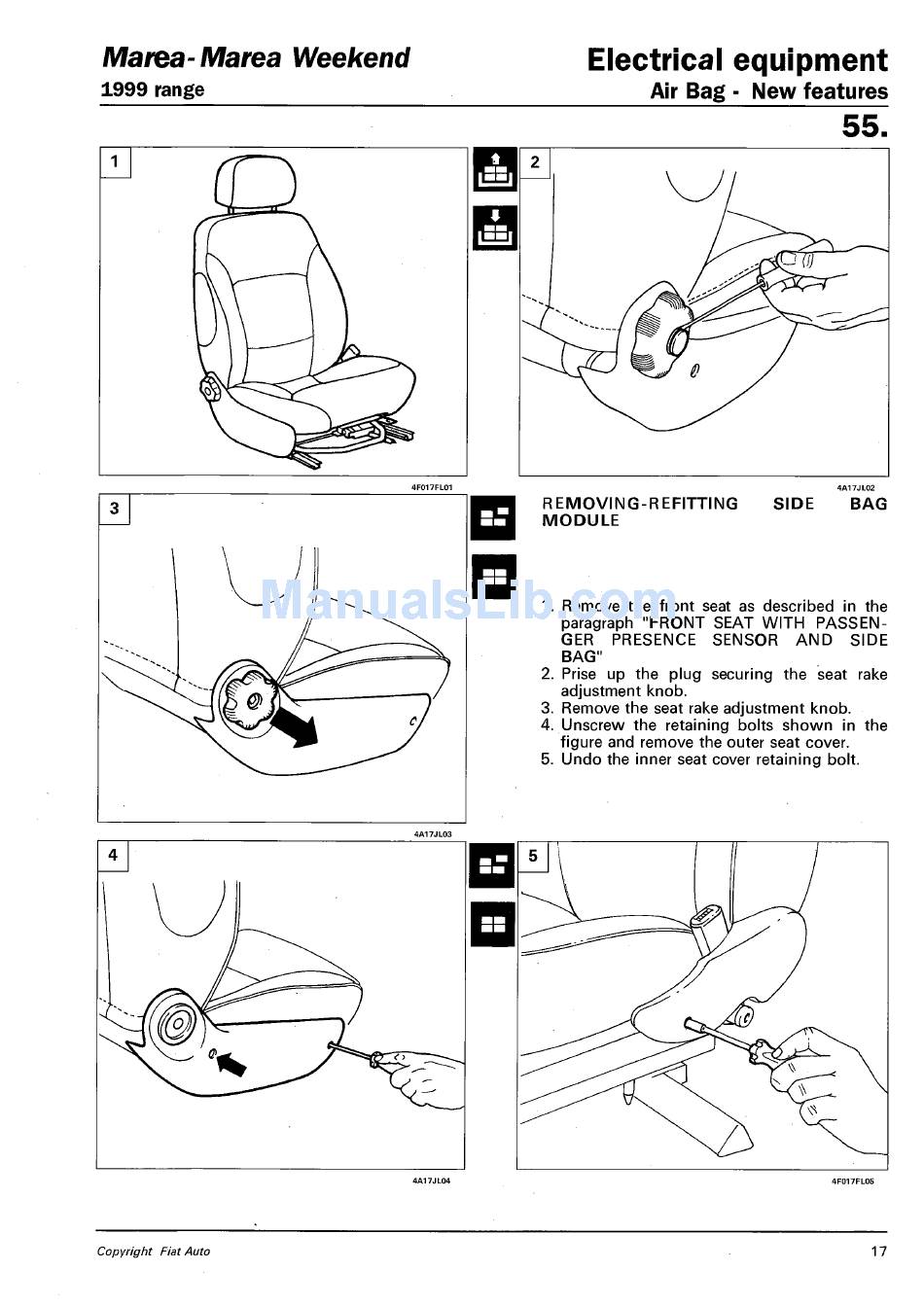

REMOVING-REFITTING
MODULE
1. Remove the front seat as described in the
paragraph "FRONT SEAT WITH PASSEN-
GER PRESENCE SENSOR AND SIDE
BAG"
2. Prise up the plug securing the seat rake
adjustment knob.
3. Remove the seat rake adjustment knob.
4. Unscrew the retaining bolts shown in the
figure and remove the outer seat cover.
5. Undo the inner seat cover retaining bolt.
SIDE BAG
17
