Engine

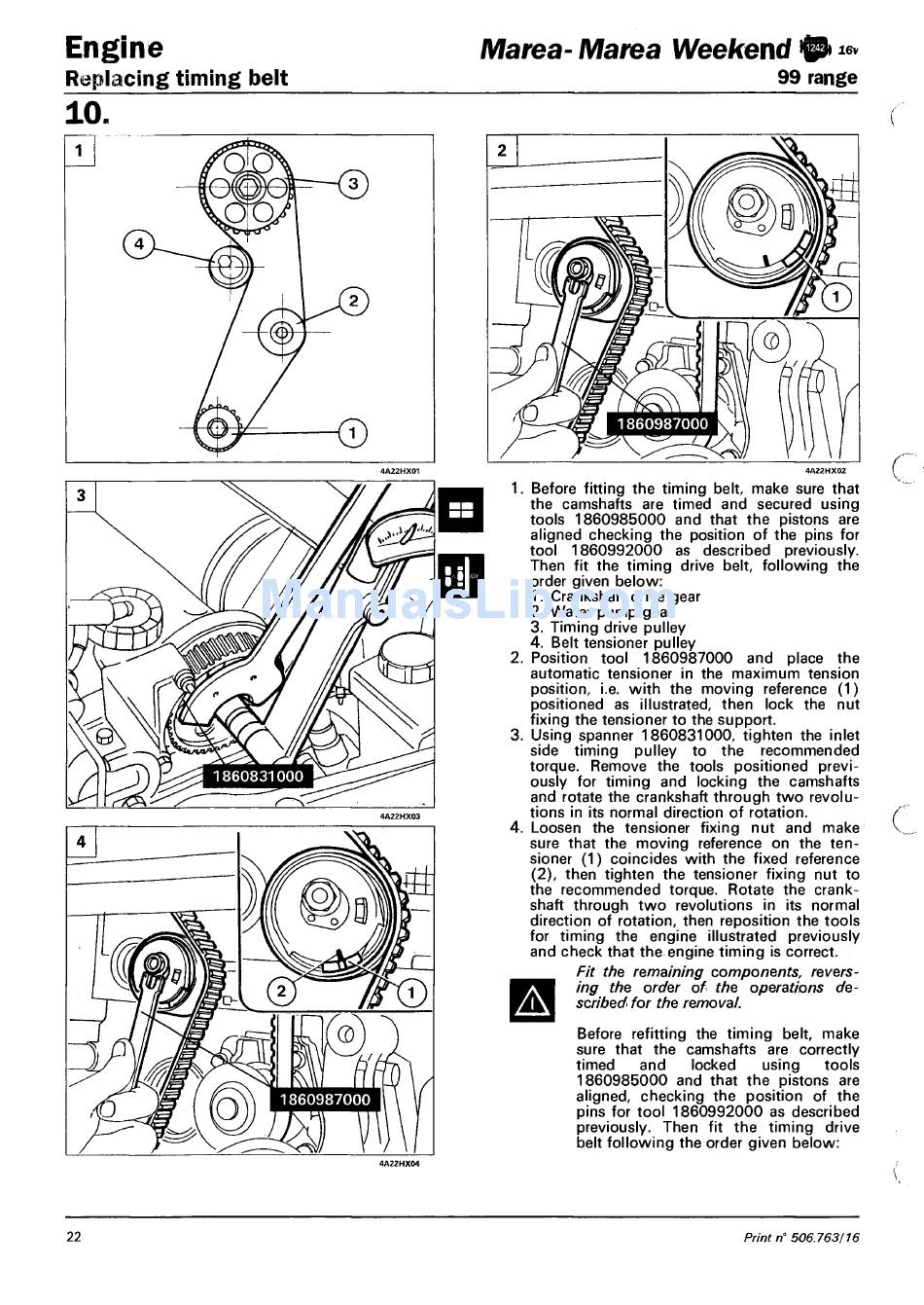

Replacing timing belt
10.
22
Marea- Marea Weekend
1. Before fitting the timing belt, make sure that
the camshafts are timed and secured using
tools 1860985000 and that the pistons are
aligned checking the position of the pins for
tool 1860992000 as described previously.
Then fit the timing drive belt, following the
order given below:
1. Crankshaft drive gear
2. Water pump gear
3. Timing drive pulley
4. Belt tensioner pulley
2. Position tool 1860987000 and place the
automatic tensioner in the maximum tension
position, i.e. with the moving reference (1)
positioned as illustrated, then lock the nut
fixing the tensioner to the support.
3. Using spanner 1860831000, tighten the inlet
side timing pulley to the recommended
torque. Remove the tools positioned previ-
ously for timing and locking the camshafts
and rotate the crankshaft through two revolu-
tions in its normal direction of rotation.
4. Loosen the tensioner fixing nut and make
sure that the moving reference on the ten-
sioner (1) coincides with the fixed reference
(2), then tighten the tensioner fixing nut to
the recommended torque. Rotate the crank-
shaft through two revolutions in its normal
direction of rotation, then reposition the tools
for timing the engine illustrated previously
and check that the engine timing is correct.
Fit the remaining components, revers-
ing the order of the operations de-
scribed for the removal.
Before refitting the timing belt, make
sure that the camshafts are correctly
timed and
1860985000 and that the pistons are
aligned, checking the position of the
pins for tool 1860992000 as described
previously. Then fit the timing drive
belt following the order given below:
9
16v
99 range
locked using tools
Print n° 506.763/16
