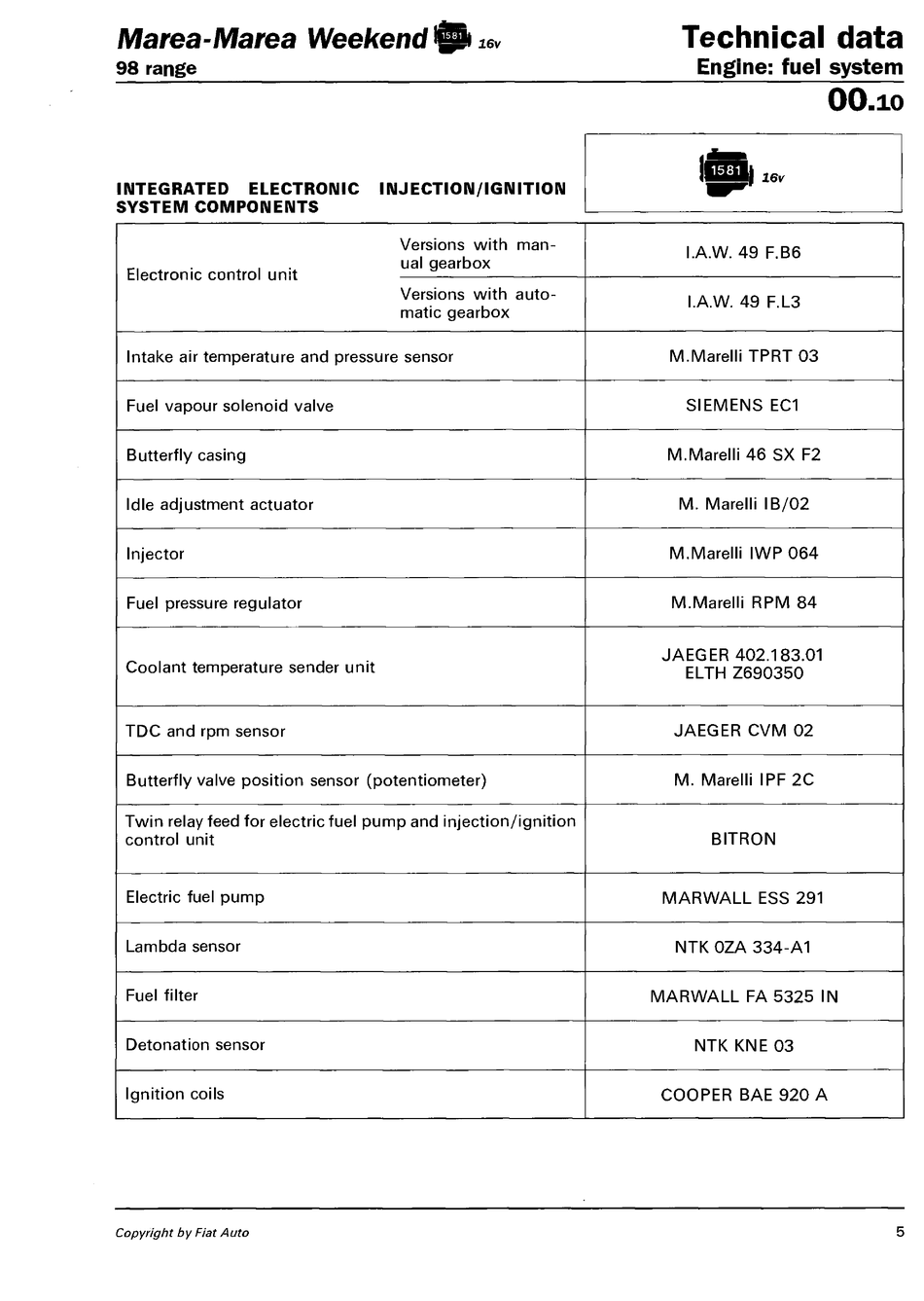

INTEGRATED ELECTRONIC
SYSTEM COMPONENTS
,
rlpptronir pnntro iinit
L I C O U W 1 11 v / L f U l 1 L I W 1 \Jl 1 1 1 L
Intake air temperature and pressure sensor
Fuel vapour solenoid valve
Butterfly casing
Idle adjustment actuator
Injector
Fuel pressure regulator
Coolant temperature sender unit
TDC and rpm sensor
Butterfly valve position sensor (potentiometer)
Twin relay feed for electric fuel pump and injection/ignition
control unit
Electric fuel pump
Lambda sensor
Fuel filter
Detonation sensor
Ignition coils
Copyright by Fiat Auto
Weekend®^
INJECTION/IGNITION
Versions with man¬
ual gearbox
Versions with auto-
matic gearbox
Technical data
Engine: fuel system
I.A.W. 49 F.B6
I.A.W. 49 F.L3
M.Marelli TPRT 03
SIEMENS EC1
M.Marelli 46 SX F2
M. Marelli IB/02
M.Marelli IWP 064
M.Marelli RPM 84
JAEGER 402.183.01
ELTH Z690350
JAEGER CVM 02
M. Marelli IPF 2C
BITRON
MARWALL ESS 291
NTK 0ZA 334-A1
MARWALL FA 5325 IN
NTK KNE 03
COOPER BAE 920 A
