Marea-Marea
1999 range
INTRODUCTION
The 1999 Fiat Marea - Marea Weekend range is fitted with a new Air Bag system. This differs from the
current system in the addition of a passenger presence sensor PPD on the front seat. This allows the pas-
senger side air bag and pretensioner to go off only if the seat is occupied.
The standard system may also optionally be fitted with a side impact prevention system known as a side
bag.

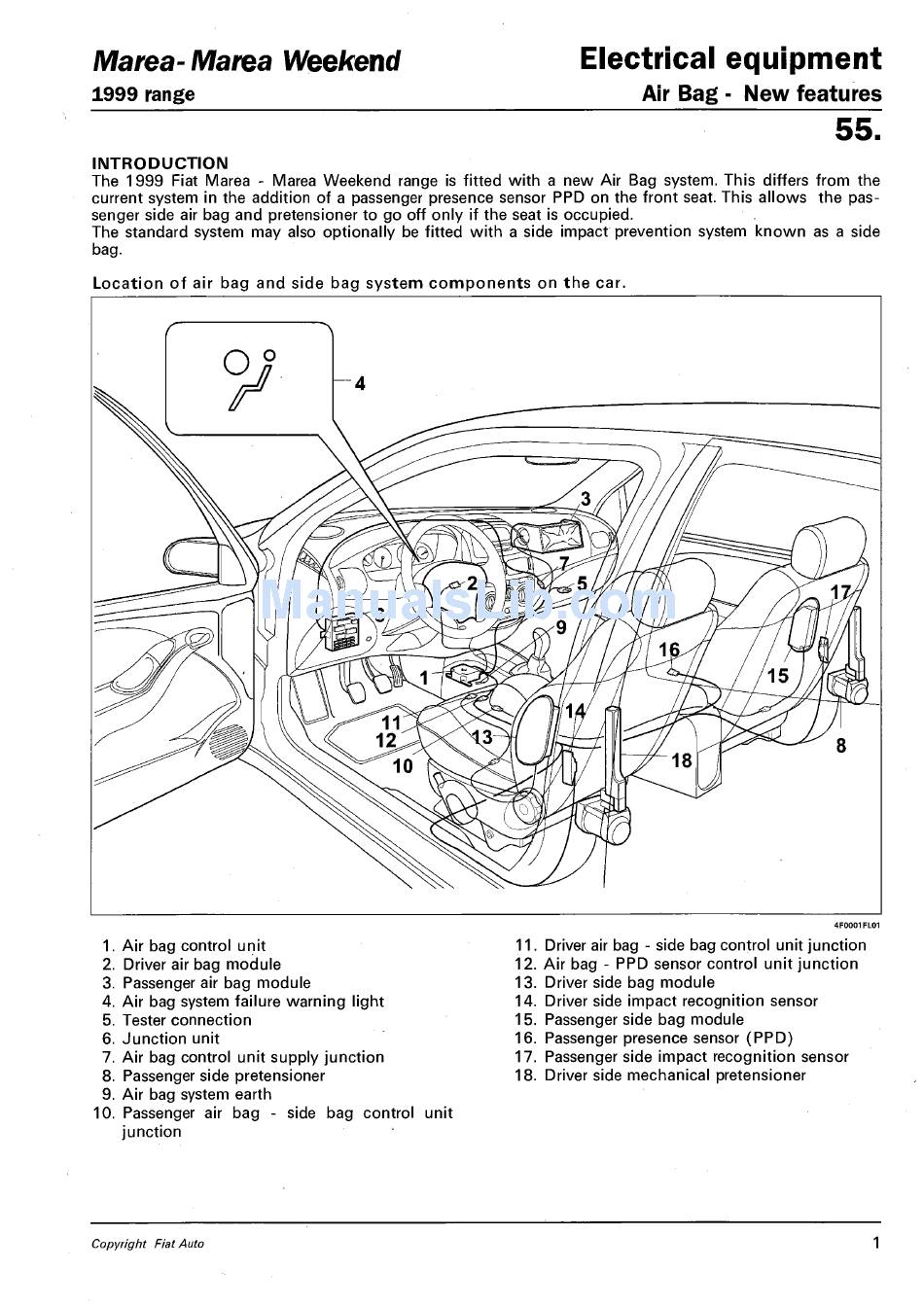

Location of air bag and side bag system components on the car.
1. Air bag control unit
2. Driver air bag module
3. Passenger air bag module
4. Air bag system failure warning light
5. Tester connection
6. Junction unit
7. Air bag control unit supply junction
8. Passenger side pretensioner
9. Air bag system earth
10. Passenger air bag - side bag control unit
junction
Copyright Fiat Auto
Weekend
Electrical equipment
Air Bag - New features
11. Driver air bag - side bag control unit junction
12. Air bag - PPD sensor control unit junction
13. Driver side bag module
14. Driver side impact recognition sensor
15. Passenger side bag module
16. Passenger presence sensor (PPD)
17. Passenger side impact recognition sensor
18. Driver side mechanical pretensioner
55.
1
