Electrical equipment
Air Bag - New features
22
Marea-Marea

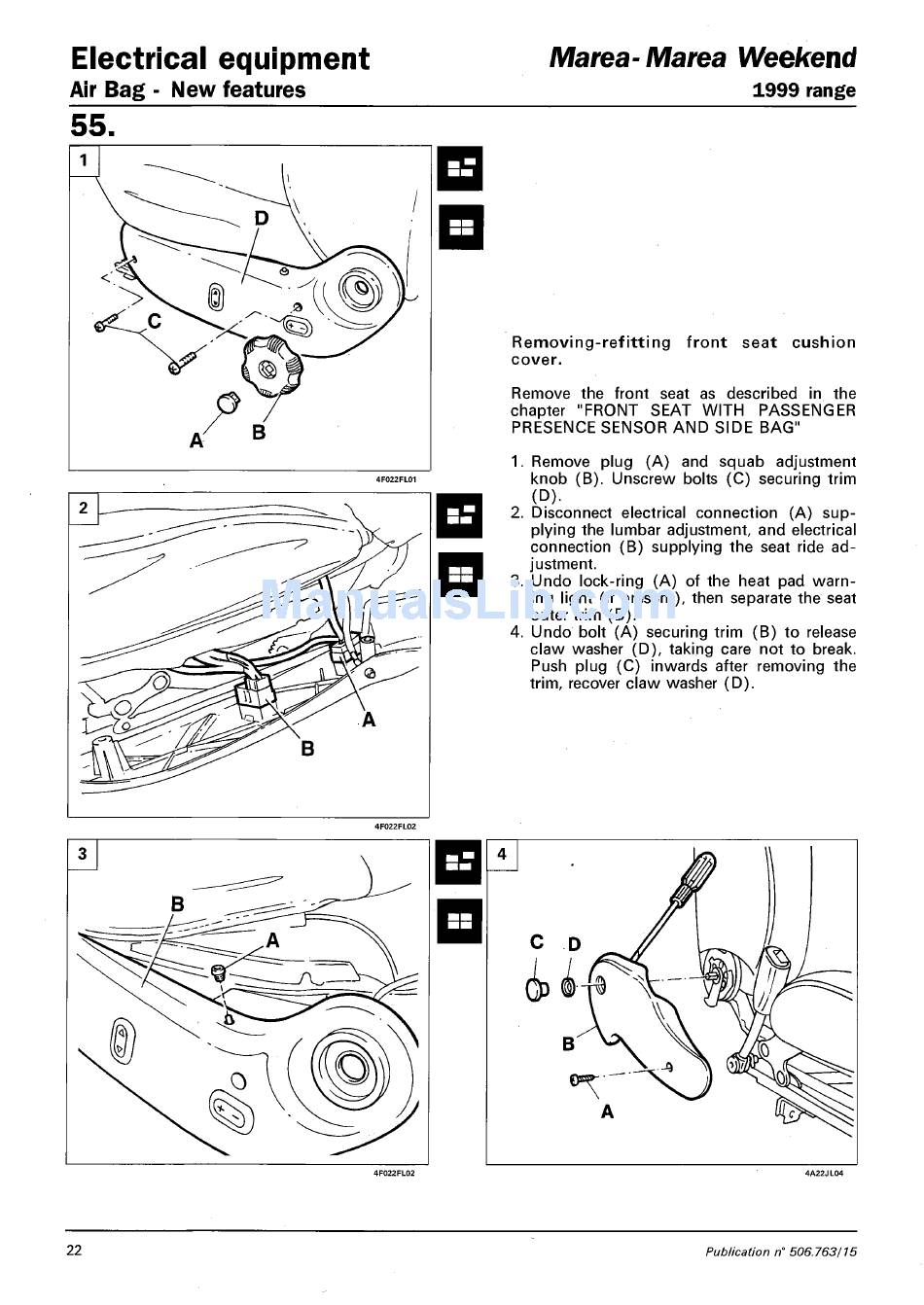

Removing-refitting
cover.
Remove the front seat as described in the
chapter "FRONT SEAT WITH PASSENGER
PRESENCE SENSOR AND SIDE BAG"
1. Remove plug (A) and squab adjustment
knob (B). Unscrew bolts (C) securing trim
(D).
2. Disconnect electrical connection (A) sup-
plying the lumbar adjustment, and electrical
connection (B) supplying the seat ride ad-
justment.
Undo lock-ring (A) of the heat pad warn-
ing light (if present), then separate the seat
outer trim (B).
4. Undo bolt (A) securing trim (B) to release
claw washer (D), taking care not to break.
Push plug (C) inwards after removing the
trim, recover claw washer (D).
Weekend
1999 range
front seat cushion
Publication n° 506.763/15
