AIR INTAKE CIRCUIT MANAGEMENT

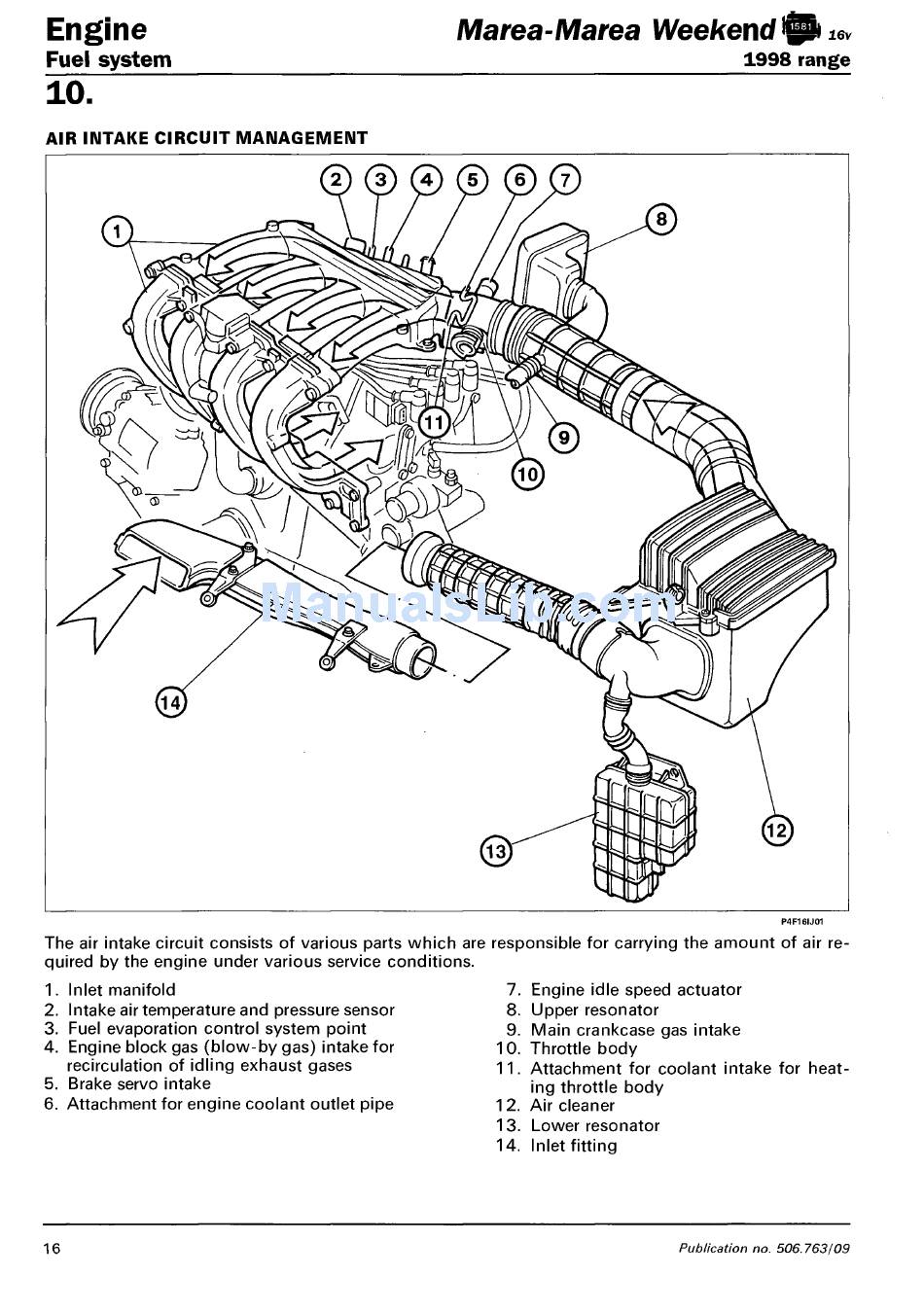

The air intake circuit consists of various parts which are responsible for carrying the amount of air re-
quired by the engine under various service conditions.
1. Inlet manifold
2. Intake air temperature and pressure sensor
3. Fuel evaporation control system point
4. Engine block gas (blow-by gas) intake for
recirculation of idling exhaust gases
5. Brake servo intake
6. Attachment for engine coolant outlet pipe
16
Marea-Marea
7. Engine idle speed actuator
8. Upper resonator
9. Main crankcase gas intake
10. Throttle body
11. Attachment for coolant intake for heat-
ing throttle body
12. Air cleaner
13. Lower resonator
14. Inlet fitting
Weekend®
1998 range
P4F16IJ01
