Engine
Fuel system
10.

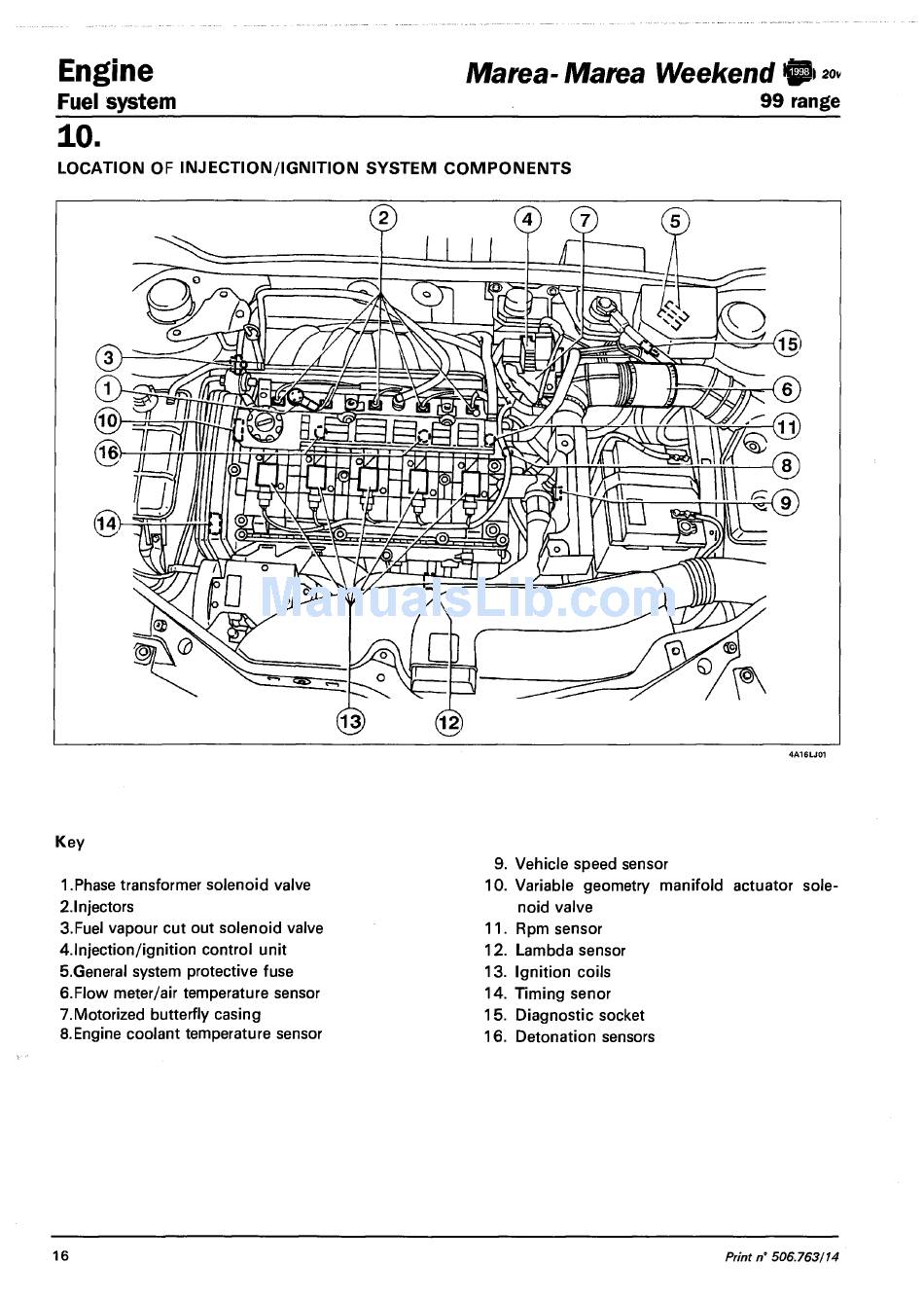

LOCATION OF INJECTION/IGNITION SYSTEM COMPONENTS
Key
1. Phase transformer solenoid valve
2. Injectors
3. Fuel vapour cut out solenoid valve
4.lnjection/ignition control unit
5. General system protective fuse
6. Flow meter/air temperature sensor
7. Motorized butterfly casing
8. Engine coolant temperature sensor
16
Marea- Marea Weekend •§!
9. Vehicle speed sensor
10. Variable geometry manifold actuator sole-
noid valve
11. Rpm sensor
12. Lambda sensor
13. Ignition coils
14. Timing senor
15. Diagnostic socket
16. Detonation sensors
99 range
4A16U01
Print n°
506.763/74
