CPU. If the Fan/Heatsink already has a patch of TIM on its underside,
you don't need to apply any additional TIM to the CPU. We assume here
that you have TIM in an Intel supplied applicator. To apply TIM to the
CPU do as follows:

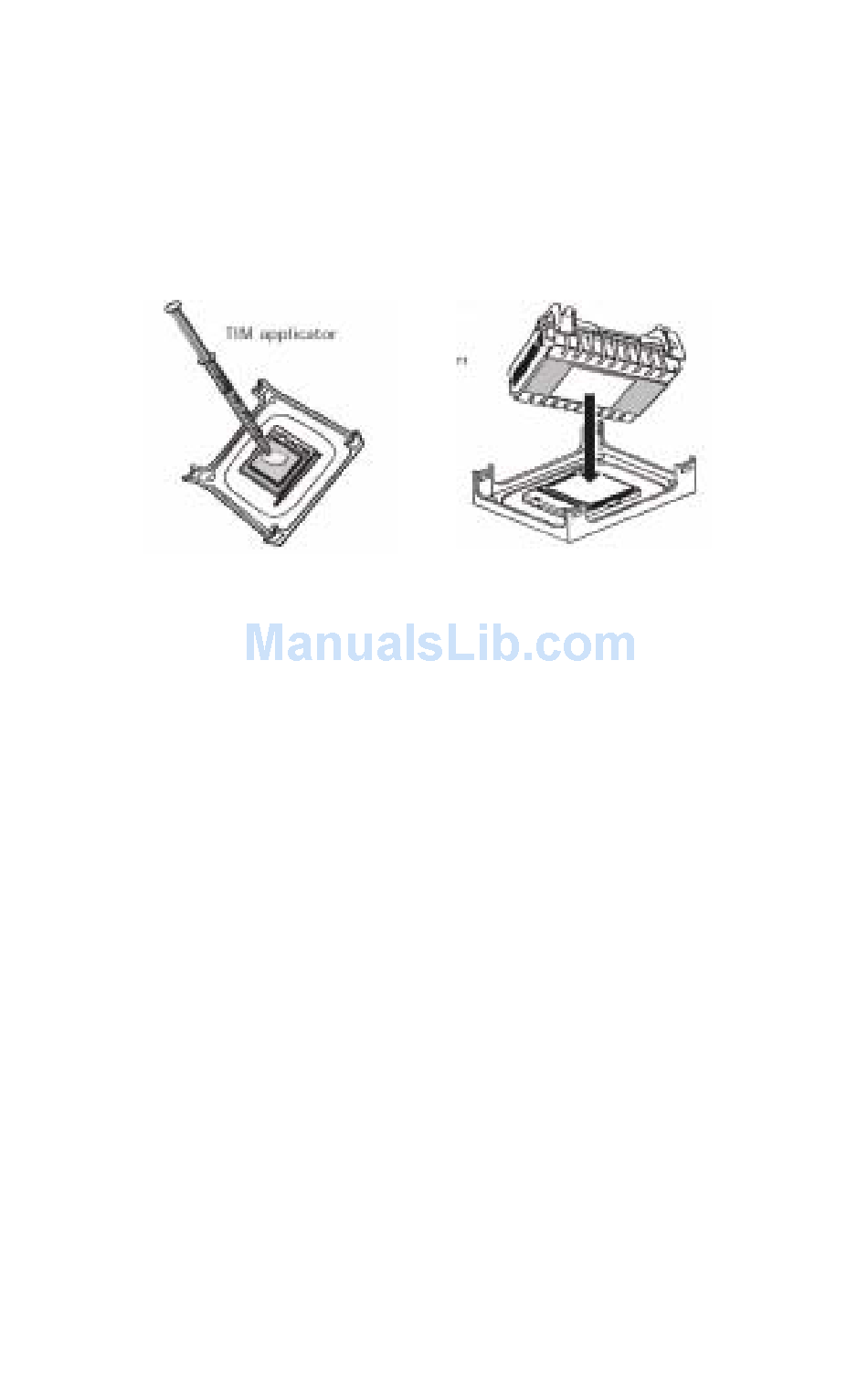

Apply all of the TIM in the applicator to the center of the CPU's top plate.
Next, install the processor Fan/Heatsink assembly as detailed below.

4.2.6 Install the Fan/Heatsink

To install the processor Fan/Heatsink assembly do as follows:
1. Place the Fan/Heatsink on top of the Pentium 4 CPU so that it's retain-
ing clip frame snaps into the recesses in the Retaining Mechanism. The
Fan/ Heatsink will only fit into the mechanism frame in the correct orien-
tation.
