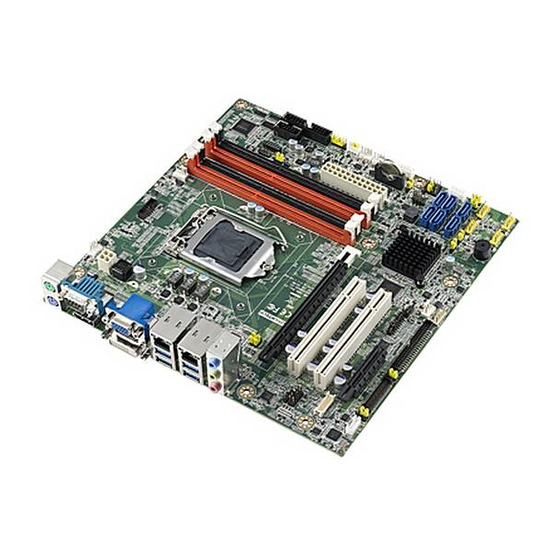

User Manual
AIMB-584
Intel® Xeon® E3/Core™ i7/i5/i3
LGA1150 MicroATX with CRT/
DVI/eDP/LVDS/DP, 6 COM, Dual
LAN, DDR3, PCIe x 16 and
SATAIII

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIMB-584 and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech AIMB-584

Summary of Contents for Advantech AIMB-584

  • Page 1 User Manual AIMB-584 Intel® Xeon® E3/Core™ i7/i5/i3 LGA1150 MicroATX with CRT/ DVI/eDP/LVDS/DP, 6 COM, Dual LAN, DDR3, PCIe x 16 and SATAIII...
  • Page 2 The documentation and the software included with this product are copyrighted 2013 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice.
  • Page 3 Whether your new Advantech equipment is destined for the labo- ratory or the factory floor, you can be assured that your product will provide the reliability and ease of operation for which the name Advantech has come to be known.

  • Page 4: Declaration Of Conformity

    2.7GHz Intel i3-43300 3.5G 22nm LGA1150 PASS WG2/QG2 3.5GHz Intel I3-4330TE 2.4G 22nm LGA1150 PASS WG2/QG2 2.4GHz Intel Pentium® Processor G3420 3.2G 22nm LGA1150 PASS WG2/QG2 3.2G Intel Pentium® Processor 2.3G 22nm LGA1150 PASS WG2/QG2 G3320TE 2.3G AIMB-584 User Manual...

  • Page 5: Ordering Information

    Ordering Information LVDS / Part Number Chipset Memory VGA DVI DP SATAIII 3.0/2.0 AIMB-584QG2- Non-ECC 1/(1) 4 / 8 00A1E AIMB-584WG2- ECC/ Non- C226 1/(1) 4 / 8 00A1E *() means do not populated on MP version. AIMB-584 User Manual...
  • Page 6 It should be free of marks and scratches and in perfect working order upon receipt. As you unpack the AIMB-584, check it for signs of ship- ping damage. (For example, damaged box, scratches, dents, etc.) If it is damaged or it fails to meet the specifications, notify our service department or your local sales representative immediately.

  • Page 7: Table Of Contents

    Board layout: Jumper and Connector Locations ........5 Figure 1.1 Jumper and Connector Location ........ 5 Figure 1.2 I/O Connectors ............6 AIMB-584 Board Diagram ................. 6 Figure 1.3 AIMB-584 Block Diagram ........... 6 Safety Precautions ..................7 Jumper Settings ..................7 1.8.1 How to Set Jumpers..............
  • Page 8 Software Utility................80 Chapter Chipset Software Installation Utility Before You Begin..................82 Introduction ..................... 82 Windows 7 Driver Setup ................. 83 Chapter VGA Setup ......... 85 Introduction ..................... 86 Windows 7 VGA Driver Installation ............86 AIMB-584 User Manual viii...
  • Page 9 Table B.13:System Fan Connector (1 x 4 Pin Header)..... 108 ................108 B.14 USB 2.0 Pin Header (USB56, USB78, USB910, USB1112) ....108 Table B.14:Two-port USB 2.0 Header (2 x 5 Pin Header) ..108 B.15 USB POWER Selection for LAN1_USB12 Connector and KBMS AIMB-584 User Manual...
  • Page 10 IrDA / OBS / Watch Dog Connector (JIR1+JOBS1+JWDT1) ....116 Table B.32:IrDA / OBS / Watch Dog Connector ....... 116 ................116 B.33 RTC/CMOS Clear (JCMOS1) ............... 116 Table B.33:RTC/CMOS Clear........... 116 ................116 B.34 ME Clear (JMECLR1) ................116 Table B.34:ME Clear ............... 116 AIMB-584 User Manual...
  • Page 11 Table B.38:JTAG CONNECTOR ..........118 ................118 B.39 DMA Channel Assignments ..............118 Table B.39:DMA Channel Assignments........118 B.40 Interrupt Assignments ................118 Table B.40:Interrupt Assignments..........118 B.41 1st MB Memory Map ................119 Table B.41:1st MB Memory Map ..........119 AIMB-584 User Manual...
  • Page 12 AIMB-584 User Manual...

  • Page 13: Chapter 1 General Information

    Chapter General Information...

  • Page 14: Introduction

    Introduction AIMB-584 is designed with the Intel Q87/C226 for industrial applications that require both performance computing and enhanced power management capabilities. The motherboard supports Intel Core i7 Xeon E3-1275v3 3.5GHz/ E3-1225v3 3.2GHz/ E3-1268L 2.3GHz/ Core i7-4770 3.1GHz/ Core i5-4570 2.9GHz/ Core i3 4330 3.5 GHz/ Pentium G3420 3.2 GHz/ Celeron G3320TE 2.3 GHz processor up to 8 MB L3...

  • Page 15: Input/Output

    USB port: Supports up to 8 USB 2.0 ports with transmission rates up to 480 Mbps and 4 USB 3.0 ports with transmission rates up to 5 Gbps.  GPIO: AIMB-584 supports 8-bit GPIO from super I/O for general purpose con- trol application. 1.3.4 Graphics ...

  • Page 16: Jumpers And Connectors

    Board weight: 0.365 kg Jumpers and Connectors Connectors on the AIMB-584 motherboard link it to devices such as hard disk drives and a keyboard. In addition, the board has a number of jumpers used to configure your system for your application.

  • Page 17: Board Layout: Jumper And Connector Locations

    Voltage Display connector SPDIF1 Digital Audio connector 4 x 1 header pitch = 2.54 mm LPC1 Low pin count interface (2 x 7 pin header) Board layout: Jumper and Connector Locations Figure 1.1 Jumper and Connector Location AIMB-584 User Manual...

  • Page 18: Aimb-584 Board Diagram

    Figure 1.2 I/O Connectors AIMB-584 Board Diagram Figure 1.3 AIMB-584 Block Diagram AIMB-584 User Manual...

  • Page 19: Safety Precautions

    1, 2, and 3. In this case you connect either pins 1 and 2, or 2 and 3. A pair of needle-nose pliers may be useful when set- ting jumpers. AIMB-584 User Manual...

  • Page 20: Cmos Clear (Cmos1)

    1.8.2 CMOS Clear (CMOS1) The AIMB-584 motherboard contains a jumper that can erase CMOS data and reset the system BIOS information. Normally this jumper should be set with pins 1-2 closed. If you want to reset the CMOS data, set CMOS1 to 2-3 closed for just a few seconds, and then move the jumper back to 1-2 closed.

  • Page 21: Jusbpwr1-4 (Usb Power Selection Connector)

    Table 1.7: JIR1+JOB1+JWD1: Watchdog Timer Output and OBS Alarm Connector Pin Name Watch dog reset# output IRRX System reset input# SIO Warning Beep output IRTX SP1 Buzzer Beep input Note: Watch dog time-out reset# (4-6 short) / SIO Warning Beep enable (8-10 short). AIMB-584 User Manual...

  • Page 22: Jme1:Bios Update Me Mode Selector

    BIOS been updated. 1.8.8 JCASE1: Case Open Sensor The AIMB-584 motherboard contains a jumper that provides a chassis open sensor. The buzzer on the motherboard beeps when the case is opened. System Memory AIMB-584 has four 240-pin memory sockets for 1333/1600 MHz memory modules with maximum capacity of 32 GB (Maximum 8 GB for each DIMM).

  • Page 23: Memory Installation Procedures

    1.11 Cache Memory The AIMB-584 supports a CPU with one of the following built-in full speed L3 caches: 8MB for Intel Xeon E3 1275v3 8MB for Intel Xeon E3 1225v3...
  • Page 24 AIMB-584 User Manual...

  • Page 25: Chapter 2 Connecting Peripherals

    Chapter Connecting Peripherals...

  • Page 26: Introduction

    USB Ports (LAN1_USB01/LAN2_USB23/USB45/ USB89/USB1011/USB1213) The AIMB-584 provides up to 12 USB ports. The USB interface complies with USB Specification Rev 2.0 supporting transmission rates up to 480 Mbps and Rev 3.0 sup- porting transmission rate up to 5 Gbps and is fuse protected. The USB interface can be disabled in the system BIOS setup.

  • Page 27: Usb Power Switch

    USB Power Switch AIMB-584 allows users to set USB power between +5 VSB and +5 V. When the jumper is set as +5 V (default 2-3 pin), the board doesn't support wake from S3 via keyboard or mouse. If need to set as +5 Vsb, need to modify the jumper (1-2 pin) and ask for to modify the customized BIOS at the same time.

  • Page 28: Vga/Dvi-D Connector (Vga1+Dvi 1) Connector

    VGA/DVI-D Connector (VGA1+DVI 1) Connector AIMB-584 includes VGA and DVI interfaces that can drive conventional VGA and DVI displays. VGA is a standard 15-pin D-SUB connector commonly used for VGA. Pin assignments for VGA and DVI connectors are detailed in Appendix B.

  • Page 29: Serial Ports (Com1~Com6)

    Serial Ports (COM1~COM6) COM1 AIMB-584 supports six serial ports. COM1, COM2, COM4-6 supports RS-232. COM3 supports RS-232/422/485 (with 5V/12V power). JSETCOM3 is used to select the RS- 232/422/485 mode for COM3. These ports can connect to serial devices, such as a mouse or a printer, or to a com- munications network.

  • Page 30: Display Port (Dp1)

    Display Port (DP1) AIMB-584 has one external DP connector to supports the Display Port panel. AIMB-584 User Manual...

  • Page 31: Ps/2 Keyboard And Mouse Connector (Kbms1)/External Ps/2 Keyboard

    (KBMS2) Two 6-pin mini-DIN connectors (KBMS1) on the motherboard provide connection to a PS/2 keyboard and a PS/2 mouse, respectively. KBMS2 is for supporting the 2nd PS/ 2 keyboard and PS/2 mouse by a cable P/N 1700018699. AIMB-584 User Manual...

  • Page 32: Cpu Fan Connector (Cpu_Fan1)

    If a fan is used, this connector supports cooling fans of 500 mA (6 W) or less. System FAN Connector (SYSFAN1/2/3/4) If a fan is used, this connector supports cooling fans of 500 mA (6 W) or less. AIMB-584 User Manual...

  • Page 33: Front Panel Connectors (Jfp1/Jfp2/Jfp3)

    External speaker (JFP2/SPEAKER) JFP2/SPEAKER is a 4-pin connector for an external speaker. If there is no external speaker, the AIMB-584 provides an onboard buzzer as an alternative. To enable the buzzer, set pins 7 & 10 as closed. AIMB-584 User Manual...

  • Page 34: Power Led And Keyboard Lock Connector

    2-3 closed pins 1-2 closed panel switch via cable jumper setting System On System Suspend Fast flashes Fast flashes Fast flashes System Off Slow flashes 2.11 Line Out, Mic In Connector (AUDIO1) Line Out Mic In AIMB-584 User Manual...

  • Page 35: Digital Audio Connector (Spdif_Out1)

    This connector is for the S/PDIF audio module to allow digital output sound. Connect one end of the S/PDIF audio cable to this connector and the other end to the S/PDIF module. Note! The S/PDIF module is purchased separately. AIMB-584 User Manual...

  • Page 36: Serial Ata Interface (Sata1 ~ Sata6)

    2.13 Serial ATA Interface (SATA1 ~ SATA6) AIMB-584 features a high performance Serial ATA III interface (up to 600 MB/s) which eases hard drive cabling with thin, space-saving cables. Note! AIMB-584 on board SATA only supports Fedora 14 and 15 and SATA mode in BIOS should be set as AHCI mode.

  • Page 37: 8-Pin Alarm Board Connector (Volt1)

    2.15 PCI express x16 slot AIMB-584 provides a PCIe x16 slot for users to install add-on cards when their appli- cations require higher graphic performance than the CPU embedded graphics con- troller can provide.

  • Page 38: Front Panel Audio Connector (Fpaud1)

    I/O module cable. Note! For motherboards with the optional HD Audio feature, we recommend that you connect a high-definition front panel audio module to this con- nector to take advantage of the motherboard’s high definition audio capability. AIMB-584 User Manual...

  • Page 39: Atx Power Connector (Eatxpwr1, Atx12V1)

    Please connect the ATX12V1 connector with the PSU ATX 12V 4- pin connector. For a fully configured system, we recommend that you use a power supply unit (PSU) that complies with ATX 12 V Specification 2.0 (or later version) and provides a minimum power of 180 W. AIMB-584 User Manual...

  • Page 40: Lpt Connector (Lpt1)

    2.18 LPT Connector (LPT1) AIMB-584 has one 2x 13 pin header on board for print port device connection (LPT1). AIMB-584 User Manual...

  • Page 41: Lvds Inverter Connector (Inv1)

    2.19 LVDS Inverter Connector (INV1)  Note! Signal Description Signal Signal Description Vadj=0.75 V (Recommended: 4.7 K, 1/16 W) ENBKL LCD backlight ON/OFF control signal AIMB-584 User Manual...

  • Page 42: Lvds Connector (Lvds1)

    2.20 LVDS Connector (LVDS1) 2.21 General purpose I/O Connector (GPIO1) AIMB-584 User Manual...

  • Page 43: Edp Connector (Edp1) (Optional)

    2.22 eDP Connector (eDP1) (Optional) 2.23 JTAG Connector (JTAG1) AIMB-584 User Manual...
  • Page 44 AIMB-584 User Manual...

  • Page 45: Bios Operation

    Chapter BIOS Operation...

  • Page 46: Introduction

    BIOS Setup The AIMB-584 Series system has AMI BIOS built in, with a SETUP utility that allows users to configure required settings or to activate certain system features. The SETUP saves the configuration in the FLASH of the motherboard. When the power is turned off, the battery on the board supplies the necessary power to pre- serve the FLASH.

  • Page 47: Main Menu

    System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time must be entered in HH:MM:SS format. AIMB-584 User Manual...

  • Page 48: Advanced Bios Features

    3.2.2 Advanced BIOS Features Select the Advanced tab from the AIMB-584 setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...
  • Page 49 VGA Palette Snoop [Disable] Enables or Disables VGA Palette Registers Snooping.  PERR# Generation [ Disable] Enables or Disables PCI Device to Generate PERR#.  SERR# Generation [ Disable] Enables or Disables PCI Device to Generate SERR#. AIMB-584 User Manual...
  • Page 50 Link Status register. Value range from 10 to 10000 uS. – Unpopulated Links [ Keep Link On ] In order to save power, software will disable unpopulated PCI Express links, if this option set to 'Disable Link'. AIMB-584 User Manual...
  • Page 51 Select ACPI sleep state the system will enter when the SUSPEND button is pressed.  Lock Legacy Resources [ Disabled ] Enables or Disables Lock of Legacy Resources.  S3 Video Repost [ Disabled ] Enable or Disable S3 Video Repost. AIMB-584 User Manual...
  • Page 52  Security Device Support [ Disable ] Note! TCG EFI Protocol and INT1A interface won't be available. AIMB-584 User Manual...
  • Page 53 3.2.2.4 S5RTC Wake Settings The item allow you enable or disable system wake up on alarm event.  Wake system with Fixed Time [ Disabled ] Note! When enabled, system will wake up on the specified time. AIMB-584 User Manual...
  • Page 54 3.2.2.5 CPU Configuration  CPU Configuration The item shows you CPU specification and feature, the content could be differ- ent by the different CPU. AIMB-584 User Manual...
  • Page 55 3.2.2.6 SATA Configuration  SATA Controllers [ Enabled ] Enable or disable SATA Function.  SATA Mode [ IDE ] This can be configured as IDE, AHCI or RAID mode. AIMB-584 User Manual...
  • Page 56 3.2.2.7 Intel Rapid Start Technology  Intel Rapid Start Technology [ Disabled ] AIMB-584 User Manual...
  • Page 57 3.2.2.8 PCH FM Configuration  MEDS BIOS Status Code [ Disable ]  Firmware update Configuration – ME FW Image Re-Flash [ Disabled ] AIMB-584 User Manual...
  • Page 58 3.2.2.9 Intel® Anti-Theft Technology Configuration  Intel( R ) Anti-Theft Technology Configuration [ Enabled ]  Enter Intel ( R ) AT Suspend Mode [ Disabled ] AIMB-584 User Manual...
  • Page 59 Active Remote Assistance Process [ Disabled ] Trigger CIRA boot.  USB Configure [ Enable ] Enable/Disable USB Configure function.  PET Progress [ Enable ] User can Enable/Disable PET Events progress to receive PET events or not. AIMB-584 User Manual...
  • Page 60  USB Mass Storage Driver Support [ Enabled ]  USB hardware delays and time-outs USB Device transfer & reset time-out and delay setting.  Mass Storage Devices [ Auto ] Shows USB mass storage device information. AIMB-584 User Manual...
  • Page 61 3.2.2.12 Super IO Configuration  Super IO Chip [ NCT6776D ]  Serial Port 1 Configuration AIMB-584 User Manual...
  • Page 62 – Change Setting [ Auto ] To select an optimal setting for serial port 2. – Device Mode Serial port 2 could be selected as “Standard serial port mode”, “IrDA 1.0 (HP SIR) mode”, or “ASKIR mode”. AIMB-584 User Manual...
  • Page 63 To enable or disable Parallel Port. (LPT/LPTE) – Device Settings: IO=278h; IRQ =7 – Change Settings [ Auto ] To select an optimal setting for parallel port. – Device Mode [ ECP and EPP 1.9 Mode ] AIMB-584 User Manual...
  • Page 64  Digital I/O Configuration – Digital I/O Pin 1 - 8 [ Input ] 3.2.2.13 H/W Monitor  Smart Fan Mode Configuration AIMB-584 User Manual...
  • Page 65 ACPI Shutdown Temperature [ Disabled ] Use this to set the ACPI shutdown temperature threshold. When the system reaches the shutdown temperature, it will be automatically shut down by ACPI OS to protect the system from overheating damage. AIMB-584 User Manual...
  • Page 66 3.2.2.14 Second Super IO Configuration AIMB-584 supports 2nd super IO for COM 3-6, so this page of the BIOS menu is to set respective serial port configuration.  Serial Port 3 Configuration – Serial Port [ Enabled ] To “enable or disable” Serial Port 3.
  • Page 67  Serial Port 4 Configuration – Serial Port [Enabled] To "enable or disable" serial port 4. – Device Settings: IO=C88h; IRQ =10 – Change Settings [ Auto ] To select an optimal setting for serial port 4. AIMB-584 User Manual...
  • Page 68  Serial Port 5 Configuration – Serial Port [Enabled] To “enable or disable” serial port 5. – Device Settings: IO=C90h; IRQ =10 – Change Settings [ Auto ] To select an optimal setting for serial port 5. AIMB-584 User Manual...
  • Page 69 Serial Port 6 Configuration – Serial Port [ Enabled ] To “enable or disable” serial port 6. – Device Settings: IO=C98h; IRQ =10 – Change Setting [ Auto ] To select an optimal setting for serial port 6. AIMB-584 User Manual...
  • Page 70 3.2.2.15 Serial Port Console Redirection  Console Redirection [ Enabled ] Enable or disable the console redirection feature AIMB-584 User Manual...

  • Page 71: Chipset Configuration Setting

    Users can display a Chipset Setup option by highlighting it using the <Arrow> keys. All Chipset Setup options are described in this section. The Chipset Setup screens are shown below. The sub menus are described on the following pages. AIMB-584 User Manual...

  • Page 72: Pch-Io Configuration

    Enable or disable PCIE to wake the system from S5.  DeepSx Power Policies Enable or Disable Deep Sleep mode.  Restore AC Power Loss [ Power Off ] This item allows users to select off, on and last state. AIMB-584 User Manual...
  • Page 73 PCIe-USB Glitch W/A for bad USB device(s) connected behind PCIE/PEG Port.  PCIE Root Port Function Swapping [ Disabled ] Enable or disable PCI Express PCI Express Root Port Function Swapping.  Subtractive Decode [ Disabled ] Enable or disable PCI Express Subtractive Decode. AIMB-584 User Manual...
  • Page 74 Correctable Error. PME SCI [ Disabled ]: Enable or disable PCI Express PME SCI. Hot Plug [ Disabled ]: Enable or disable PCI Express Hot Plug. – PCIe Speed [ Auto ] Select PCI Express port speed. AIMB-584 User Manual...
  • Page 75 USB Preconditon [ Disabled ] To enable or disable precondition work on USB host controller for faster enu- meration.  XHCI Mode [ Auto ] Mode of operation of XHCI controller.  BTCG [ Enabled ] Enable/Disable trunk clock gating. AIMB-584 User Manual...
  • Page 76 Azalia [ Auto] This item set for control Detection of the Azalia device. [Disabled] = Azalia will be unconditionally disabled. [Enabled] = Azalia will be unconditionally enabled [Auto] = Azalia will be enabled if present, disabled otherwise. AIMB-584 User Manual...

  • Page 77: System Agent (Sa) Configuration

    3.3.2 System Agent (SA) Configuration  VT-d [ Enabled ] Disable or enable VT-d function on MCH. 3.3.2.1 Graphics Configuration  Graphics Turbo IMON Current [ 14-31 ] AIMB-584 User Manual...
  • Page 78 Select the video device which will be activated during POST. Secondary boot display selection will appear based on customer's selection. Note! When BIOS set as " Auto", only CRT is supported as the single display under DOS. AIMB-584 User Manual...
  • Page 79 PASS CRT+EDP+DVI PASS CRT+DP+EDP PASS CRT+DP+DVI PASS  LVDS Panel Type [ Disabled ] Note! When you enable LVDS type, customers can choose different resolution settings from the table. Default resolution setting is "800 x 600 18-bit". AIMB-584 User Manual...
  • Page 80 Select the Active LFP Configuration. Note! LVDS and eDP co-layout designed on AIMB-584, and the default setting in BIOS and HW both are LVDS. If customer would like to active eDP function, then both of HW and BIOS need to be modified.
  • Page 81 Enable or disable DMI Gen 2/nAuto means Disabled for IVB A0 MB/DT and IVB B0 MB, Enabled for other CPUs.  DMI De-emphasis Control [ -6 dB ] Configure the De-emphasis control on DMI  DMI IOT [ Disabled ] AIMB-584 User Manual...
  • Page 82 Perform PEG Swing Control, on IVB C0 and Later.  PEG Gen3 Equalization [ Enabled ] Perform PEG Gen3 Equalization steps  PEG Gen3 Root Port Preset Value for each Lane Root Port Preset Value Per lane for Gen3 Equalization. AIMB-584 User Manual...
  • Page 83 The starting value [4..255] for the backward margin search. 3.3.2.4 Memory Configuration The item shows you memory specification included RC version, Frequency, size and voltage information etc.  DIMM profile Select DIMM timing profile that should be used. AIMB-584 User Manual...

  • Page 84: Boot Setting

    Quiet Boot [ Disabled ] If this option is set to disabled, the BIOS displays normal POST messages. If enabled, an OEM logo is shown instead of POST messages.  Boot Option #1/#2 Choose boot priority from boot device AIMB-584 User Manual...

  • Page 85: Security Setting

    Select this option and press <ENTER> to access the sub menu, and then type in the password. Set the Administrator password.  User Password Select this option and press <ENTER> to access the sub menu, and then type in the password. Set the User Password. AIMB-584 User Manual...

  • Page 86: Save & Exit Configuration

    Select Exit Saving Changes from the Exit menu and press <Enter>. The fol- lowing message appears: Save Configuration Changes and Exit Now? [Ok] [Cancel] Select Ok or cancel.  Discard Changes and Reset Select this option to quit Setup without making any permanent changes to the system configuration. AIMB-584 User Manual...
  • Page 87 Select Restore Defaults from the Exit menu and press <Enter>.  Save as User Default Save the all current settings as a user default.  Restore User Default Restore all settings to user default values.  Boot Override Shows the boot device types on the system. AIMB-584 User Manual...
  • Page 88 AIMB-584 User Manual...

  • Page 89: Software Introduction & Service

    Chapter Software Introduction & Service...

  • Page 90: Introduction

    Introduction The mission of Advantech Embedded Software Services is to "Enhance quality of life with Advantech platforms and Microsoft® Windows® embedded technology." We enable Windows® Embedded software products on Advantech platforms to more effectively support the embedded computing community. Customers are freed from the hassle of dealing with multiple vendors (hardware suppliers, system integrators, embedded OS distributors) for projects.
  • Page 91 System Throttling Refers to a series of methods for reducing power consump- tion in computers by lowering the clock frequency. This API allows the user to adjust the clock from 87.5% to 12.5%. AIMB-584 User Manual...

  • Page 92: Software Utility

    Monitoring is a utility for customers to monitor system health, like voltage, CPU and system temperature and fan speed. These items are important to a device, if critical errors occur and are not solved immediately, permanent damage may be caused. AIMB-584 User Manual...

  • Page 93: Chipset Software Installation Utility

    Chapter Chipset Software Installation Utility...

  • Page 94: Before You Begin

    To facilitate the installation of the enhanced display drivers and utility software, read the instructions in this chapter carefully. The drivers for AIMB-584 are located on the software installation CD. The driver in the folder of the driver CD will guide and link you to the utilities and drivers under a Windows system.

  • Page 95: Windows 7 Driver Setup

    Windows 7 Driver Setup Insert the driver CD into your system's CD-ROM drive. Navigate to the "INF" folder and click "infinst.autol.exe" to complete driver installation. AIMB-584 User Manual...
  • Page 96 AIMB-584 User Manual...

  • Page 97: Vga Setup

    Chapter VGA Setup...

  • Page 98: Introduction

    See Chapter 5 for information on installing the CSI utility. Insert the driver CD into your system's CD-ROM drive. Navigate to the "VGA" folder and click "setup.exe" to complete the installation of the drivers for Windows 7 32 or 64 bit OS. AIMB-584 User Manual...
  • Page 99 AIMB-584 User Manual...
  • Page 100 AIMB-584 User Manual...

  • Page 101: Lan Configuration

    Chapter LAN Configuration...

  • Page 102: Introduction

    Introduction The AIMB-584 has dual Gigabit Ethernet LANs via dedicated PCI Express x1 lanes (Intel 82579LM (LAN1) and 82583V (LAN2)) that offer bandwidth of up to 500 MB/ sec, eliminating the bottleneck of network data flow and incorporating Gigabit Ether- net at 1000 Mbps.

  • Page 103: Windows® 7 Driver Setup (Intel I217Lm/ Intel I211At)

    Windows® 7 Driver Setup (Intel I217LM/ Intel I211AT) Insert the driver CD into your system's CD-ROM drive. Select the “LAN” folder then navigate to the directory for your OS. AIMB-584 User Manual...
  • Page 104 AIMB-584 User Manual...
  • Page 105 Appendix Programming the Watchdog Timer...

  • Page 106: Appendix A Programming The Watchdog Timer

    Programming the Watchdog Timer AIMB-584's watchdog timer can be used to monitor system software operation and take corrective action if the software fails to function within the programmed period. This section describes the operation of the watchdog timer and how to program it.
  • Page 107 Unlock NCT6776D Select register of watchdog timer Enable the function of the watchdog timer Use the function of the watchdog timer Lock NCT6776D AIMB-584 User Manual...

  • Page 108: Table A.1: Watchdog Timer Registers

    Bit 5: Write 1 to generate a timeout signal immedi- ately and automatically return to 0. [default=0] Bit 4: Read status of watchdog timer, 1 means timer is “timeout”. Write this address to I/O port 2E (hex) to lock the AA (hex) ----- watchdog timer 2. AIMB-584 User Manual...

  • Page 109: Example Program

    Inc dx Mov al,10 Out dx,al ;----------------------------------------------------------- Dec dx ; Lock NCT6776D Mov al,0aah Out dx,al Enable watchdog timer and set 5 minutes as timeout interval ;----------------------------------------------------------- Mov dx,2eh ; Unlock NCT6776D Mov al,87h Out dx,al Out dx,al AIMB-584 User Manual...
  • Page 110 Enable watchdog timer to be reset by mouse ;----------------------------------------------------------- Mov dx,2eh ; Unlock NCT6776D Mov al,87h Out dx,al Out dx,al ;----------------------------------------------------------- Mov al,07h ; Select registers of watchdog timer Out dx,al Inc dx Mov al,08h Out dx,al ;----------------------------------------------------------- AIMB-584 User Manual...
  • Page 111 Dec dx ; Enable the function of watchdog timer Mov al,30h Out dx,al Inc dx Mov al,01h Out dx,al ;----------------------------------------------------------- Dec dx ; Enable watchdog timer to be strobed reset by keyboard Mov al,0f7h Out dx,al Inc dx In al,dx Or al,40h Out dx,al AIMB-584 User Manual...
  • Page 112 Dec dx ; Generate a time-out signal Mov al,0f7h Out dx,al ;Write 1 to bit 5 of F7 register Inc dx In al,dx Or al,20h Out dx,al ;----------------------------------------------------------- Dec dx ; Lock NCT6776D Mov al,0aah Out dx,al AIMB-584 User Manual...

  • Page 113: Appendix B Pin Assignments

    Appendix Pin Assignments...

  • Page 114: Serial Port (Com2)

    COM2_CTS# COM2_DTR# COM2_RI# Serial Port: COM3/4/5/6 Connector (COM3456) Table B.2: COM3456 Connector (2 x 20 Pin Header) Pin Name Pin Name COM3_DCD# COM3_DSR# COM3_SIN COM3_RTS# COM3_SOUT COM3_CTS# COM3_DTR# COM3_RI# COM4_DCD# COM4_DSR# COM4_SIN COM4_RTS# COM4_SOUT COM4_CTS# COM4_DTR# COM4_RI# AIMB-584 User Manual...

  • Page 115: Rs-232/ 422/ 485 Selection Jumpers (Jsetcom3)

    (JSETCOM3) Table B.3: RS232/422/485 Selection Jumper (2 x 9 Pin Header) Pin Name Pin Name UART_SIN COM3_SOUT RXD485 COM3_TXD485N UART_SIN COM3_RXD485P RXD422 UART_SIN DTR# RXD232 COM3_SIN DCD# COM3_DTR# SOUT COM3_TXD485P COM3_DCD# COM3_RXD485N COM3_RI Selection Jumper Setting (JSETCOM3_V1) AIMB-584 User Manual...

  • Page 116: Lvds Connector (Lvds1)

    Pin Name Pin Name VDD_LVDS1 (*) LA_DATAP1 VDD_LVDS1 (*) LB_DATAP1 LVDS1_Detect# LVDS_DDC_CLK LVDS_DDC_DAT VDD_LVDS1 (*) LA_DATAN2 VDD_LVDS1 (*) LB_DATAN2 LA_DATAN0 LA_DATAP2 LA_DATAN3 LB_DATAN0 LB_DATAP2 LB_DATAN3 LA_DATAP0 LA_DATAP3 LB_DATAP0 LB_DATAP3 LA_CLKN L_BKLTEN VCON (VESA / JEIDA LB_CLKN select) AIMB-584 User Manual...

  • Page 117: Lvds Panel Voltage Selection For Lvds1 Connector (Jlvds1)

    +3.3V Note: +3.3V (JLVDS1, 4-6 short) +5V (JLVDS1, 2-4 short) +12V (JLVDS1 3-4 short) Inverter Connector for LVDS1 (INV1) Table B.7: Inverter connector for LVDS1 ( 1x 5 Pin Header) Name +12V LVDS1_Backlight Enable LVDS1_Brightness PWM Control AIMB-584 User Manual...

  • Page 118: Edp Connector (Edp) (Optional)

    EDP3+ EDP1- EDP1+ EAUX- EAUX+ EDP2- EDP2+ VDD_LVDS1 (*) VDD_LVDS1 (*) Note: (*) Voltage depends on setting of JLVDS1. ATX 12 V Connector (ATX12V1) Table B.9: ATX 4 Pin Main Power Connector (ATX12V1) Pin Name +12V +12V AIMB-584 User Manual...

  • Page 119: Atx 24 Pin Main Power Connector (Atxpwr1)

    ATX 24 Pin Main Power Connector (ATXPWR1) Table B.10: ATX 20 Pin Main Power Connector Pin Name Pin Name +3.3V +3.3V +3.3V PS_ON# ATXPG 5VSB +12V +12V +3.3V B.11 Serial ATA III (SATA 1 ~ 6) Table B.11: SATA Connector Pin Name AIMB-584 User Manual...

  • Page 120: Cpu Fan Connector (Cpufan1)

    Pin Name SYS_FAN_POWER (+12V) SYS_FAN_SPEED B.14 USB 2.0 Pin Header (USB56, USB78, USB910, USB1112) Table B.14: Two-port USB 2.0 Header (2 x 5 Pin Header) Pin Name Pin Name +5V or +5V_DUAL (*) 2 +5V or +5V_DUAL (*) AIMB-584 User Manual...

  • Page 121: Connector (Jusbpwr12)

    Table B.16: USB Header Power Switch for LAN1_USB34 Ports Description USB POWER selection for LAN2_USB34 Pin Name +5V_DUAL USB34 5V Power Input B.17 USB POWER Selection for USB56, USB78 Connector (JUSBPWR5678) Table B.17: USB Header Power Switch for USB56, USB78 Ports Pin Name +5V_DUAL AIMB-584 User Manual...

  • Page 122: Usb Power Selection For Usb910, Usb1112 Connector (Jusbpwr9101112)

    B.19 Keyboard / Mouse Connector (KBMS2) Table B.19: Keyboard/ Mouse Connector ( 1 x 6 Pin Header) Pin Name KB_CLK# KB_DAT# MS_DAT# KBMS1_VCC (*) MS_CLK# Note: (*) Depends on Setting of JUSBPWR12. B.20 Printer Port Connector (LPT1) AIMB-584 User Manual...

  • Page 123: Digital Io Connector (Gpio1)

    GPIO0 from GP70 of SIO GPIO4 from GP74 of SIO GPIO1 from GP71 of SIO GPIO5 from GP75 of SIO GPIO2 from GP72 of SIO GPIO6 from GP76 of SIO GPIO3 from GP73 of SIO GPIO7 from GP77 of SIO +5V_DUAL AIMB-584 User Manual...

  • Page 124: Smbus Connector From Pch (Smbus1)

    Table B.23: Audio Front Panel Connector Pin Name Pin Name MIC2_L MIC2_R Front Panel PRESENCE# LINE2_R MIC2-Jack Detection Return Jack Detection Sense LINE2_L LINE2-Jack Detection Return B.24 SPDIF Connector (SPDIF_OUT1) Table B.24: SPDIF Connector Pin Name SPDIF-OUT AIMB-584 User Manual...

  • Page 125: Bios Ic Socket (Spi1)

    B.26 BIOS Update/Debug Connector (SPI_CN1) Table B.26: BIOS Update/Debug Connector Pin Name Pin Name +3.3V_SPI SPI_CS# SPI_CLK SPI_SO_R1 SPI_SI B.27 LAN LED (LANLED1) Table B.27: LAN LED Pin Name LAN1LED0 (ACTIVE) LAN2LED1 (ACTIVE) LAN1_LED_Power (+3.3V) LAN2_LED_Power (+3.3V) AIMB-584 User Manual...

  • Page 126: Alarm Board/Cmm Power Connector (Volt1)

    AT/ATX Mode Selection Connector (PSON1) Table B.29: AT/ATX Mode Selection Connector Pin Name +3.3V Note: ATX mode (2-3 short): System boots up by pressing power button. AT mode (1-2 short): System boots up w/o pressing power button after turning on AC. AIMB-584 User Manual...

  • Page 127: Front Panel (Pwr Led&Kb Lock#) Pin Header (Jfp1)

    HDD LED- Power Button Speaker - H/W monitor IC_SDA Reset Button Speaker H/W monitor IC_SCL Reset Button Note: PWRBTN#(3-6) / RESET#(9-12) /HDD LED(2-5) / Serial bus from HW monitor IC(8-11) / Internal Buzzer(7-10 short) /External speaker(1-10 or 1-7). AIMB-584 User Manual...

  • Page 128: Irda / Obs / Watch Dog Connector (Jir1+Jobs1+Jwdt1)

    RTC/CMOS Clear (JCMOS1) Table B.33: RTC/CMOS Clear Pin Name RTCRST# Note: Normal operation (1-2 short) as default / Resets register bits in the RTC well. (2-3 short). B.34 ME Clear (JMECLR1) Table B.34: ME Clear Pin Name AIMB-584 User Manual...

  • Page 129: B.35 Flash Descriptor Security Override (Jmeclr1)

    CASE OPEN Switch (JCASEOP_SW1) Table B.37: JCASE OPEN Switch Description Pin Name CASEOP# w/ normal close switch CASE OPEN Setting CASEOP w/ normal open switch Note: Setting Case Open w/ Normal Close or Open Switch. (2-3) is default. AIMB-584 User Manual...

  • Page 130: B.38 Jtag Connector (Jtag1)

    Interrupt# Interrupt source Parity error detected IRQ0 System timer IRQ1 Keyboard IRQ2 Interrupt from controller 2 (cascade) IRQ8 Real-time clock IRQ9 Cascaded to INT 0A (IRQ 2) IRQ10 Serial communication port 3/4/5/6 IRQ11 Available IRQ12 PS/2 mouse AIMB-584 User Manual...

  • Page 131: B.41 1St Mb Memory Map

    1st MB Memory Map Table B.41: 1st MB Memory Map Addr. range (Hex) Device E0000h - FFFFFh BIOS CC000h - DFFFFh Unused C0000h - CBFFFh VGA BIOS A0000h - BFFFFh Video Memory 00000h - 9FFFFh Base memory AIMB-584 User Manual...
  • Page 132 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2013...

Table of Contents
