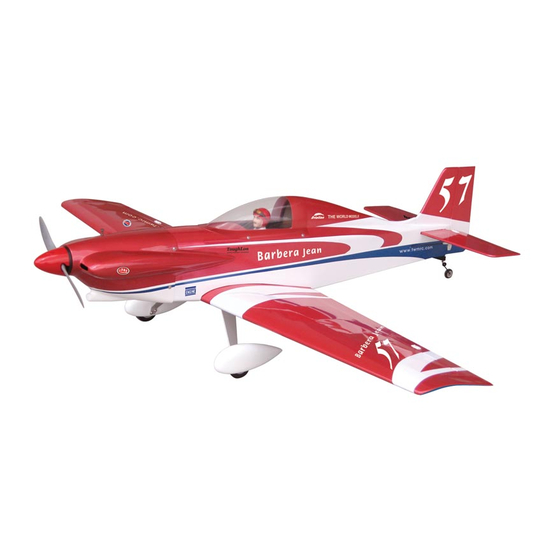

BARBERA JEAN 52
0.52-0.56 cu. in. displacement 4-stroke
Requires : 4-channel radio w/ 5 standard servos
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this
kind of engine powered precision model. Operating this model without prior preparation may
cause injuries. Remember, safety is the most important thing. Always keep this instruction
manual at hand for quick reference.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
Specifications
*Specifications are subject to change without notice.*
53 in / 1350 mm
511 sq in / 33 sq dm
5 Ibs / 2300 g
45.5 in / 1160 mm
ALMOST-READY-TO-FLY(ARF)SERIES
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
MADE IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Barbera Jean 52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for THE WORLD MODELS Barbera Jean 52

Summary of Contents for THE WORLD MODELS Barbera Jean 52

  • Page 1 INSTRUCTION MANUAL BARBERA JEAN 52 0.52-0.56 cu. in. displacement 4-stroke Requires : 4-channel radio w/ 5 standard servos Specifications Wing Span 53 in / 1350 mm Wing Area 511 sq in / 33 sq dm Flying Weight 5 Ibs / 2300 g Fuselage Length 45.5 in / 1160 mm...
  • Page 2 BARBERA JEAN 52 INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.12 SAFETY PRECAUTIONS P.12 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.
  • Page 3 Parts List 1. MAIN WING -- 1 pair 10. ENGINE MOUNT PL5111050 -- 1 set SOCKET HEAD SCREW M4x25mm -- 4 pcs 2. SCREW PM2x16mm -- 4 pcs WASHER d4xD9mm -- 4 pcs CLEVIS -- 2 pcs STRAPER -- 2 pcs 11.

  • Page 4: Aileron Servo

    Apply instant type CA glue to both sides of each hinge. Aileron Servo Lead Bottom View Aileron Servo PM2x16mm Screw Ø1mm pilot holes for The World Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. PWA2x8mm Screw Straper Fuel Tube Ø6x5mm...

  • Page 5: Main Landing Gear

    Main Wing Please dry fit wing joiner into left and right wing to make sure they fit with the proper dihedral angle, mark the wing joiner if necessary. Apply epoxy glue to both sides of all surfaces in contact. Use a stick to apply the glue to inner side of wing joiner sleeve, and apply the glue to wing joiner before putting them together.
  • Page 6 Stabilizer & Elevator Temporary install the main wing, adjust leveling of the stabilizer to make it as parallel to the main wing as possible. *Also refer to step 18 Wing Setting. (Stabilizer) (Main Wing) Apply instant type CA glue to Completed both sides of each hinge.

  • Page 7: Elevator Pushrod

    Vertical Fin & Rudder C’ Apply instant type CA glue to both sides of each hinge. C=C’ 19mm Completed Elevator Pushrod Ø1mm pilot holes for World Models tri-horn are pre-drilled. PM2x12mm Screw Please look for pin-hole marks at under side of control surfaces. PM2x12mm PM2x8mm Fuel Tube...

  • Page 8: Fuel Tank

    Engine Mount M4x25mm Socket Head Screw d4xD9mm Washer d4xD9mm Washer M4x25mm Socket Head Screw Engine Mount PL5111050 Blind nuts are off-centered to keep the spinner at the fuselage axis. Fuel Tank Fuel Tank 320cc Fuel Tank Install Balsa 8x8x105mm 320cc (For Fuel Tank Position Fixing ) Fuel Tank 320cc...
  • Page 9 Engine PM3.5x30mm Screw M3.5 Nut M3.5 Nut d3.5xD8mm Washer d3.5xD8mm Washer PM3.5x30mm Throttle Pushrod Ø1.2x420mm Plastic Tube d2xD3x300mm Installed Engine Position 115 mm 4.53 in.

  • Page 10: Radio Equipment

    Servo Set 3x3mm Set Screw Linkage Connector Throttle Pushwire M2 Nut Washer 2mm Washer 1.5mm Washer Throttle Servo M2 Nut Please refer to the attached sheet for linkage connector installation. Radio Equipment PWA2x8mm Screw PWA2x8mm Install and arrange the servo as shown in the diagram.
  • Page 11 Main Wing M4x30mm Socket Head Screw d4xD12mm Washer Plywood 2x30x100mm ( Wing Protection ) M4x30mm d4xD12mm Socket Head Screw Washer Completed Canopy First insert the grommet to the canopy then apply screw. PWA2.3x8mm Screw d1.5xD6.5mm SIlicon Grommet Completed PWA2.3x8mm d1.5xD6.5mm SIlicon Grommet P.10...
  • Page 12 Cowling & Spinner Please refer to the attached sheet for usage of the transparent 3D template. PWA2.6x12mm Screw d1.5xD6.5mm SIlicon Grommet Spinner Ø57mm PWA2.6x12mm d1.5xD6.5mm SIlicon Grommet Completed Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A’...

  • Page 13: Control Throws

    # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. is specially designed to be powered by 4C 0.52-0.56 engine, using a more BARBERA JEAN 52 powerful engine does not mean better performance. In fact, over powered engine may cause structural damage and injuries.
  • Page 14 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
  • Page 15 Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
  • Page 16 A2830805...
