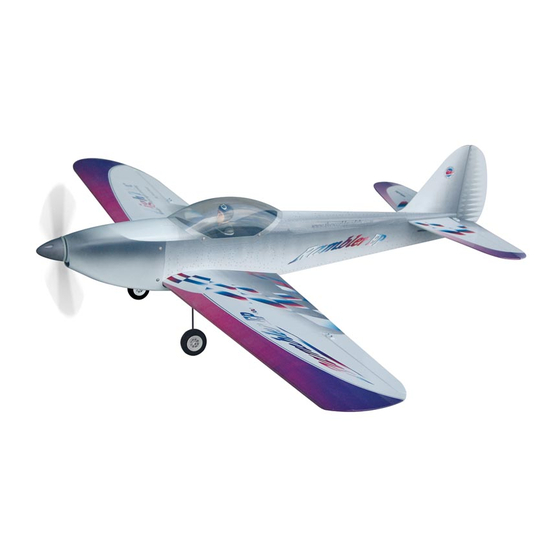

Requires: 4-channel radio w/ 4 micro servos,
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
E196BPO11180902
Outrunner Motor KM0283800
20A brushless ESC, 3 cells 11.1V
2100 mAh Li - Po battery & charger.
*Specifications are subject to change without notice.*
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
Specifications
39.5 in/ 1000 mm
259 sq in/ 16.7 sq dm
22 oz/ 620 g
31.5 in/ 805 mm
INSTRUCTION MANUAL
(E196B)
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF) SERIES
MADE IN CHINA
Advertisement
Table of Contents
Related Manuals for THE WORLD MODELS Rambler EP
Summary of Contents for THE WORLD MODELS Rambler EP
- Page 1 Operating this model without prior preparation may cause injuries. Remember, safety is the most important thing. Always keep this instruction manual at hand for quick reference. FACTORY PRE-FABRICATED The World Models ALMOST-READY-TO-FLY(ARF) SERIES Manufacturing Co., LTD. MADE IN CHINA www.theworldmodels.com...
- Page 2 I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P. 3 -9 SAFETY PRECAUTIONS BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts.
- Page 3 FUEL TUBE Ø4x4mm -- 1 pc. HORN -- 1 pc. COVERING:-- SCREW PM2x8mm -- 2 pcs LIGHTEX SGX 196000 COVERING-RAMBLER EP LIGHTEX SGX 100 WHITE SOCKET HEAD SCREW M3x8mm -- 2 pcs SCREW PM2x12mm -- 4 pcs SCREW PWA2x8mm -- 4 pcs...
- Page 4 Main Wing Aileron Servo Lead Bottom View Apply instant type CA glue to both sides of each hinge. straper Aileron Servos Screw PM2x16mm Ø1mm pilot holes for World Models tri-horn are pre-drilled. PM2x16mm Fuel Tube Please look for pin-hole marks Ø4x4mm Clevis at under side of control surfaces.
- Page 5 Stabilizer & Elevator (Stabilizer) Temporary install the main wing, adjust leveling of the stabilizer to make it as parallel to the main wing as possible. (Main Wing) B=B' Remove coverings for all surfaces in contact before applying A/B epoxy glue. Completed Apply instant type CA glue to both sides of each hinge.
-
Page 6: Rudder Pushrod
Tail Landing Gear Wire Ø1x85mm Wooden Block Bottom View Rudder Pushrod 1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. crew PM2 x 8mm Ø1.4x425mm 18mm 85mm Fuel Tube Ø4x4mm Clevis PM2 x 8mm... - Page 7 Outrunner Motor & Cowling M3x8mm Socket Head Screw d2xD5mm Washer PM2x12mm Screw M2 Nut PM2x12mm PWA2x8mm Screw d3xD7mm Washer d2xD5mm Washer Don't over-tighten the PM2 screws, too much KP0011310 stress on the screws Solder Solder could split the firewall. M3x8mm Paper d3xD7mm Washer TO ALLOW FOR BACKLASH...
-
Page 8: Radio Equipment
Radio Equipment Elevator Servo Sponge Double-Sided Tape Brushless ESC Straper Battery Elevator Pushrod Fuel Tube Ø4x4mm Rudder Pushrod Rudder Servo Battery Tie Motor Main Wing Screw PM2.5x 16mm Washer d2.5 x D8mm 2.5mm 2.5mm d2.5 x D8mm PM2.5x16mm Washer Wing Protection 2x20x64 mm Main Landing gear PA2.3x12mm Screw... - Page 9 Canopy Pilot Screw PWA2 x 8mm PWA2 x 8mm Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A =A ' B =B ' C =C ' E196BPO11180902...
-
Page 10: Control Throws
Control Throws Adjust the control throws as shown in the diagram. These throws are good for general Rudder 20mm flying. You can adjust according to your personal preference. 20mm Elevator 10mm 10mm Aileron The ideal C.G. position is 58mm (2.28 in.) behind C.G. - Page 11 Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to AirBorne Models, 4749-K, Bennett Drive, Livermore, CA 94551 USA. 1.
- Page 12 The World Models Manufacturing Co., LTD. www .thew orldm odels .com E196BPO11180902...
