iPF770
c Printhead Fixer Lever
Locks the Printhead Fixer Cover.
d Printhead Fixer Cover
Holds the Printhead in place.

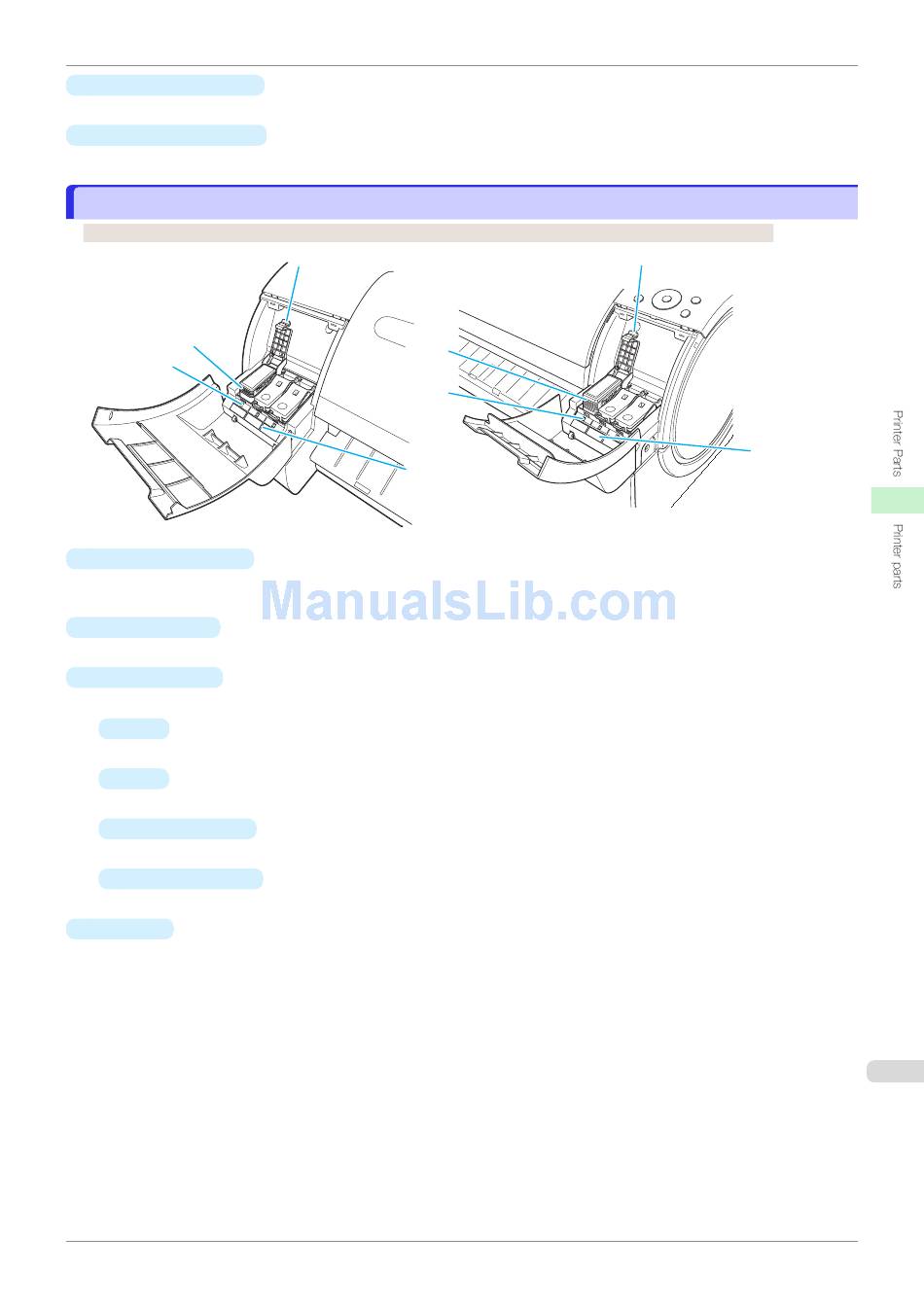

Ink Tank Cover (Inside)

Ink Tank Cover (Inside)

Left Side
d
c
a Ink Tank Lock Lever
A lever that locks the Ink Tank in place and protects it. Lift and press down the lever when replacing an Ink
Tank.
b Ink Color Label
Load an Ink Tank that matches the color and name on this label.
c Ink Lamp (Red)
Indicates the state of the Ink Tank as follows when the Ink Tank Cover is opened.
• On
The Ink Tank is installed correctly.
• Off
No Ink Tank is installed, or the ink level detection function has been released.
• Flashing Slowly
Not much ink is left.
• Flashing Rapidly
There is no ink left.
d Ink Tank
Cartridges of ink in various colors.
User's Guide
a
d
c
b
Ink Tank Cover (Inside)
Right Side
a
b
437
