Disassembly Instructions; How To Connect The Coaxial Cable; Removing The Covers; Removing The Front Unit And Pa Cover - Icom IC-718 Service Manual Addendum

SECTION 3

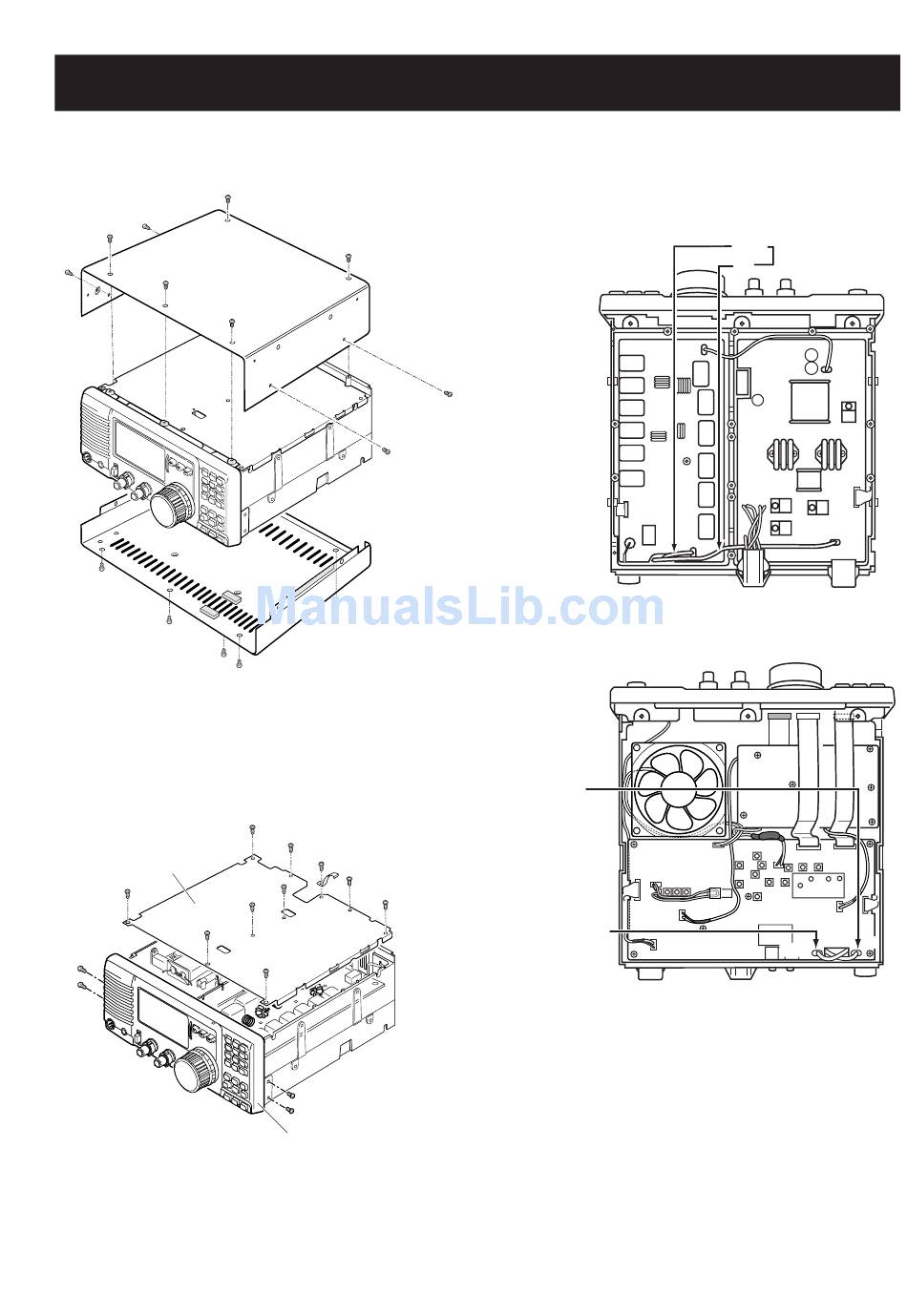

• Removing the covers

Remove 14 screws from the top and bottom covers.

• Removing the Front unit and PA cover

Remove 4 screws from the front panel.
Remove 10 screws from the shield cover.
PA cover

DISASSEMBLY INSTRUCTIONS

FRONT panel

• How to connect the coaxial cable

Connect the coaxial cable as shown below.
FILTER
J6
from PA unit
J3
from FILTER unit
3 - 1
J701
to MAIN unit
J1
PA unit
unit
J3
PLL unit
MAIN unit
J701
J6
J1
