Activating Voice And Data Convergence - Alcatel-Lucent Extended Communication Server Installation & Configuration Manual

Chapter
8
8.2

Activating Voice and Data Convergence

Note:
For efficiency reasons, we recommend that both Extended Communication Server and OmniPCX Office
belong to the same subnetwork.
To activate voice and data convergence:
1. Select the Service management >OmniPCX Office > Detection and Configuration
menu.
2. Select the IP detection tab.
3. Click Detection of the OmniPCX Office IP address.
After some seconds, the OmniPCX Office IP address is displayed.
4. If automatic detection does not succeed: in the IP address OmniPCX Office field, enter
the OmniPCX Office IP address
5. Select the Country of the OmniPCX Office
6. Select the Area code of the OmniPCX Office (optional)
This information is used to convert a call number, retrieved from the Click to Call
application, to a local area number or a national number before being transmitted to the
OmniPCX Office.
7. Click OK
8. Change the Status of the Voice / Data convergence service option button to On.
8-2

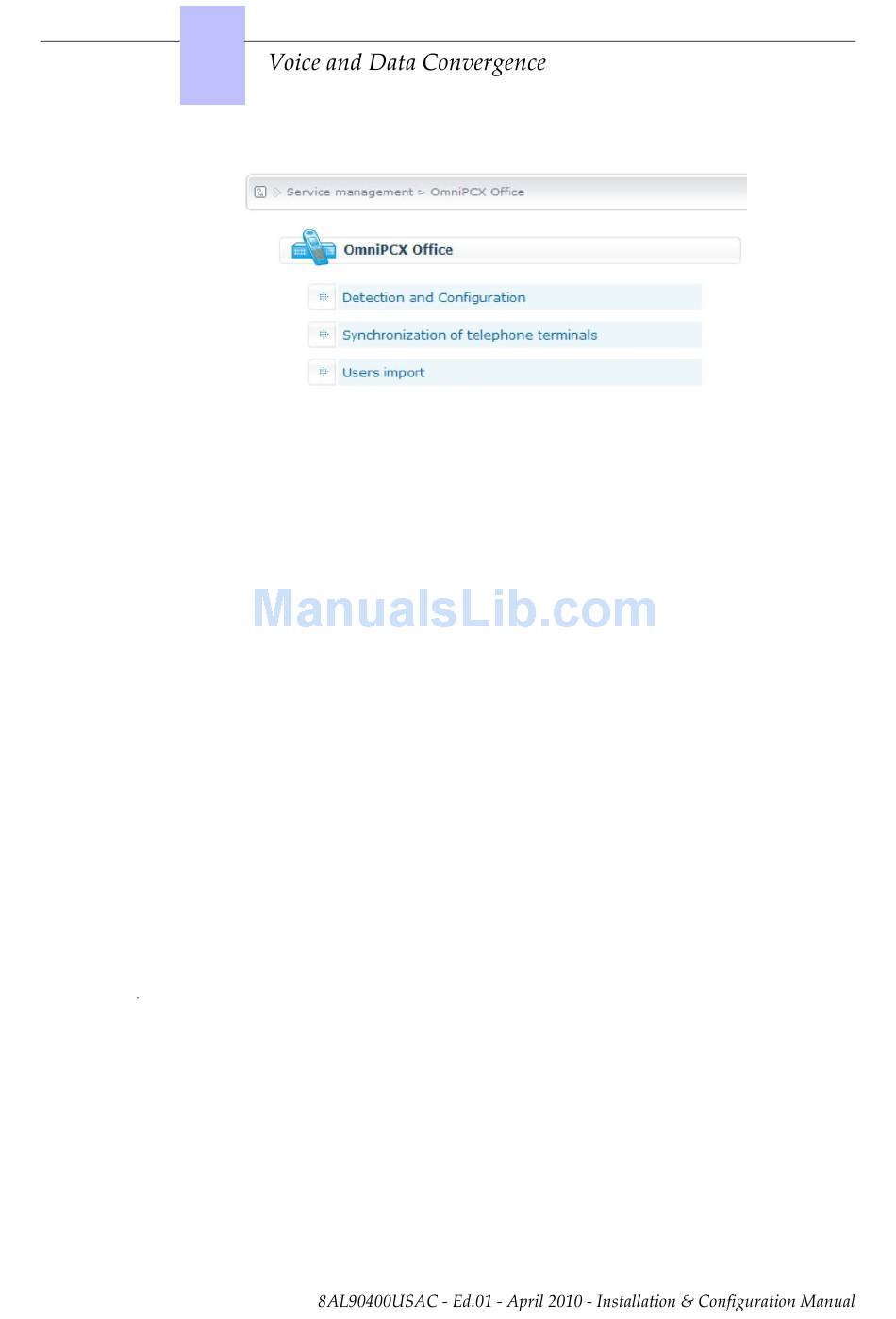

Figure 8.2: OmniPCX Office Icon and menu
