Alcatel-Lucent Extended Communication Server Installation & Configuration Manual page 56

Chapter
7
To create a rule for such a subnetwork:
1. Select the Service management > Security > Firewall > Advanced settings menu.
2. Select the Computer, networks tab.
3. In the Name of new group or network field, enter a name for the subnetwork.
4. Click Create.
A creation form is displayed.
a. In this form, select the network option.
b. Enter the network address and mask.
c. Click OK.
7-4

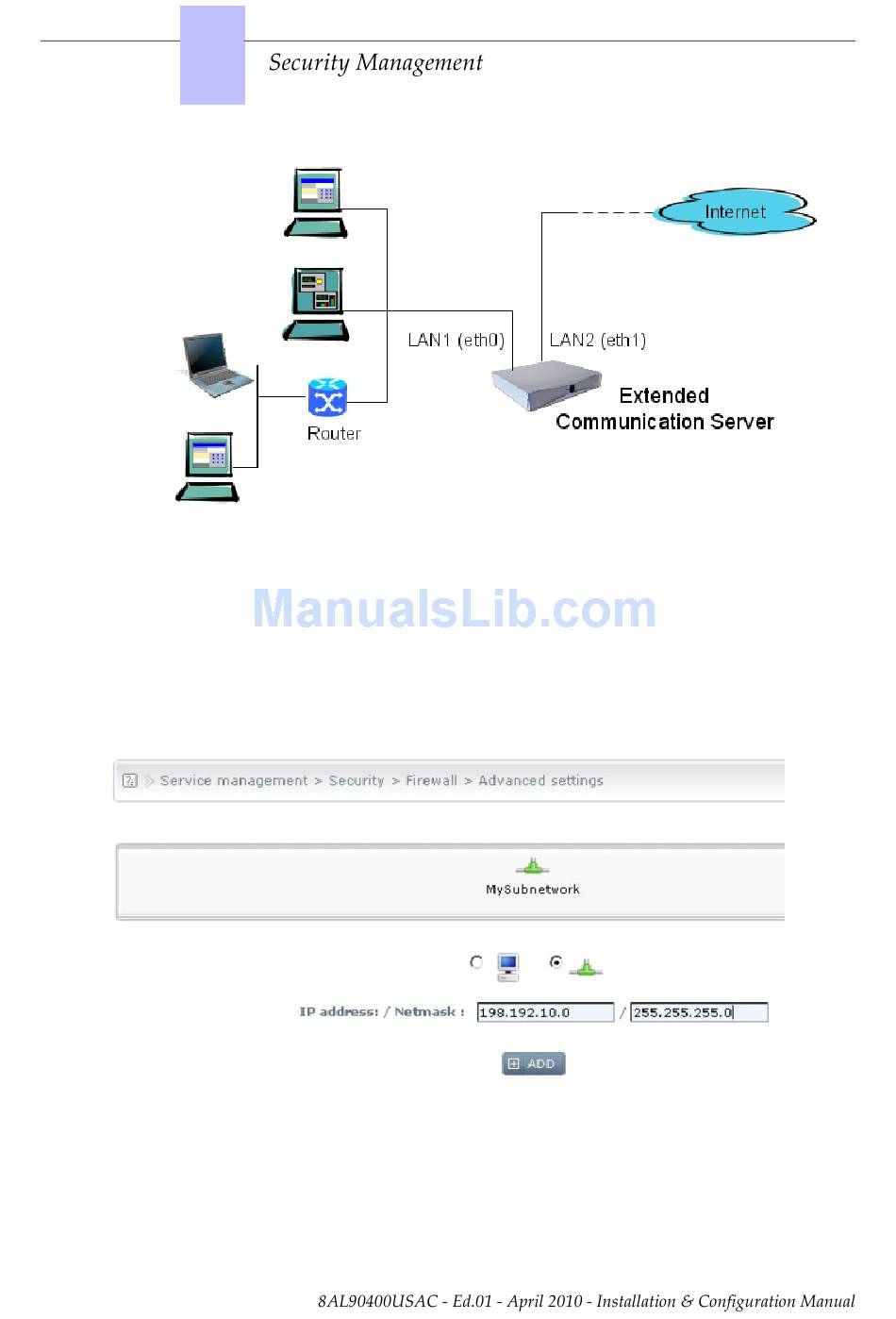

Figure 7.4: A LAN Including a Subnetwork
