ARS table configuration: configure the Extended Communication Server as the destination
Note:
The other ARS parameters are the same as for the fax server in the previous paragraph.
11.2.2.4 Miscellaneous
If USER A wants to send a fax to USER B, the public number is used by the Extended
Communication Server and the call is routed through the public network. It is possible to
re-route the call directly to the Extended Communication Server using the ARS table.
Private numbering plan: route the outgoing calls from the Extended Communication Server
through the ARS table (in the Extended Communication Server, the prefix for public calls is
configured with the value 0).
1. When the Extended Communication Server dials the public number of USER B, the
number -913304002- is replaced by 302 and re-routed to the Extended Communication
Server (note: 2 SIP channels are used)
11-12

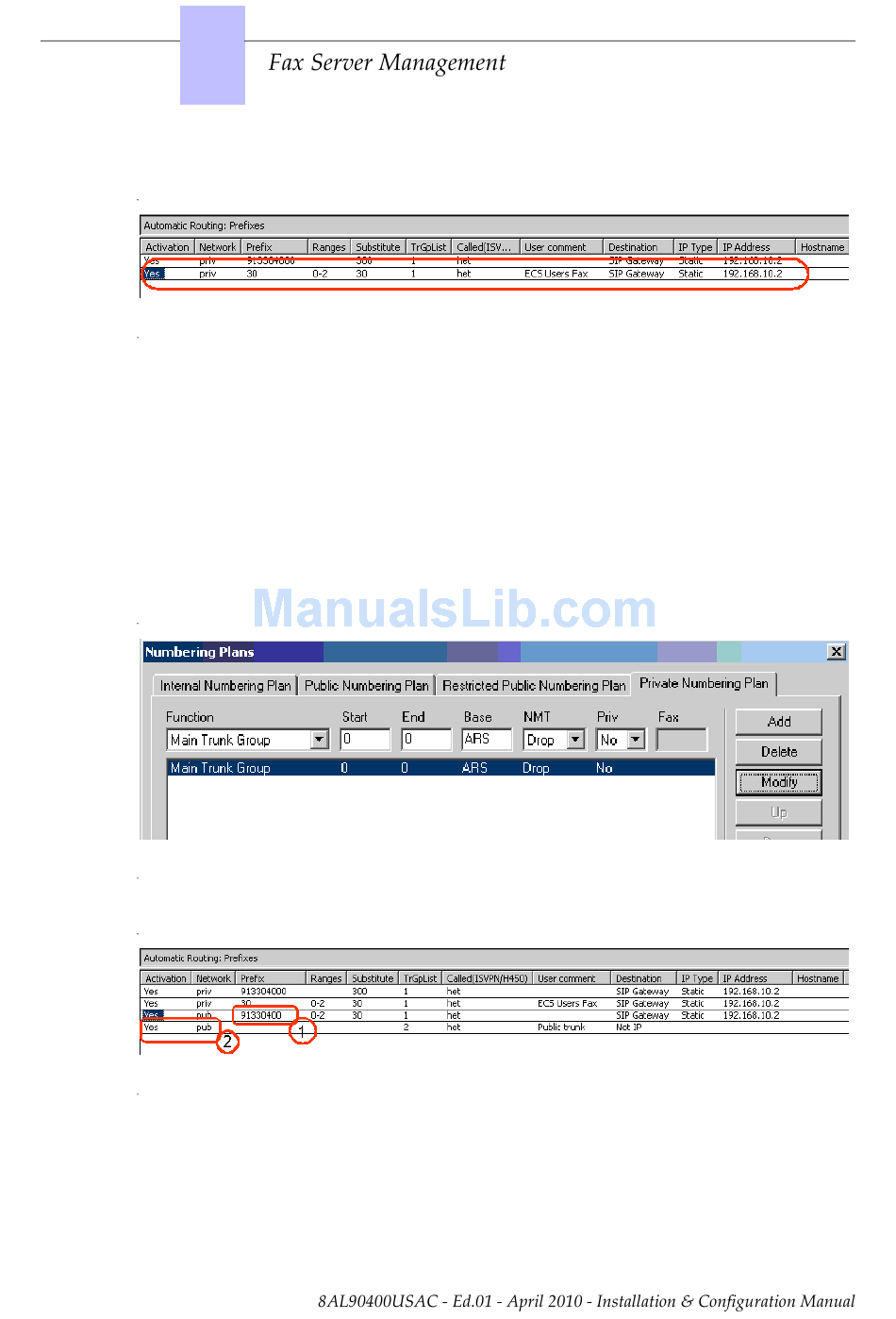

Figure 11.16: ARS Destination for Extended Communication Server
Figure 11.17: Private Numbering Plan
Figure 11.18: ARS Table Configuration
